CATV Distribution Hub Installation Guide

Page 11

3.6.

Installation Procedure

The CATV Distribution Hub is available in 8-port (500300, 500301) and 16-
port (500303, 500304) versions. In order to install the product, please follow
the steps below:

1. Perform steps 1 to 2 listed in the previous section.

2. Ensure that the power is turned off on CATV equipment.

3. Connect one (1) coax cable from CATV head end to the RF input on the

CATV Distribution Hub.

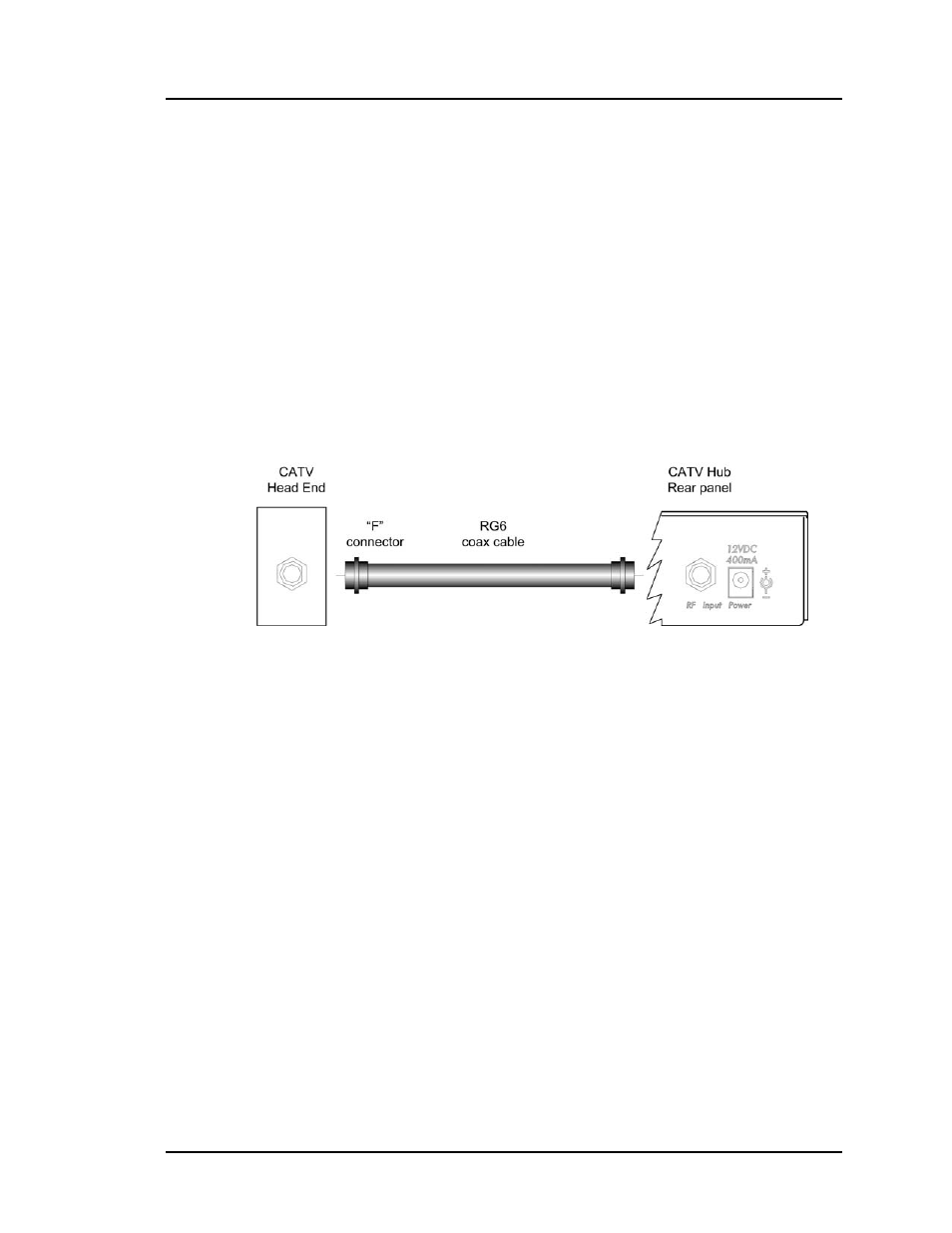

Figure 2: CATV Distribution Hub

4. Connect the external 12VDC power supply to the hub and plug the power

supply into an AC power outlet. If power is present, then the green power
LED will be ON.
