3. Verify that the distance between the CCTV IP PoE extenders is within MuxLab
specifications (see Specifications table).
4. To install the Network Side Device:
4a. Connect the extender to the PoE Ethernet Switch with a UTP Cable.
Note: If the Ethernet Switch is not PoE; you will need to connect a 56VDC
(40W) Power Supply to the Network Side Device.
4b. Connect one (1) length of RG59 or RG6 coaxial cable to the COAX
LINK connector on the Extender.
5. To install the Camera Side Device:
5a. Connect the extender to the camera with a Cat5e/6 cable.
Note: If the quality or length of the coaxial cable reduces the power to a level
that is insufficient to power the camera, you will need to connect a 48-56VDC
(40W) Power Supply to the Camera Side device.
5b. Connect one (1) length of RG59 or RG6 coaxial cable to the COAX
LINK connector on the Extender.

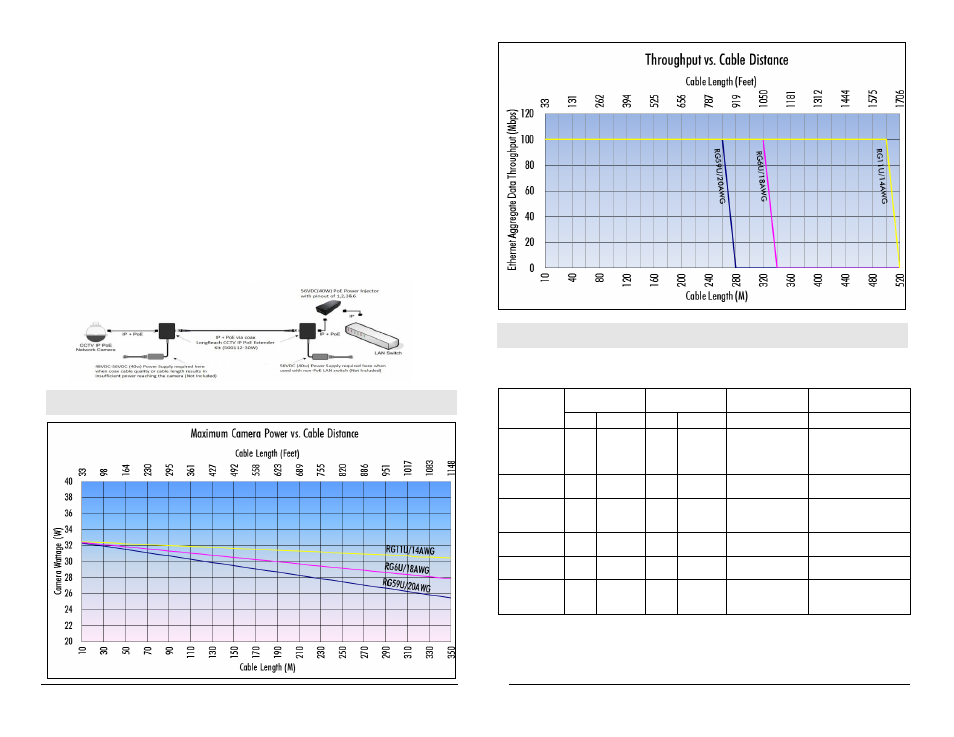

6. Power on the equipment and verify the image quality. The following is a diagram
of a typical configuration.
Tables
Troubleshooting
The following table describes some of the symptoms, probable causes and possible solutions
in respect to the installation of the LongReach CCTV IP PoE Extender Kit, 30W:
Symptom
Network Side
LEDs
Camera Side
LEDs
Probable Cause
Possible
Solutions
Power IP Traffic Power IP Traffic
No Image OFF OFF OFF OFF No power • Check if the Ethernet
switch is PoE.
• Check the power
connection.
No Image ON OFF OFF OFF Coaxial Cable • Check the coaxial
cables.
No Image ON OFF OFF OFF Distance • Check the coaxial
cables length and
quality.
No Image ON OFF ON OFF UTP Cable • Check the UTP Cable
pin out.
No Image ON ON ON ON No Traffic • Check network
configuration.
Choppy Image ON BLINK ON BLINK Distance • Check cable length
• Check the coaxial
cable quality.
If you still cannot diagnose the problem, please call MuxLab Customer Technical Support at
877-689-5228 (toll-free in North America) or (+1) 514-905-0588 (International).
