Muxlab CCTV IP Extender Kit User Manual

Specifications

background image

© MuxLab Inc.

94-000692-A

8495 Dalton Rd, Montreal, Quebec, Canada. H4T 1V5

Tel: (514) 905-0588 Fax: (514) 905-0589

Toll Free (North America): (877) 689-5228

E-mail: [email protected] URL: www.muxlab.com

Specifications

Environment

CCTV IP

Devices

CCTV IP cameras, NVR, IP encoder, network switch and any device
with a 10/100Mb/s Ethernet port, supporting IP.

Standard supported

Ethernet side:
IEEE 802.3 10BaseT,
IEEE 802.3U 100Base-TX,
IP ver 4 and 6.
Line side: VDSL-DMT:
ITU-T G993.1 VDSL, ITU-T G997.1,
G.993.2 VDSL2 (profile not selectable).

Maximum distance vs.
speed between unit
(higher speed on camera
side)

Asymmetric speed, using twisted pair* and coax*:
1000ft (330m): 44/31Mbps, 44/31Mbps
2000ft (660m): 34/21 Mbps, 44/28 Mbps
3000ft(1000m): 28/10 Mbps, 39/26 Mbps
4000ft(1350m): 22/5.3 Mbps, 39/21 Mbps
5000ft(1600m): 17/1.2 Mbps, 31/14 Mbps
* The actual data rate will vary on the quality of the copper wire and
environment factors.

Cable between unit

Coax 75 ohm/RG59 or twisted-pair telephone wire AWG24 or better.

Cable for Ethernet port
(Not included)

Two CAT 5/5e/6 UTP cables are required (straight or crossover), up to
330ft(100m).

Indicators
(on both unit)

Power on.
Link/nego between the two unit working.
Ethernet: 10/100 Mb indicator.
Ethernet: Activity.

Ethernet Connectors
(on both unit)

One isolated BNC 75 ohm female to connect remote unit.
One isolated RJ45 to connect remote unit.
One or two RJ45S with LED’s for Ethernet with auto reversal.
One power connector, 2mm.

Pin Configuration to
connect the two unit

(polarity insensitive)

Using RJ45 plug: Pin 4 & Pin 5 (1 pair required only, blue and
white/blue)
Using RJ11/RJ12 plug: Pin 3 & Pin 4 (1 pair required only, blue and
white/blue)
Using BNC: 75 ohms coax cable: Center & Shield (shield is isolated
from chassis)

Power Supply
(Included)

Two 100-240V/5VDC 1.2A power supplies with interchangeable
blades for NA, Europe and UK.

Power Consumption

3.25 Watts each unit

Temperature

Operating: 0° to 60°C Storage: -55° to 85°C
Humidity: Up to 95% non-condensing

Enclosure

Plastic

Dimensions

4.50” x 3.00” x 1.25” (11.4 x 7.6 x 3.2 cm)

Weight

Approx. 1 lb. (0.5 kg)

Compliance

Regulatory: FCC, CE, RoHS

Flammability: 94V0

Warranty

2 years

Ordering Information

500110

CCTV IP Extender Kit.

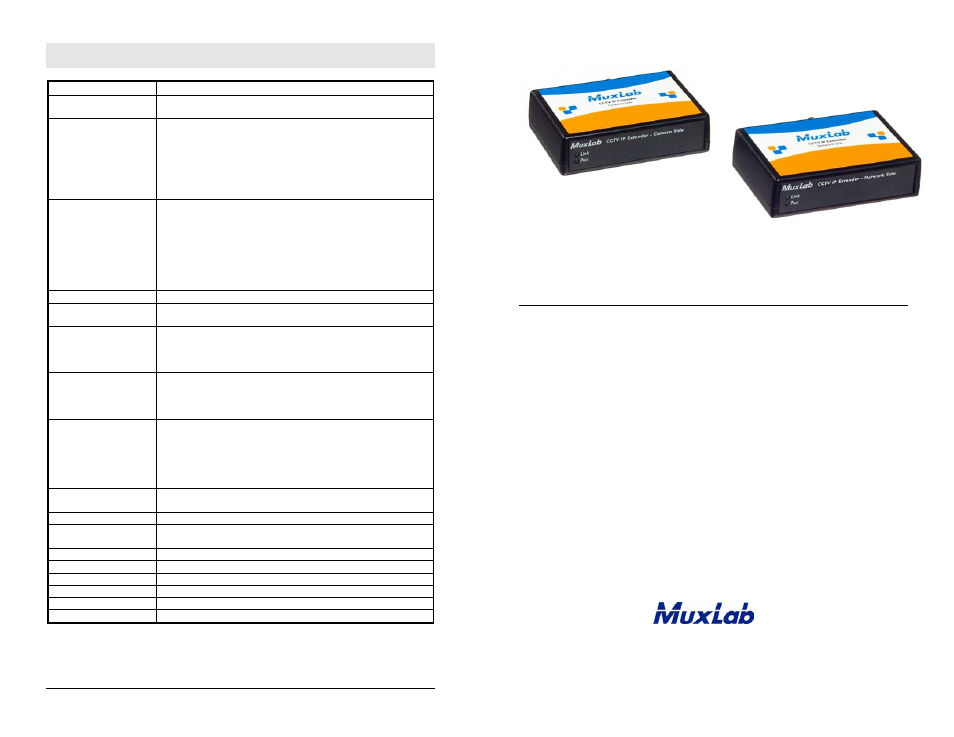

CCTV-IP Extender Kit

500110

Quick Installation Guide

Overview
The CCTV-IP Extender Kit (500110) allows IP camera equipment (or any other IP
equipment) to be connected up to 1 mile (1600 m) using one coax cable with BNC or
one Cat 5/5e/6 unshielded twisted pair cable in a point-to-point configuration. The
maximum distance is dependent on speed required, type and length of cable. The kit
comes with one transmitter (camera side), one receiver (network side) and two identical
wall-mount power supplies. The camera side can accept one or two IP-cameras without
an additional Ethernet switch/router.

Applications
Applications include Surveillance IP-camera, digital signage and information systems.
