Muxlab VGA Balun Kit User Manual

Specifications, Installation

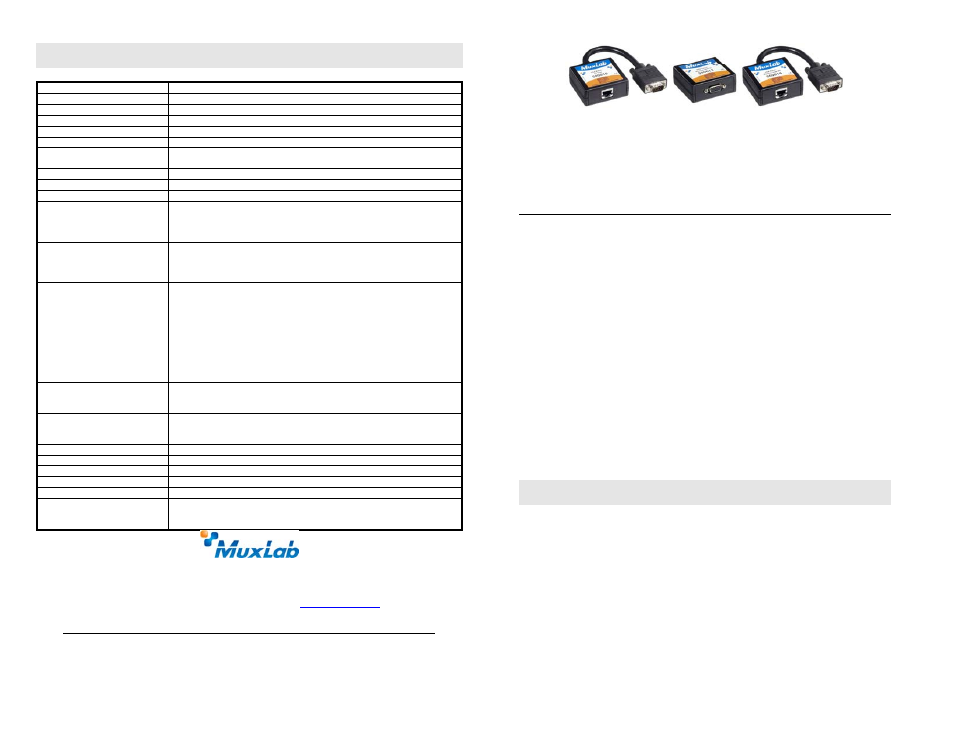

background image

© MuxLab Inc.

Specifications

Environment

VGA. VESA VP&D 1.0, VIP ver 2.0.

Devices

VGA monitors, laptops, LCD projection screens, PCs.

Transmission

Transparent to the user.

Bandwidth

DC to 60MHz

Input Signals

Video: 1.1Vp-p. Horiz & Vert Sync: TTL standard. 300kHz max. bandwidth

Insertion Loss

Less than 3 dB per pair over the frequency range.

Common Mode Rejection
(CMMR)

15kHz -60dB max. 100kHz to 10MHz -40dB max.
100MHz -20dB max.

Video Signal Return Loss

-15dB max from DC to 60MHz

Video Differential Gain

+/- 2%

Video Differential Phase

+/- 2%

Connectors

RJ45 shielded
500010: DB15 HD Plug & 6” lead (Connects to VGA output of PC)
500011: DB15 HD Receptacle (Connects to VGA input of monitor)
500014: DB15 HD Plug & 6” lead (Connects to VGA input of monitor)

Max. Distance via Cat 5 UTP

640x480 pixels (15MHz) : 450ft (137m)
800x600 pixels (30MHz) : 350ft (107m)
1024x768 pixels (60MHz) : 250ft (76m)
1280x1024 pixels (100MHz): 200ft (61m)

RJ45 Pin Configuration
Reverse Polarity Sensitive

R Video (Red) Pin 1 (+) Pin 2 (-) Balanced
G Video (Green) Pin 4 (+) Pin 5 (-) Balanced
B Video (Blue) Pin 7 (+) Pin 8 (-) Balanced
Horiz Sync Pin 3
Vert Sync Pin 6
Horiz. & Vert Sync Return: STP cable: Shield. UTP cable: NC
+5VDC Not connected
ID0 Not connected
SDA Not connected
SCL Not connected

Cable

In order to ensure a common signal ground between the VGA Baluns, shielded
Cat5 twisted pair (STP) cable terminated on shielded RJ45 plugs at both ends is
highly recommended.

Impedance

Input: RGB 75 ohms (DB15 HD) Unbalanced
Output: RGB 100 ohms (RJ45 shielded) Balanced
Horizontal and vertical sync: TTL standard

Temperature

Operating: 0 to 55 C. Storage:-20 to 85 C. Humidity: up to 95% non-cond.

Enclosure

ABS fire retardant plastic

Dimensions

2.40” x 2.25 x 1.00”

Mounting

Freestanding. Separate Velcro mounting pad included

Warranty

Lifetime

Order Information

500010

VGA Balun, PC Side, DB15HD Plug

500011

VGA Balun, Monitor Side, DB15HD Receptacle

500014

VGA Balun, Monitor Side, DB15HD Plug

8495 Dalton Road, Mount Royal, Quebec, Canada, H4T 1V5

Tel.: (514) 905-0588 Fax: (514) 905-0589

Toll Free (North America): (877) 689-5228

E-mail: [email protected] URL:

www.muxlab.com

94-000281-E

SE-000201-E

VGA Balun

(500010, 500011 & 500014)

Quick Installation Guide

Overview
The VGA Balun allows VGA video signals to be transmitted up to 450ft (132m) via 4-pair Cat
5 twisted pair cable for more cost-effective and more versatile cabling. Used in pairs, the VGA
Balun eliminates costly and bulky VGA cable, allowing VGA monitors to be connected at
extended distances from the PC via standard Cat 5 twisted pair cable. Used in pairs, one VGA
Balun (500010) connects to the VGA source (ie; output) and one VGA Balun (500011 or
500014) connects to the VGA destination (ie; monitor input). The VGA Balun transmits the
RGB video, horizontal and vertical synchronization pulses. Since the VGA Balun is a passive
device and uses only 8 wires, it does not support VGA handshaking/control signals.

Note:
CAT5E/6 SHIELDED TWISTED PAIR CABLE (STP) IS REQUIRED

In case Cat5e/6 unshielded twisted pair cable (UTP) is used, please order instead:
VGA Balun II: 500040/41/42/43
VGA Balun II Kit: 500040-42-PK
VGA Wall Balun II: 500041-WP-US/43-WP-US/41-WP-UK/43-WP-UK

Applications
The VGA Balun allows pre-existing twisted pair cable to be used in such applications as
classroom video distribution, overhead projector systems, PC-training systems, and tradeshow
PC-demo systems.

Installation

To install the VGA Balun, perform the following steps:

Caution: Do not attempt to open the housing. There are no user-serviceable parts inside
the VGA Balun. Opening the unit will void your warranty.

1.

In order to ensure reliable signal continuity between the equipment, it is
recommended to use shielded twisted pair (STP) cable terminated with shielded
RJ45 connectors.

2.

Since the VGA Balun does not support VGA handshaking and control signals it is necessary to
set the monitor attributes prior to installing the VGA Baluns. In order to do this, first connect
the standard VGA cable directly from the PC to the monitor and then set the monitor attributes
to the required settings (ie; resolution, color, etc). Also, in order to achieve optimum results via
twisted pair, set the Contrast and Brightness levels to maximum.
