Muxlab LongReach II Active CCTV Receiver Balun User Manual
Page 15
© MuxLab.
LongReach II Active CCTV Receiver Balun Installation Guide
Page 15

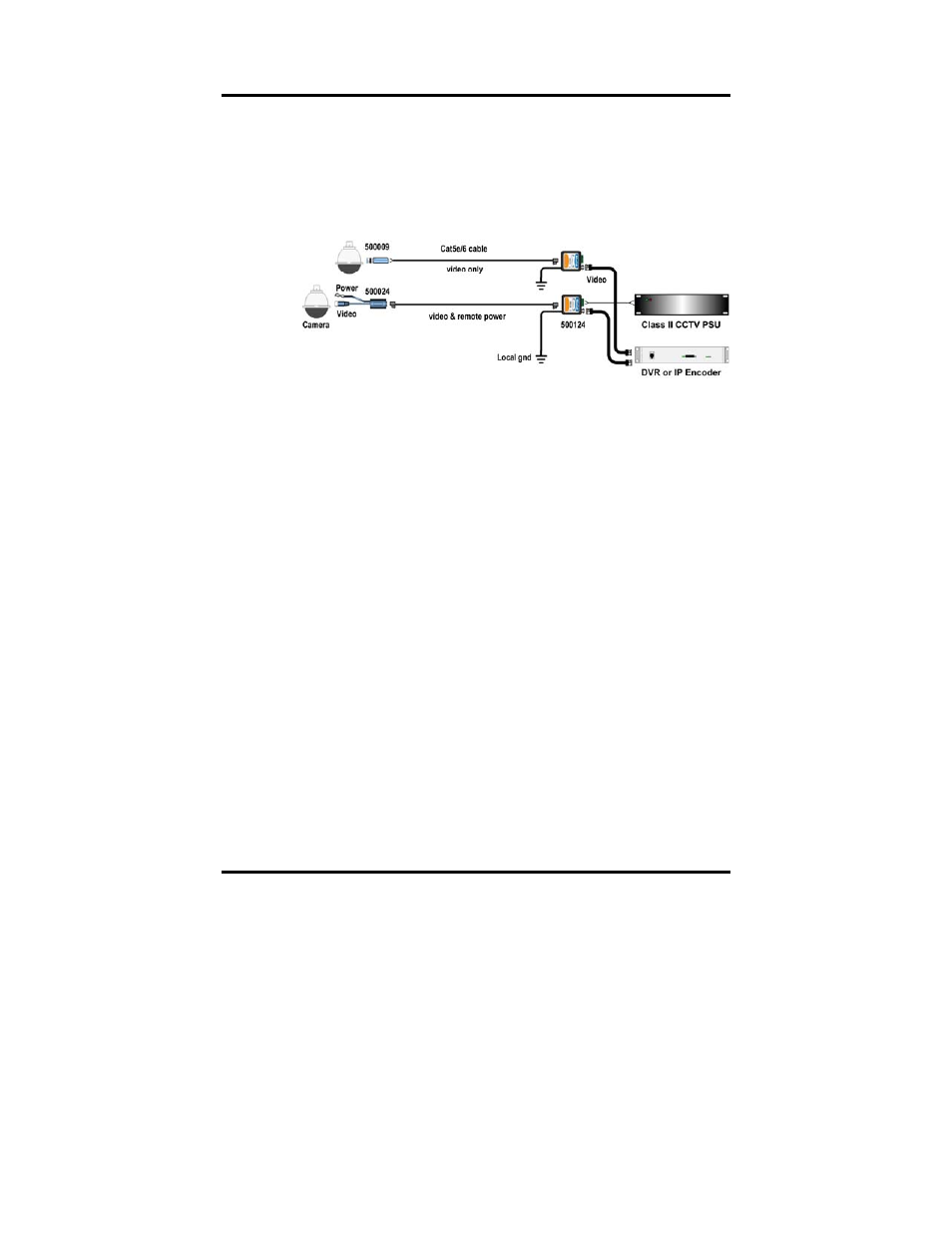

12. The following diagram illustrates a typical
configuration.
13. The 500124 is equipped with resettable fuses to
protect the circuitry. In the event of a power surge,
the fuse(s) will trip and the green LED will dim. In
order for the fuse(s) to reset, the power to the
500124 must be turned OFF for 2-3 minutes. The
fuse(s) will then reset and the power can be turned
on again.
