Rivera Primo SU Sportster KIT 1041-0064 - Manual (Page 8)

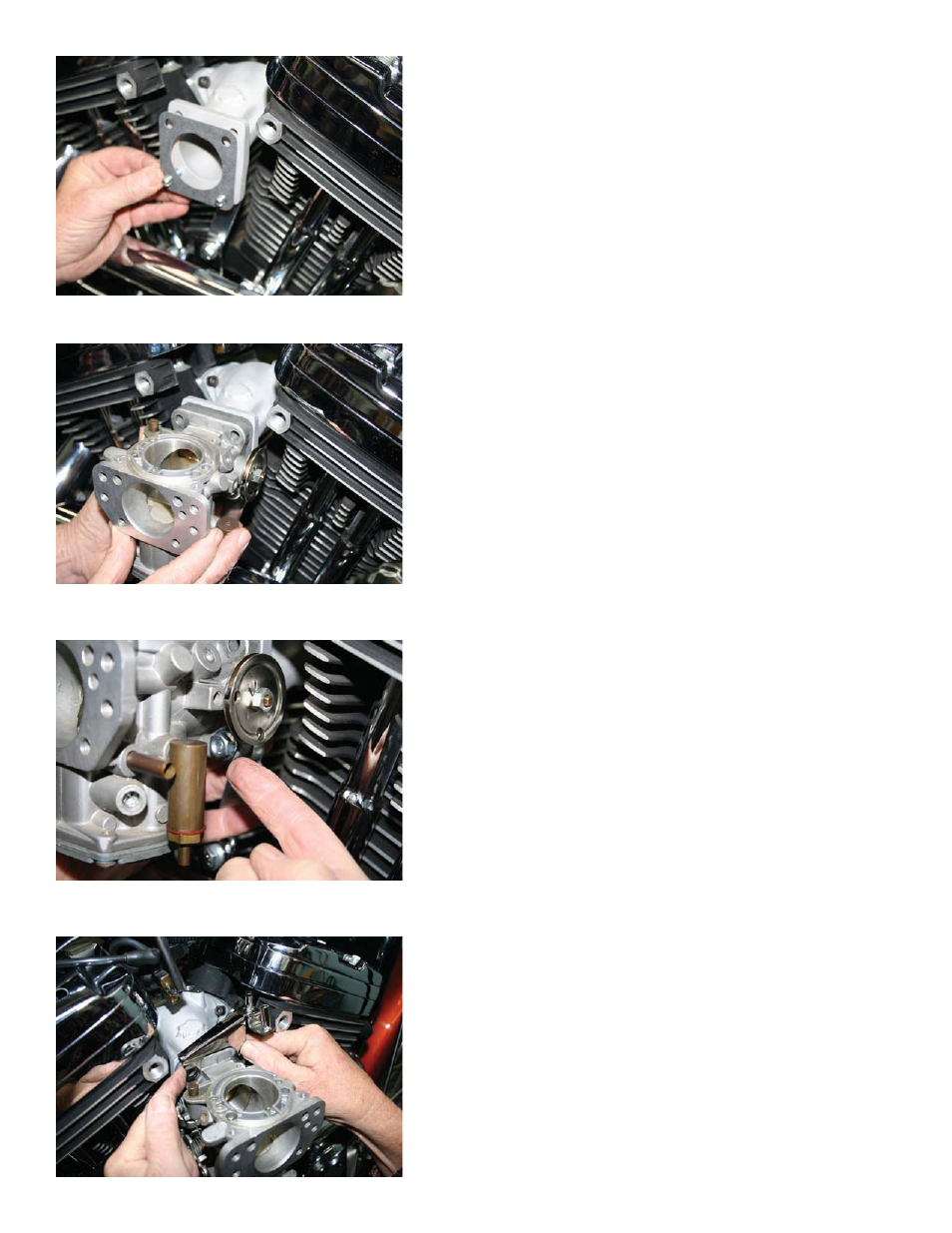

Place throttle cable guide (1042-0003) in front of the carb
body, flat side up lined up with the two top bolt holes.
Hang the carb intake gasket (1094-0015) on the two bolts
already in place on the manifold to carb flange.
Use a locking flange nut (1100-0034) to secure both lower
bolts on the manifold to the SU carb body.
Now line up the SU carb body with the two lower bolts on
the manifold flange and slide into place.
26
29
28
27
