INSTALLATION INSTRUCTIONS FOR
PP-106-3 AND PP-106-5 (CLUTCH COVER)
The PP-106-3 or 106-5 clutch covers install
directly onto the clutch hub studs and replace
the steel pressure plate. The cover must be
tightened down to compress the clutch
springs the same as the pressure plate would
approximately 3 full turns. Measure the edge
of the PP-106-3 or 106-5 at three different
places to ensure that the cover is tightened
down equally for best clutch operation.
PRIMO BELT DRIVES 12450 Whittier Blvd WHITTIER, CA 90602
(562) 907-2600 FAX (562) 907 2606 E-mail [email protected]

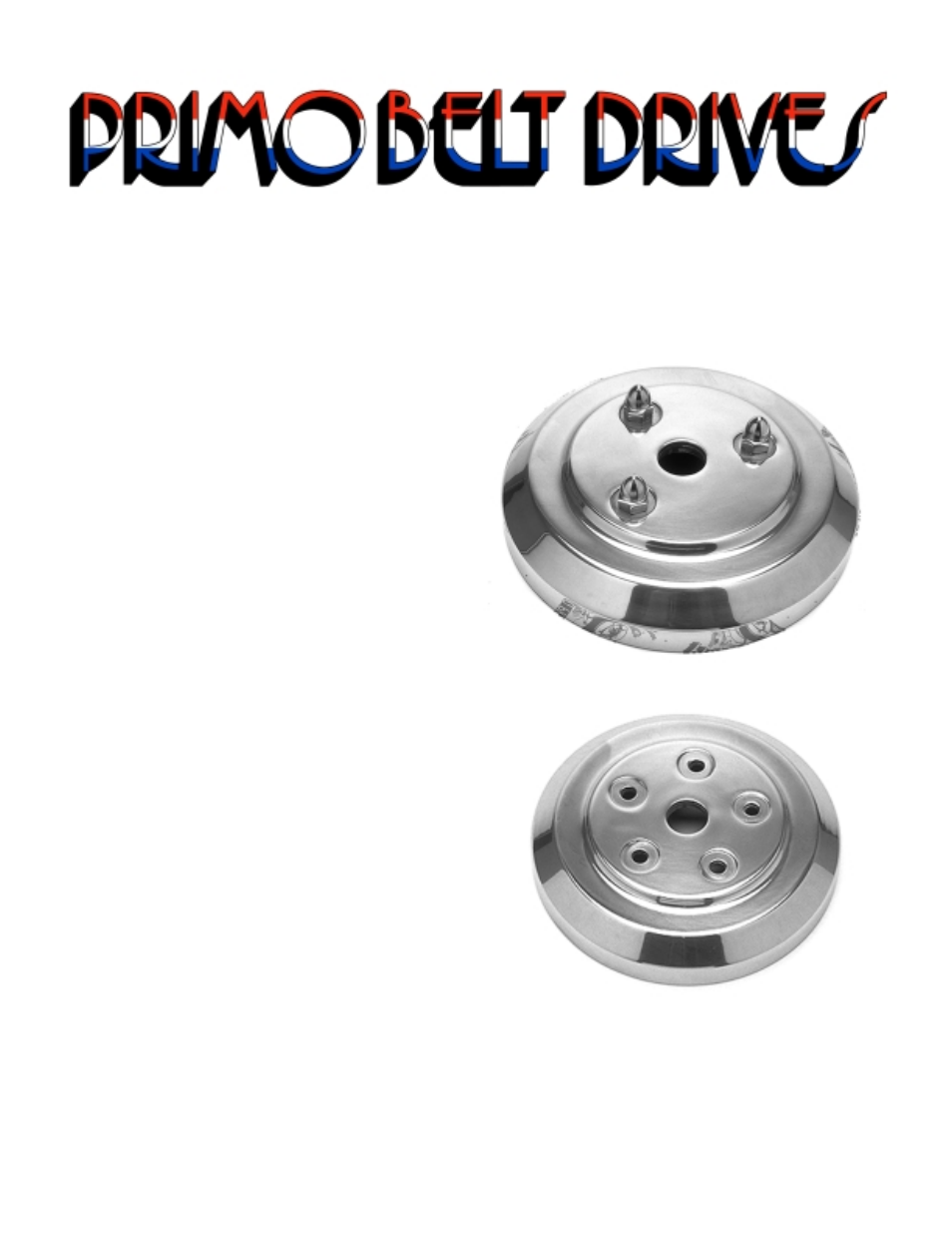

PP-106-3
Improve the appearance of your open primary clutch by installing show-polished clutch dome. The dome protects pantleg from the spin-
ning clutch.
PP-106-3 ...3 fingered clutch hub (polished) PP-106-5 ...5 fingered clutch hub (polished)
PP-106-5
