D E S C R I P T I O N A N D C O N N E C T I O N S
PA G E 6 A M I S - D M A 1 I N S TA L L AT I O N & O P E R AT I O N M A N U A L
3.1 Command description

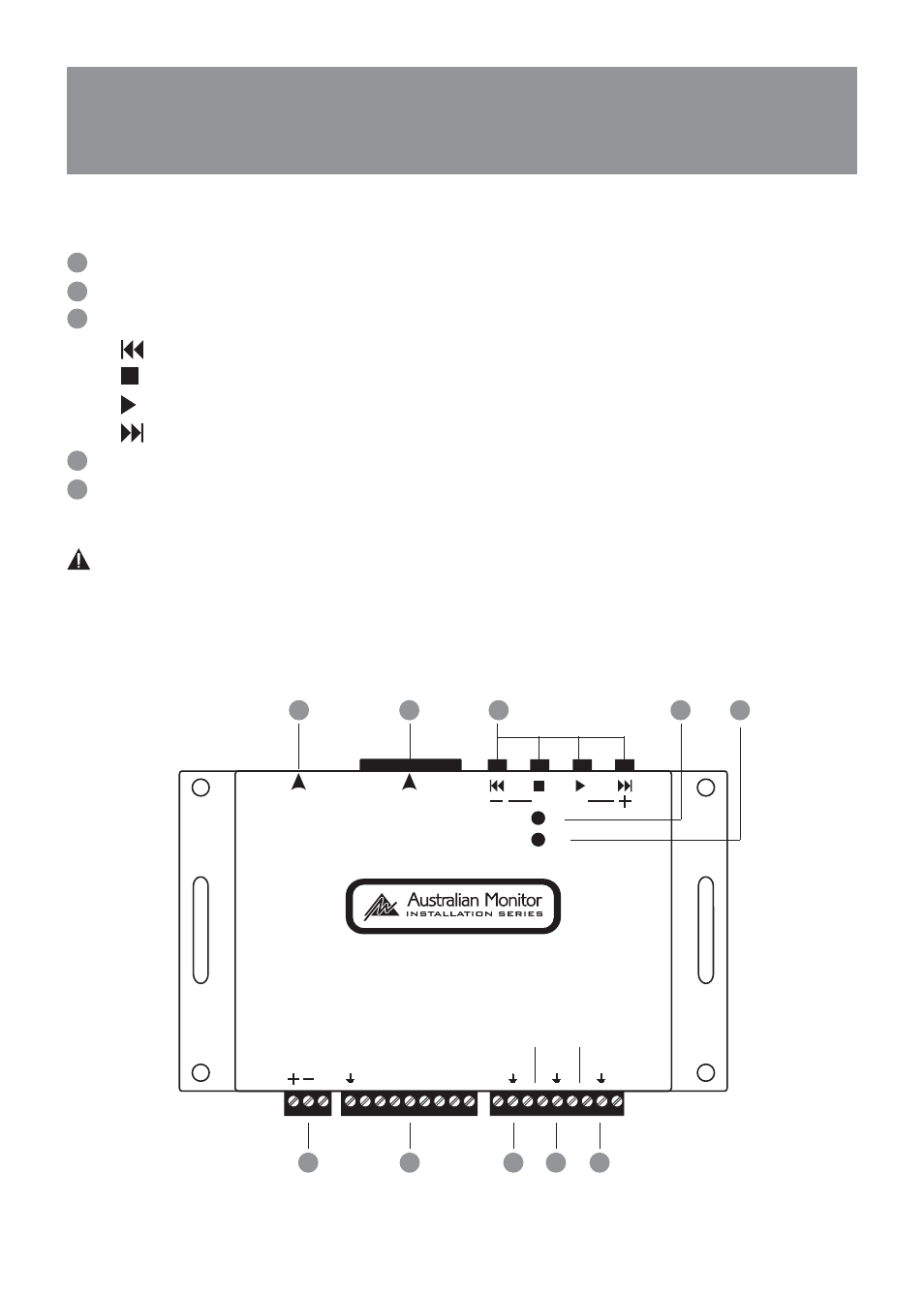

Connector for external connection of memory and command buttons
Flash memory slot for Secure Digital or MultiMedia Card
Command keys:
= (brief pressure) previous MP3 fi le / (prolonged pressure) reduce output volume
= STOP
= PLAY
= (brief pressure) next MP3 fi le / (prolonged pressure) increase output volume
Red LED: lit = device is on
Green LED: lit = MP3 fi le playing;
blinking = DMA1 in pause/STOP.
IMPORTANT!
• Volume control via the keys is only possible during the playing of an MP3 audio fi le
• Pressing STOP during playing causes the DMA1 to pause, until reactivation with
the PLAY key. This condition is indicated by the blinking green LED
