S E R I A L R S 4 8 5 C O M U N I C AT I O N

PA G E 2 9

A M I S - D M A 1 I N S TA L L AT I O N & O P E R AT I O N M A N U A L

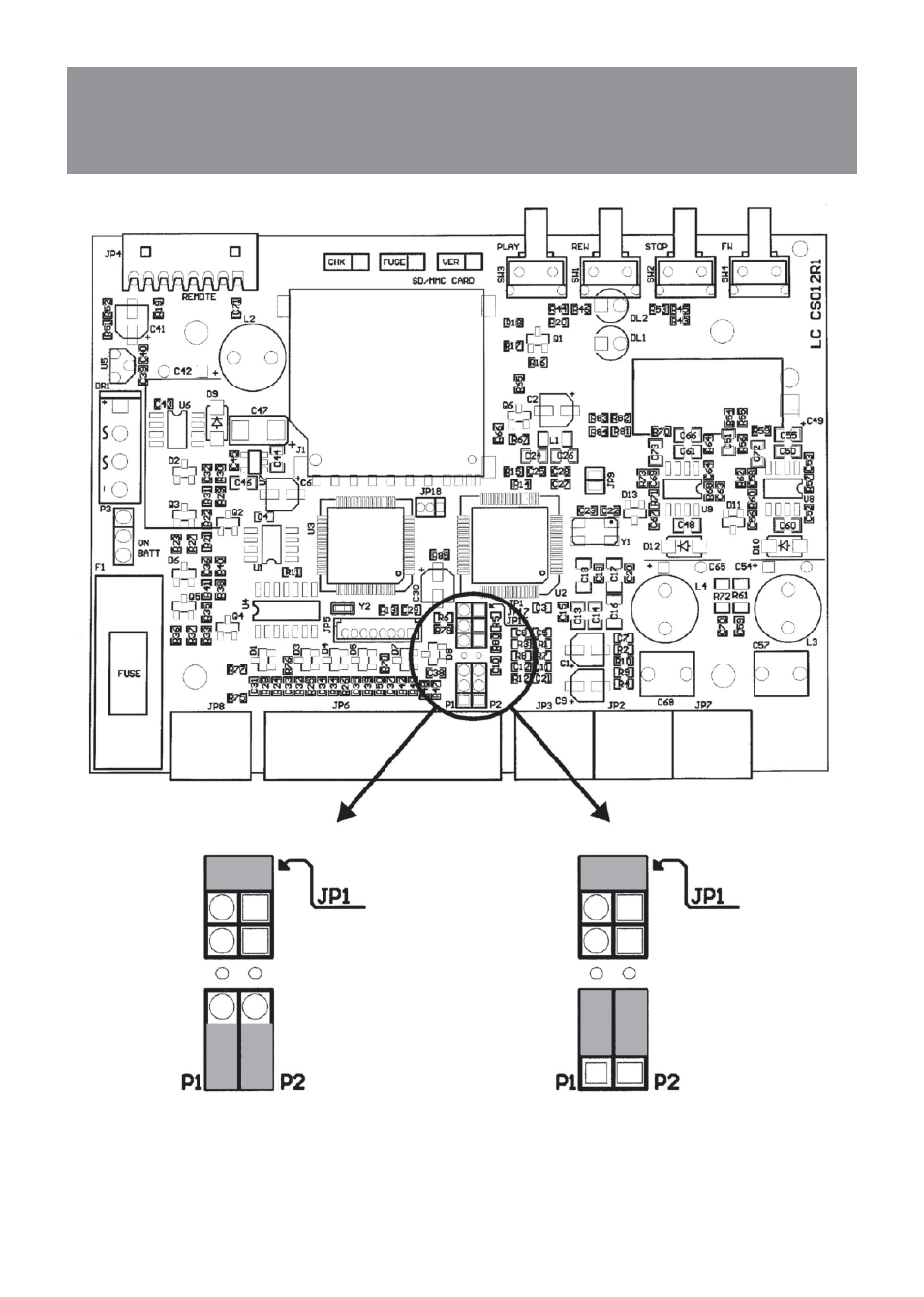

Position P1 and P2 jumpers: IN5 and IN6 inputs with logic
operation. (Default

Position P1 and P2 jumpers: IN5 and IN 6 inputs enabled to the
operation as RS485 serial port. To move the bridges, remove
the cover of the device and move the jumpers of the board as
indicated in the fi gure
