Australian Monitor DigiPage User Manual

Page 9

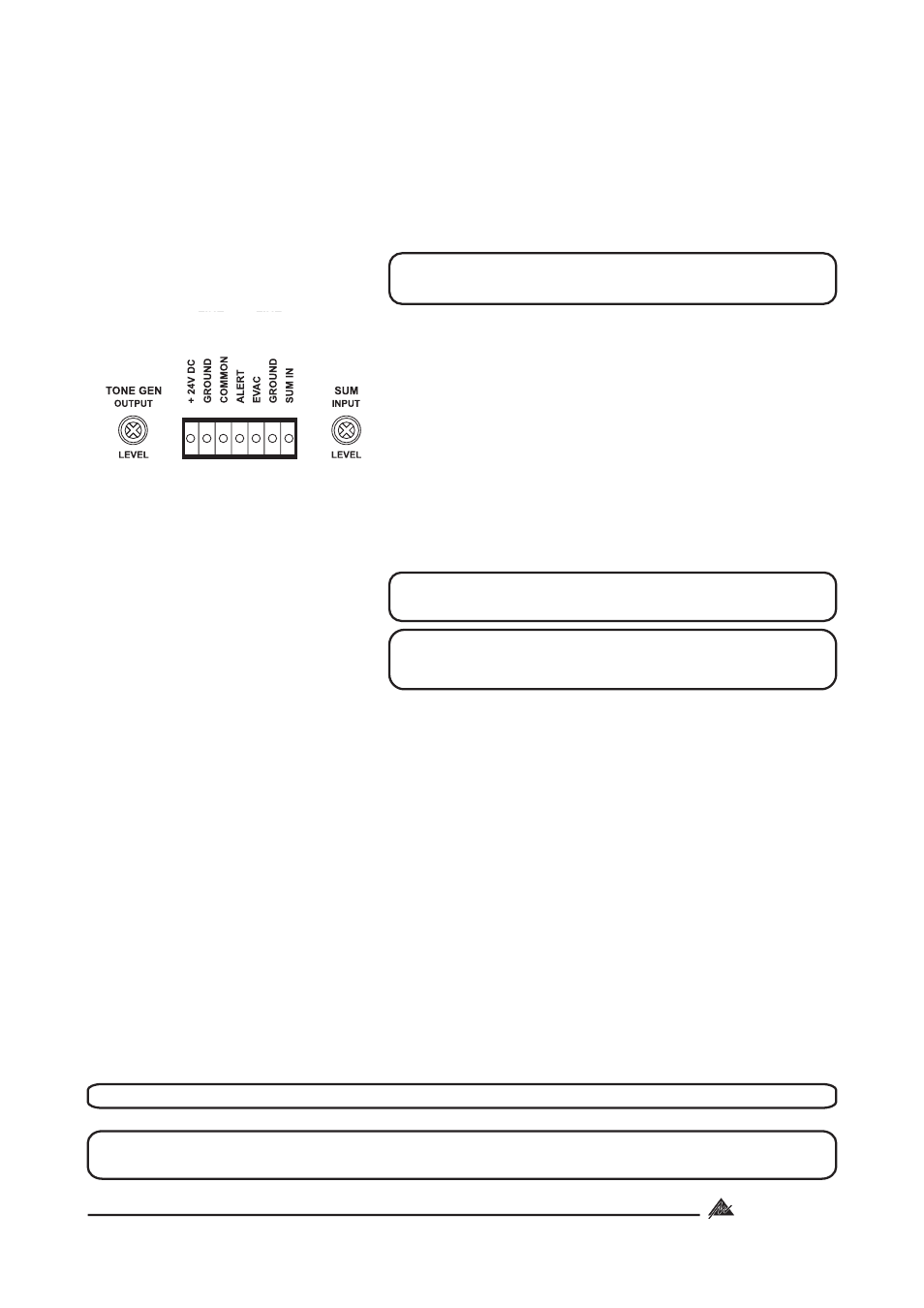

3 EUROBLOCK CONNECTOR

24V DC / GROUND

ALERT/EVAC/COMMON

GROUND/SUM IN

SUM INPUT LEVEL

TONE GEN OUTPUT LEVEL

This input pair is for connection to a 24VDC
emergency power supply and is not switched by
the front panel power switch.

These connections are used to trigger the
internal tones. Only one tone can be triggered
at a time. Triggering occurs by connecting the
ALERT or EVAC terminal to COMMON.

This is an unbalanced line level input which may
be used for emergency priority signals. It feeds
all zone outputs independent of output level
settings and page enable status.

This recessed trimpot sets the level of the sum input.

This recessed trim pot controls the output level of the
tones and the pre-annouce chime.

4a CAT 5 RUN 1

4b CAT 5 RUN 2-4

This RJ45 input accepts the CAT5 cable coming from the priority paging microphone
station. See ‘Installation’ on page 12 for more information. If you would like to have a
paging station set as a priority over all other paging stations, then it must be connected to
this RJ45 socket and no other stations may use this connector or the run that it is on. The
paging station also needs to be set up as a priority station (see Paging Station section).

These RJ45 inputs accept the CAT5 cables coming from the Paging Stations. See page
12 for more information.

NOTE:

These are

Ethernet connections.

NOT

INSTALLATION SERIES

Australian Monitor

NOTE:

Connecting and disconnecting these inputs while the unit is on may
cause the unit to lock up requiring system power to be cycled.

NOTE: The 24V DC input does not provide a

trickle-charge facility.

NOTE: Signal on the SUM IN will cause other signals

to be muted.

NOTE: The muting by the SUM IN remains active

for 3sec after the input signal is removed.
