Remote loopbacks, Test patterns, Remote loopbacks test patterns – ADTRAN Cable T1 ESF CSU ACE User Manual

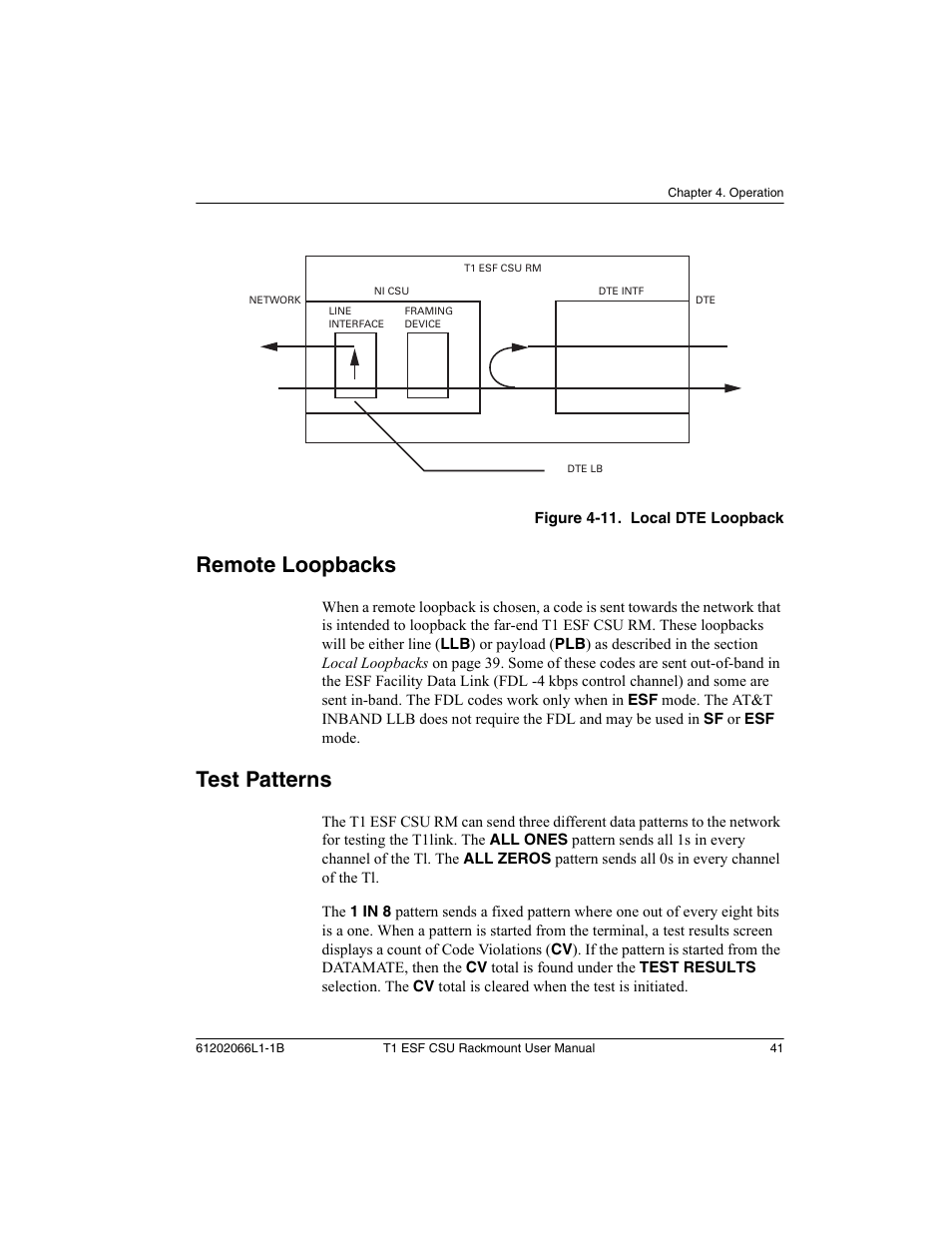

Page 41: Figure 4-11. local dte loopback
