Edsal MR1848 User Manual

Page 2

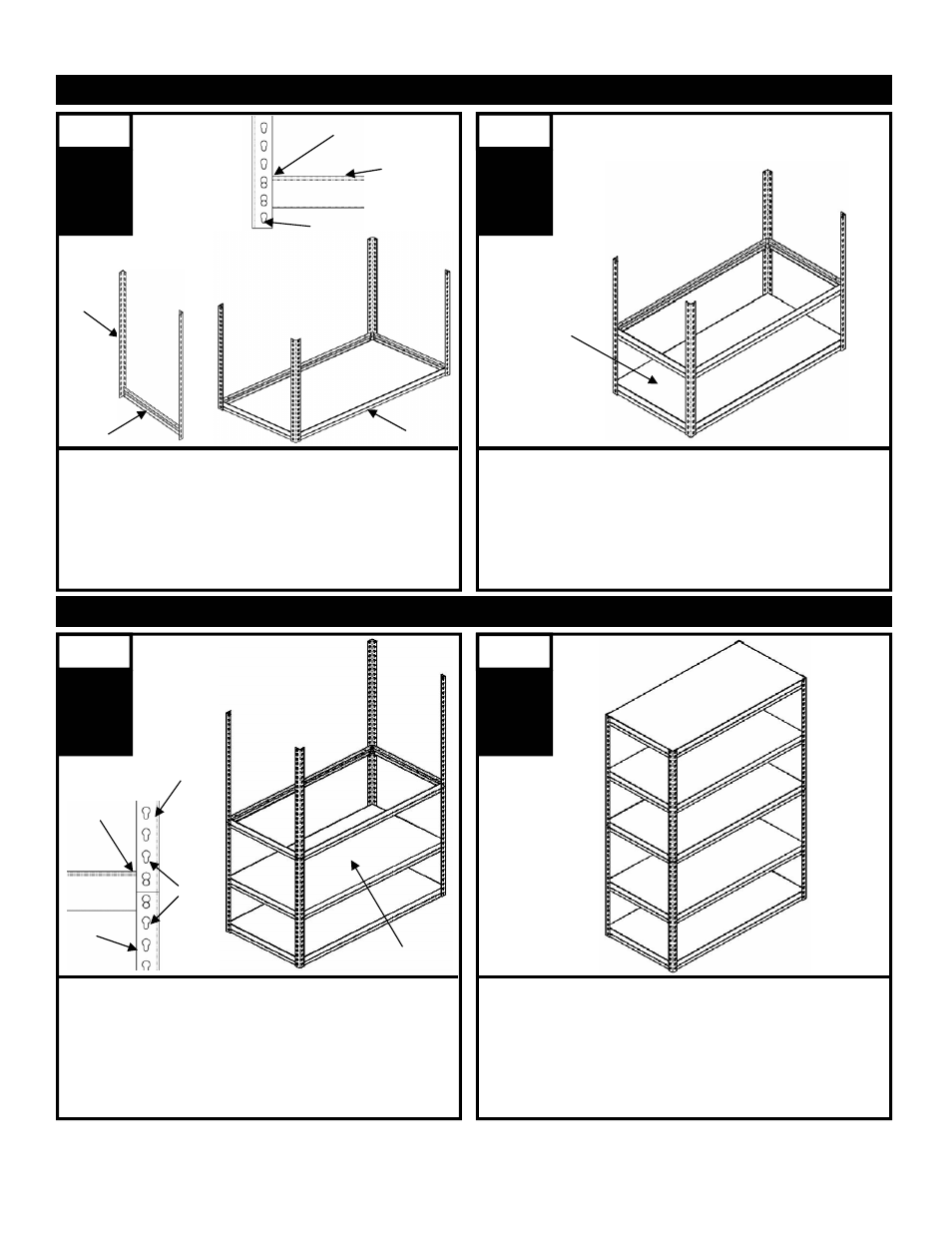

Assemble two (2) post with one (1) brace. Skipping one slot
from the bottom of the post (see figure A), place the rivets
into post with the slot pointing down, and with the shelf ledge
of the brace facing up (see figure B). Tap lightly to seat riv-
ets. Repeat with two (2) post and one (1) brace. Assemble
the two (2) post units with two (2) beams (see figure C). Skip
one hole from the bottom of post, tap lightly to seat rivets.

Assembly Instructions for MR185

MR245

MR1848

Start by adding a wood shelf to the level previously built,
then continue working by adding the second level using
two (2) beams and two (2) braces in the post slots of
your desired location. Again place the rivets of the
beams and braces into the post slots with the shelf
ledge facing up and tap lightly to seat the rivets.

IMPORTANT NOTE : Make sure all rivets are fully seated into the post slots.

Add a wood shelf to the previously built level, then as-
semble the top post to the bottom post by using two (2)
beams and two (2) braces. One (1) rivet from each beam
and brace must be placed in the top hole of the bottom
post, and the bottom hole of the top post (see figure D).
After all beams and braces are in place, tap lightly to
properly seat the rivets.

Add a wood shelf to the previously built level, then con-
tinue by adding the fourth and fifth level to the unit using
two (2) beams and two (2) braces per level. Tap lightly to
properly seat the rivets and add the final wood shelves to
the unit.

Step

Figure A

Figure B

Figure C

Shelf Ledge

Brace

Post

Wood Shelf
