Smart-UPS RT 15000/20000 VA 230 Vac Stack/Rack-Mount 6U User Manual

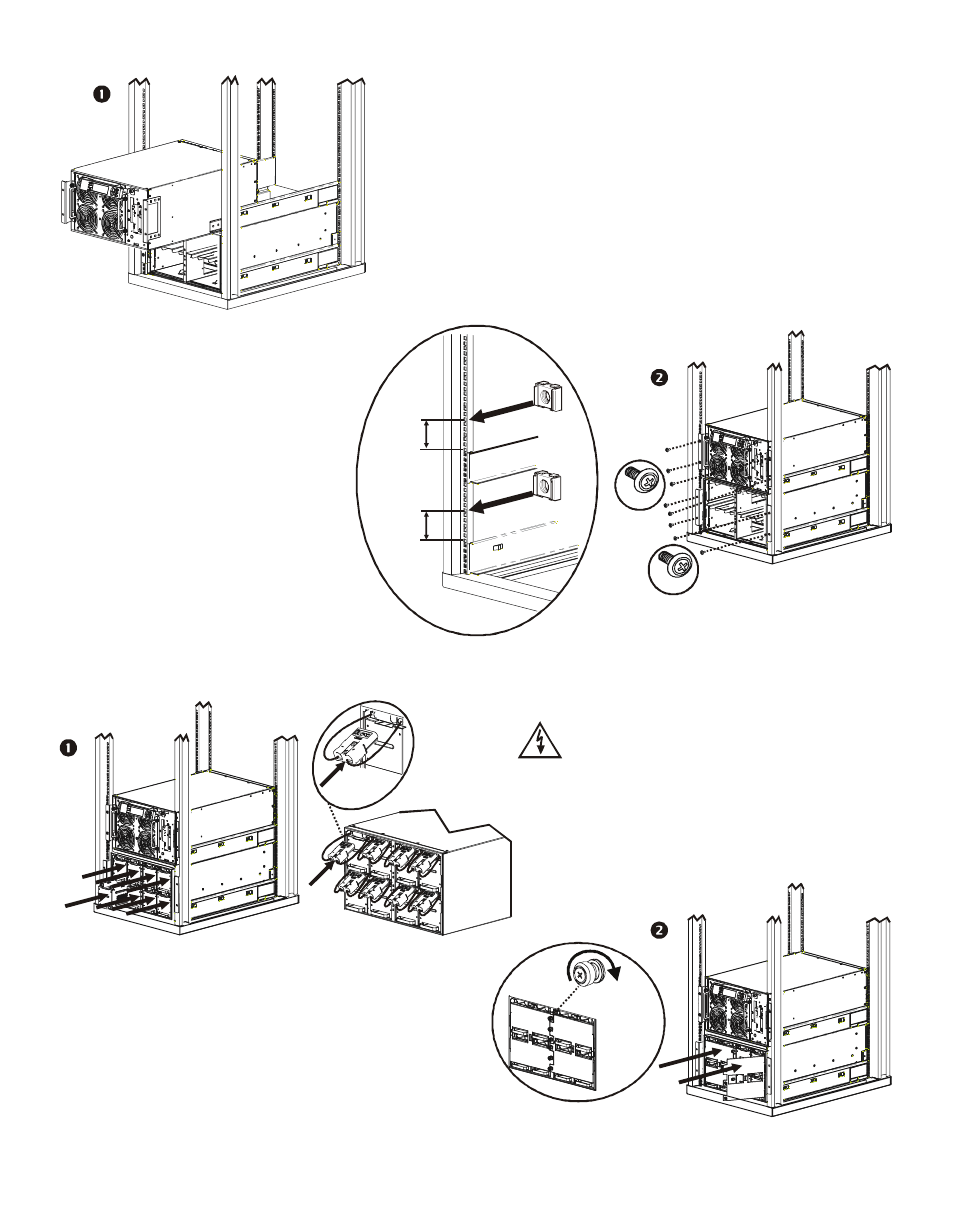

Install units in rack

Secure the UPS and the XLBP in the

rack using the cage nuts and

ornamental screws included in the

package.
Four ornamental screws and two cage

nuts must be used to secure each unit.
A cage nut must be used in the top

hole of each rack-mount bracket when

securing the unit in the rack.
The bottom hole of each rack-mount

bracket can be secured using an

ornamental screw in the threaded hole.

Replace the battery doors.
Tighten the screws to secure the battery doors.

Install and connect battery modules

Connect all eight battery modules.

Failure to do so may cause equipment

damage.

7 holes
