Installation – American Power Conversion RT XLI/XLICH User Manual
Page 7

Smart-UPS RT 15000/20000 VA 230 Vac Stack/Rack-Mount 6U User Manual
3
Installation

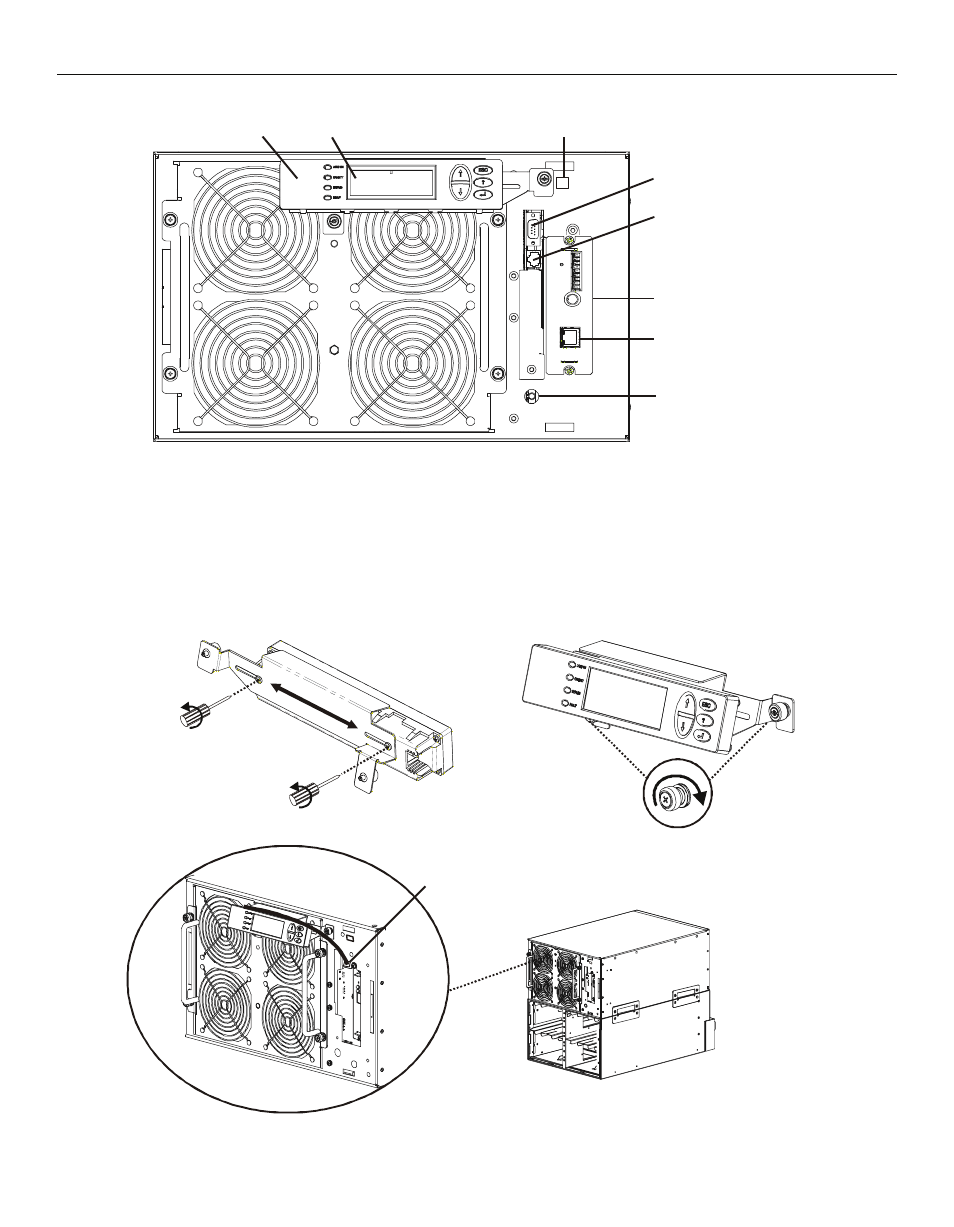

Stack or rack-mount front panel
PowerView installation for stack or rack-mount configurations
Prior to attaching the PowerView to the UPS:
1. Loosen the two bracket screws on the back of the PowerView module.
a. Slide the bracket to the position that will accommodate the screw holes on the UPS.
b. Tighten the screws on the bracket.
2. Secure the PowerView to the UPS using the two thumb screws attached to the PowerView.
PowerView
Cold Start/EPO Reset
SmartSlot with Network
Management Card
PowerView Cable Connector
Serial Port
Interface Display RJ45 Connector (pass through to rear panel RJ45 connector)
Ethernet port 10/100 Base-T
Connect the PowerView cable to the PowerView connector
on the UPS.
