6
Smart-UPS RT 15000/20000 VA 230 Vac Stack/Rack-Mount 6U User Manual

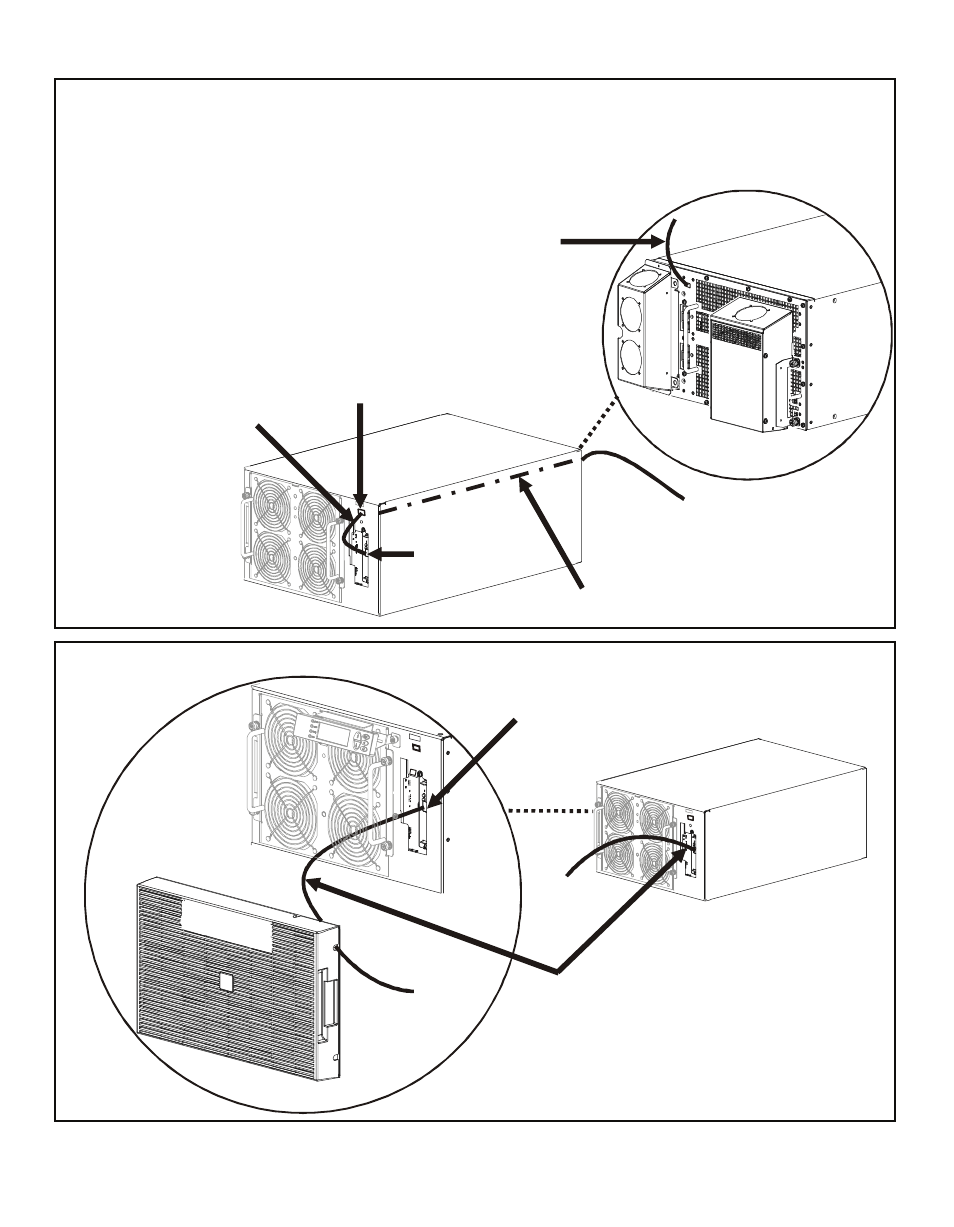

Route ethernet cable and install bezels
Ethernet cable wiring rear panel access
Locate the RJ45 connector and the ethernet port on the front panel of the UPS. Connect the ethernet jumper
cable (included), to the RJ45 connector and the ethernet port.
Connect a network cable (not included), to the RJ45 connector on the rear panel of the UPS.
Ethernet cable wiring front panel access
RJ45 Connector
Ethernet Cable connected to rear
panel RJ45 connector
There is an internal ethernet cable that connects
the front and rear panel RJ45 connectors.
Ethernet
Cable
Ethernet Jumper Cable
Internal pass through ethernet cable connecting
front and rear panel RJ45 connectors
Ethernet
Port
Cables that are connected to the UPS for front
panel access must be routed through one of the
notches on the bezel.
Ethernet
Cable
Ethernet Port
