Smart-UPS RT 15000/20000 VA 230 Vac Stack/Rack-Mount 6U User Manual 13
BSJ
B3 B2 B1 L1 L2 L3 NEU GND
B3 B2 B1 L1 L2 L3 NEU GND
B3 B2 B1 L1 L2 L3 NEU GND
BSJ
SJ1

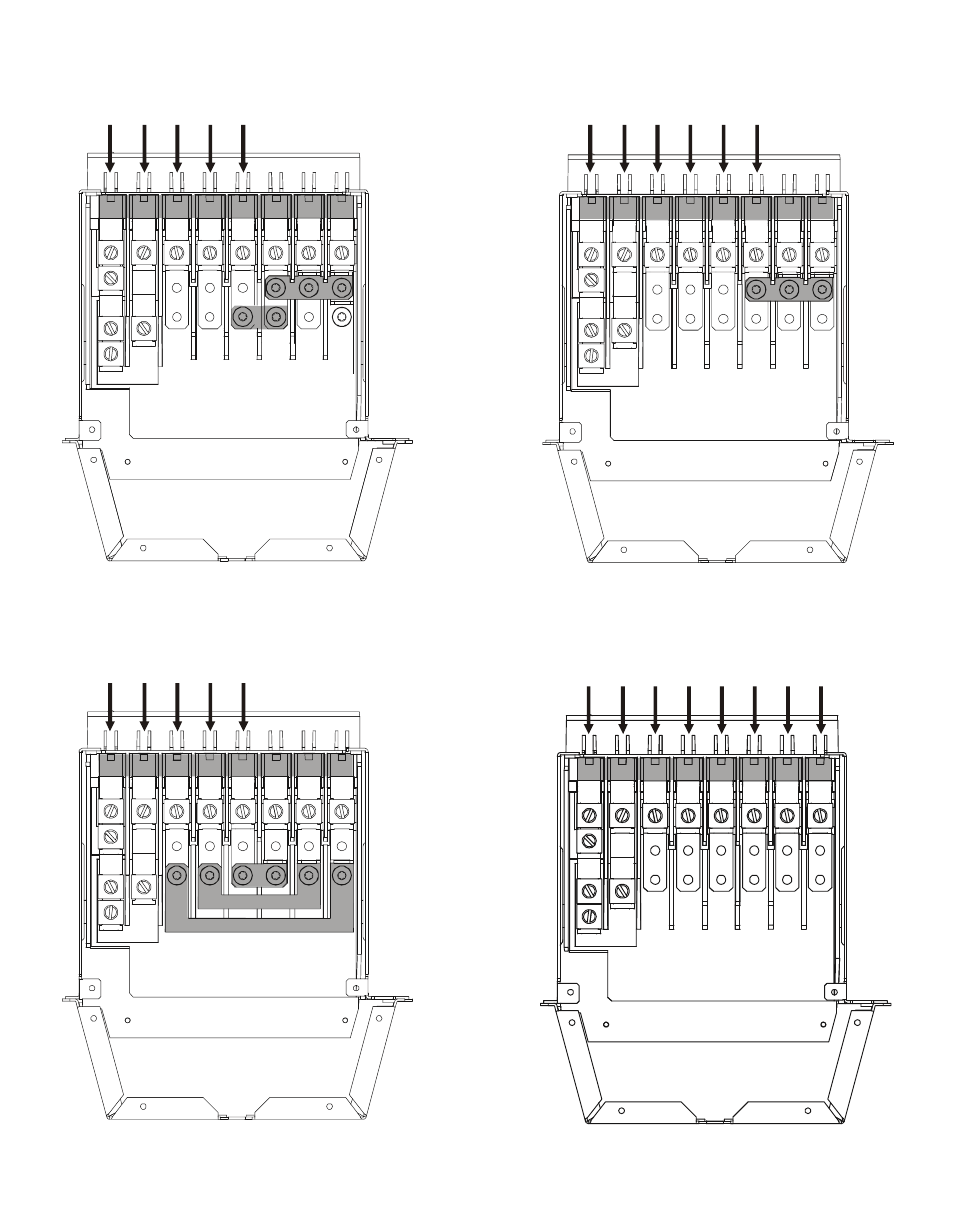

Input wiring option 3
Three phase input, single phase output,
single feed
SJ3
SJ2
SJ1
B3 B2 B1 L1 L2 L3 NEU GND
Input wiring option 4
Three phase input, single phase output,
dual feed
Input wiring option 5
Three phase input, three phase output,
single feed
Input wiring option 6
Three phase input, three phase output, dual
feed
