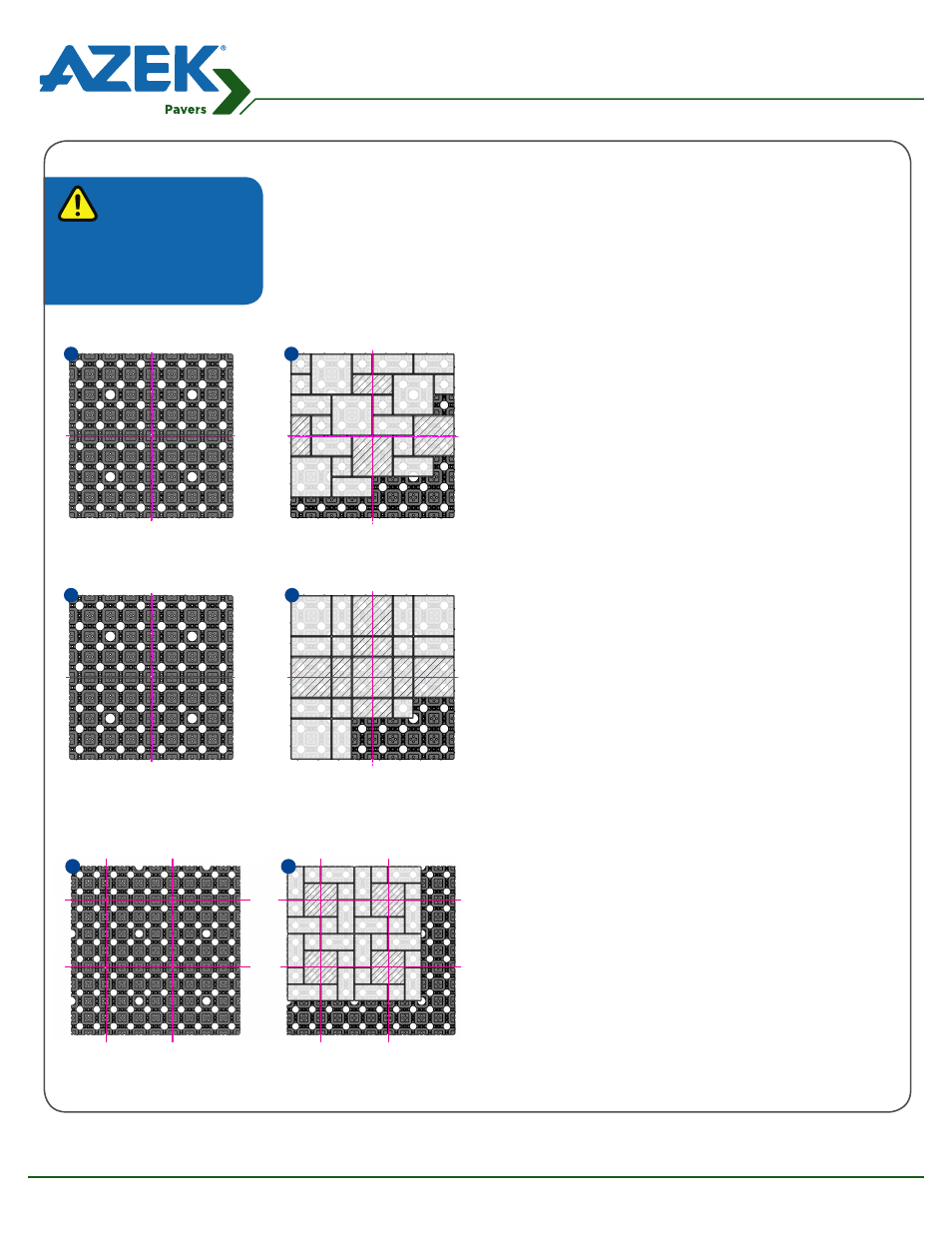

8x8, 4x8, and 4x4 Standard Paver Patterns

Choose Pattern:
AZEK Pavers can be installed in a multitude of different patterns and
combinations. Designs can include small and large repeating patterns.
Some example patterns are provided below:

At least one paver must connect two grids in each direction.

IMPORTANT:
At least one
paver must
connect two
grids in each
direction.

Plain Weave:
• 8 x 8 - 57.1%

• 4 x 8 - 28.6%

• 4 x 4 - 14.3%

• Lay the installation grids as illustrated at left.

• Start laying pavers at the starting corner.

• Compatible with 4" and 8" soldier course borders.

Block Lattice:
• 8 x 8 - 44.4%

• 4 x 8 - 44.4%

• 4 x 4 - 11.1%

• Lay the installation grids as illustrated at left.

• Start laying pavers at the starting corner.

• Perimeter 8" x 8" pavers can be replaced with
4" x 8" pavers to create an 8" soldier course
border.

Soldiered:
• 8 x 8 - 25%

• 4 x 8 - 50%

• 4 x 4 - 25%

• Trim Grids as illustrated at left.

• All parts of quarter Grids and half Grids can be used.

• Lay the installation grids as illustrated at left.

• Start laying pavers at the starting corner.

• Adding 4" or 8" soldier course would eliminate the
need to cut grids.

STARTING CORNER
