ProductionVIEW HD-SDI MV
ProductionVIEW HD-SDI MV Manual - Document Number 342-0318 Rev. B
Page 26 of 36

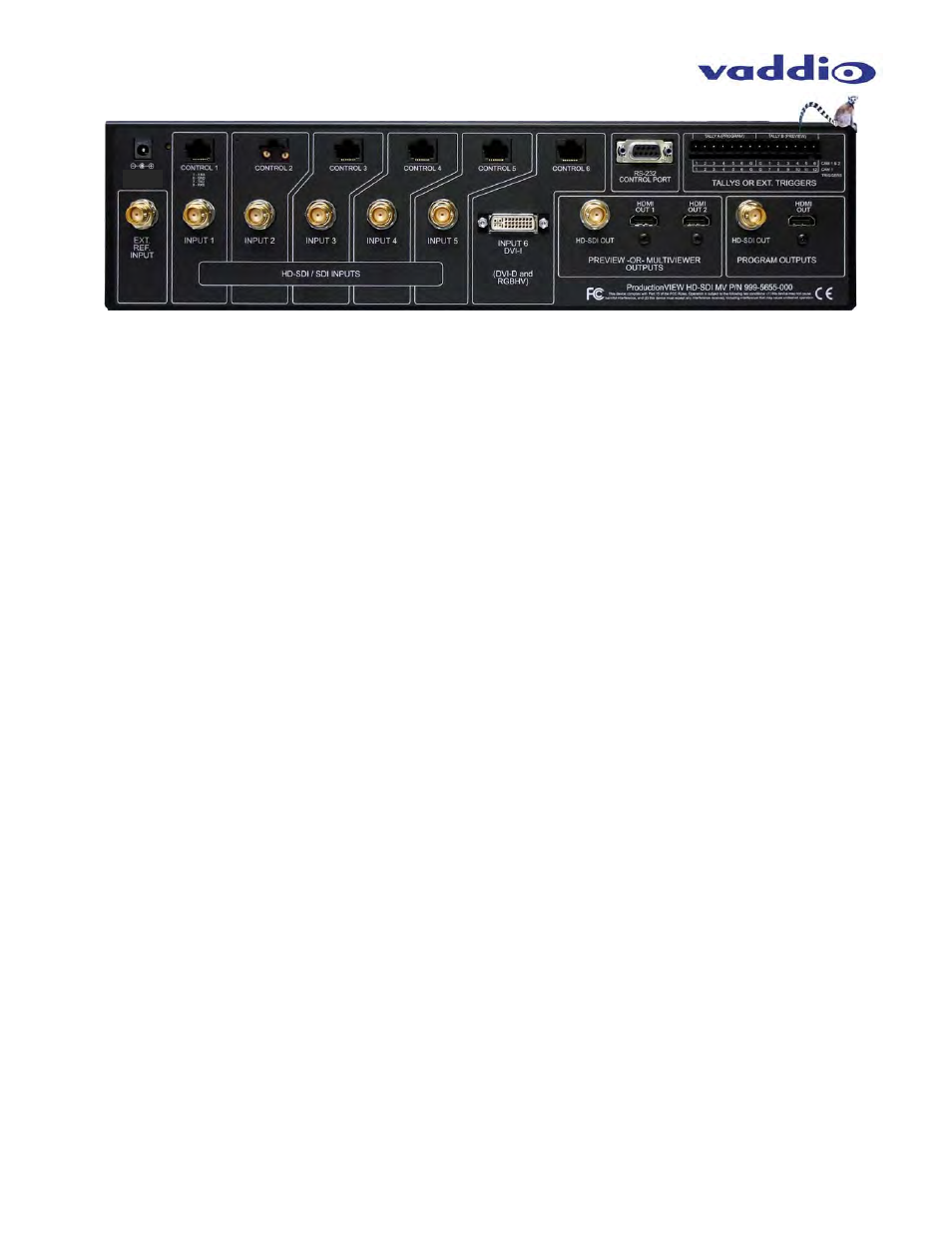

ProductionVIEW HD-SDI MV Back Panel Connectors:
Power:
18 VDC, 2.78 A (5.5mm OD x 2.5mm ID), Positive Center
External Reference Input:
One (1) BNC-Female for external reference from external device
Inputs 1-5:
One (1) BNC-Female HD-SDI or SD-SDI Resolutions for each input
One (1) RJ-45 Female for Camera RS-232 for each input
Input 6:
One (1) DVI-I Female for Analog and Digital Resolutions (see Page 27: General Resolutions)
One (1) RJ-45 Female for Camera RS-232
Preview/Multiviewer Out:
One (1) BNC Female HD-SDI or SD-SDI Resolutions
Two (2) HDMI Female Connectors for Multiviewer (HDMI Female x 2):
Use one (1) HDMI Male to DVI-D Male Adapter Cable for Vaddio TeleTouch Touch Screen LCD
Monitor.
Preview or Multiviewer Resolutions on the BNC and two (2) HDMI Connectors are the same
resolution (see Page 27: General Resolutions)
Program Out:
One (1) BNC Female
One (1) HDMI Female Connector
Program resolutions on the BNC and HDMI Program Out are the same resolution (see Page 27:
General Resolutions)
Control Port:
RS-232 - DE-9-F (DB-9-F)
Triggers/Tally:
14-pin Molex 5.0mm Euro connector (two 7-pin mating connectors)
18VDC
