ProductionVIEW HD-SDI MV

ProductionVIEW HD-SDI MV Manual - Document Number 342-0318 Rev. B

Page 11 of 36

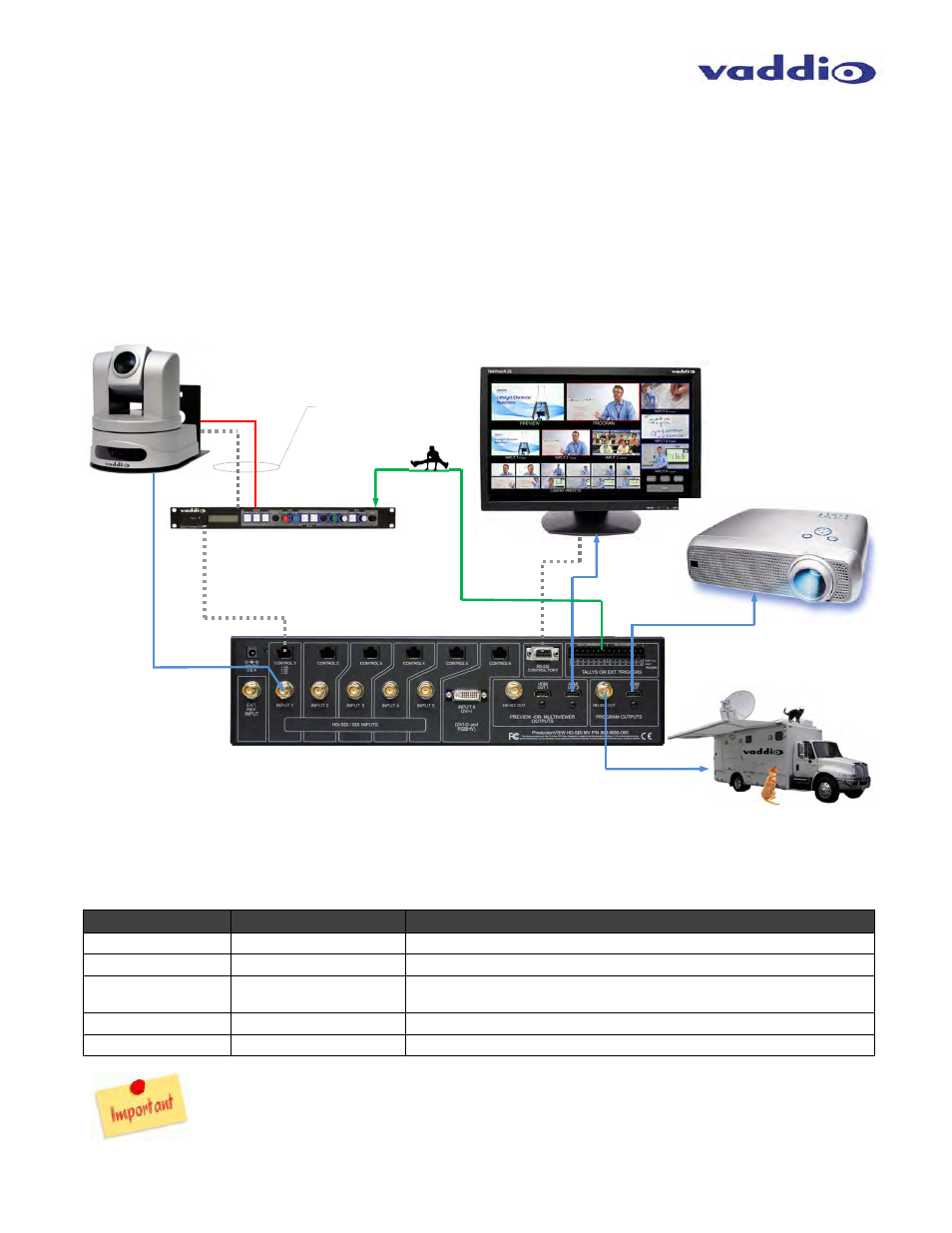

Basic System Configuration:
ProductionVIEW HD-SDI MV connected to one (1) Vaddio Quick-Connect™ HD-20 CCU System, TeleTouch 22”
Touch Screen Controller and room projector. The TeleTouch Touch Screen Controller eliminates the need for
individual preview monitors and the touch screen greatly simplifies overall console operation. The TeleTouch
Touch Screen can be configured to display up to six input windows and two larger Program bus and Preview bus
windows with red and green tally window borders. It also displays video thumbnails for up to 12 camera presets
per camera input.

ProductionVIEW HD-SDI MV connected to HD-20 PTZ Camera with EZIM HD-SDI Slot Card, Quick-Connect
CCU HD-20 and TeleTouch 22” Touch Screen Controller:

HD-SDI/SDI Cable Distances:
Using the ProductionVIEW HD-SDI MV Console and the EZIM HD-SDI Slot Card for the HD-30, HD22, HD-20,
HD-19 and HD-18, expected HD-SDI/SDI cable distances are approximately as follows:

Resolutions:

SMPTE STD

Cable Distances*

720p/59.94/50 SMPTE

292M

Max. Length: 754.543 ft. (230m)

1080i/59.94/50 SMPTE

292M

Max. Length: 754.543 ft. (230m)

1080p/59.94/50

SMPTE 424M

Max. Length: 459.287 ft. (140m)
1080p/59.94/60/50 - 3Gb/s compliant - Single Link Only

525i/29.97

SMPTE 259M

Max. Length: 820.179 ft. (250m)

625i/25

SMPTE 259M

Max. Length: 820.179 ft. (250m)

IMPORTANT NOTE: *Distances are approximate and based on using Belden 1694A coax cable,
Gennum 3Gb/s Transmitters and cable drivers with Gennum 3Gb/s Cable EQ and Receivers
(Vaddio products only). Results will vary by -40% to -50% if a non-Vaddio camera is used.

HD-SDI
Coax Cable

Power and Control
Cat-5e up to 500’
(152.4m)

RS-232

HD-SDI

DVI-D to
HDMI
Cable

Quick-Connect
CCU HD-20

TeleTouch 22” Touch Screen Controller

3-LCD Projector

ProductionVIEW HD-SDI MV

Power

Vaddio HD-20 camera with
optional EZIM HD-SDI Slot Card

HD Video

Quick-Connect CCU provides Power and
Color Correction/Shading to the HD-20

HD-SDI PROGRAM

(Feed to Satellite Truck)

Tally
