Basic System Connectivity Example 1:
Once the PresenterPOD is connected to the PresenterPOD Interface, the triggers can be connected to the device
to be activated (AutoPresenter, ControlVIEW XHD, Hot-Shot Preset Camera Controller, ProductionVIEW HD or
other control systems). In this example, the Vaddio AutoPresenter is shown below.

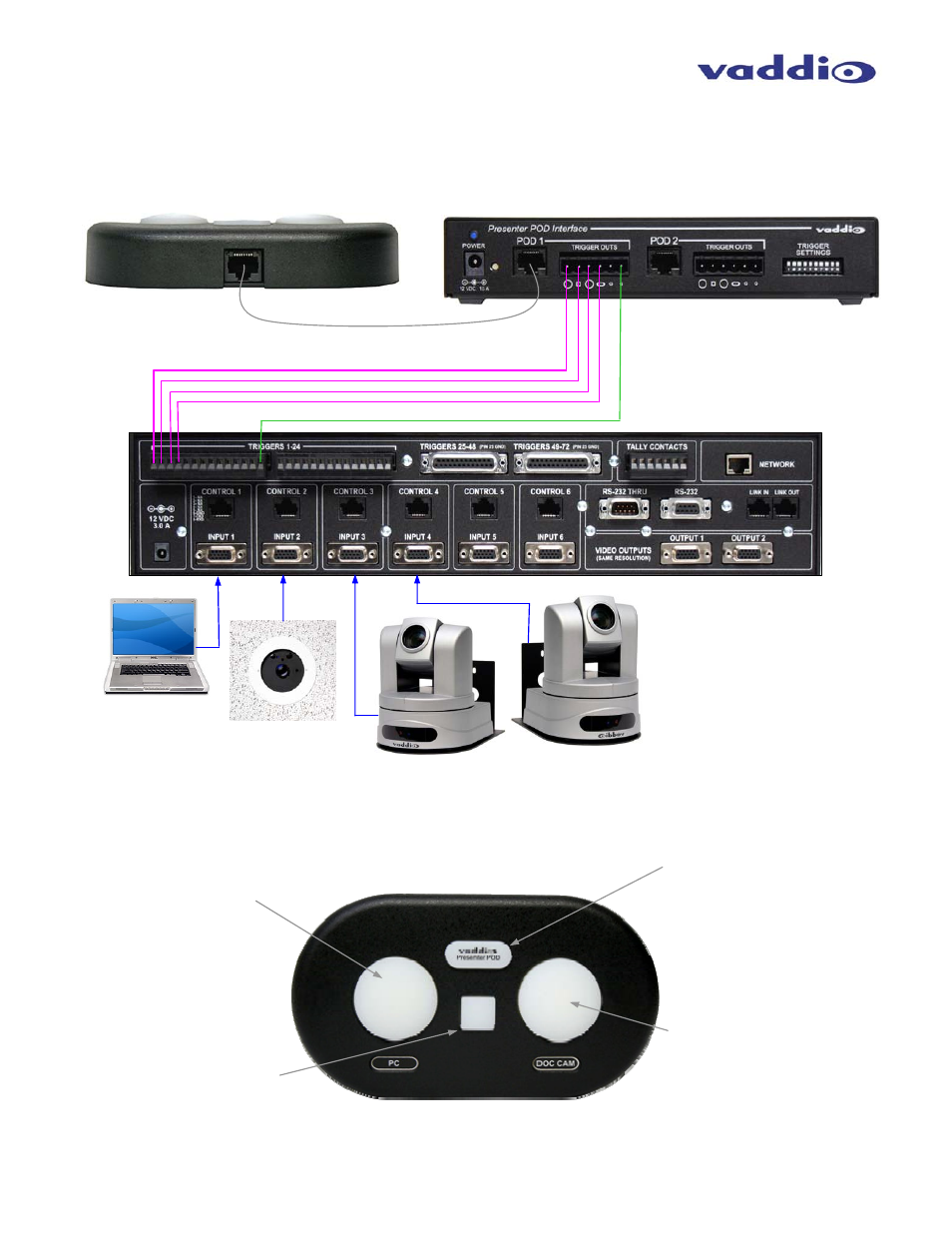

In this example, the functions of the PresenterPOD and Interface and the AutoPresenter presets are called out
below. The presenter has a PresenterPOD at the Lectern position and has control over the lectern shot, the PC,
the document camera and PIP on/off of the AutoPresenter.
Cat-5e Cable up to 100’ (30.48m)
PresenterPOD 1 PresenterPOD Interface
AutoPresenter Rear Panel
Large Left Round Button:
This button is used to recall the
preset in the AutoPresenter
that the PC input is assigned.
This is a latching input (dip
switch down) and will remain lit
when touched.
Small Square Button:
This button is used to turn on/off
the PIP assigned in the
AutoPresenter. The PIP will be
assigned as Video Input #3
(lectern position Camera) and is
a momentary trigger (dip switch
up) from Trigger #2.
PC
Ceiling DocCAM
Lectern Position Camera
Student Camera
Large Right Round Button:
This button is used to recall the
preset in the AutoPresenter
that the Document Camera
input is assigned. This is
Trigger #3, a latching trigger
input (dip switch down) and will
remain lit when touched.
Racetrack Logo Button:
This button is back-lit blue and
when triggered, it will turn red.
It will be used as a latching
trigger (dip switch down) and
make the lectern shot the main
shot.
In this example the student
camera can be controlled with
other triggers (MicVIEW and
push to talk mics) or can be set
up as a default shot when no
other triggers are present.
