PresenterPOD I/O
The PresenterPOD has two (2) RJ-45 connection
points for flexibility in mounting and cabling. Use
only one of these connectors at a time. The Cat-5e
cable between the PresenterPOD and the
PresenterPOD Interface carries power to the POD
and exchanges data with the interface.
The bottom has an RJ-45 jack used when the
PresenterPOD can be located on a wall, next to a
whiteboard, and the Cat-5e cable can be run in the
wall. The bottom RJ-45 jack can be used when the
POD is positioned over a grommet or cable pass
through. The bottom also has four (4) rubber feet
for protection of table tops and two (2) threaded
inserts for use with the metal wall mounting tabs
included with the PresenterPOD
The rear or the PresenterPOD has an RJ-45 jack
that is used when the PresenterPOD is mounted
on a table and the cable is surface mounted
(free).
PresenterPOD Labels:
Each PresenterPOD comes with 30 racetrack shaped labels. The labels are approximately .72” x .22” and are
designed to fit in the .75” x .23” indentations in the plastic below the two large round buttons. The labels are
adhesive backed and can adhere to the surface of the PresenterPOD directly for the other buttons. Out of the 30
labels, there are three blank labels for user labeling.
Installation
The PresenterPOD and the PresenterPOD Interface are very easy to install. The base system, consisting of one
(1) POD and one (1) Interface are connected with a single Cat-5e cable up to 100’ (30.48m) in length. Connect
PresenterPOD 1 into POD 1 RJ-45 jack.

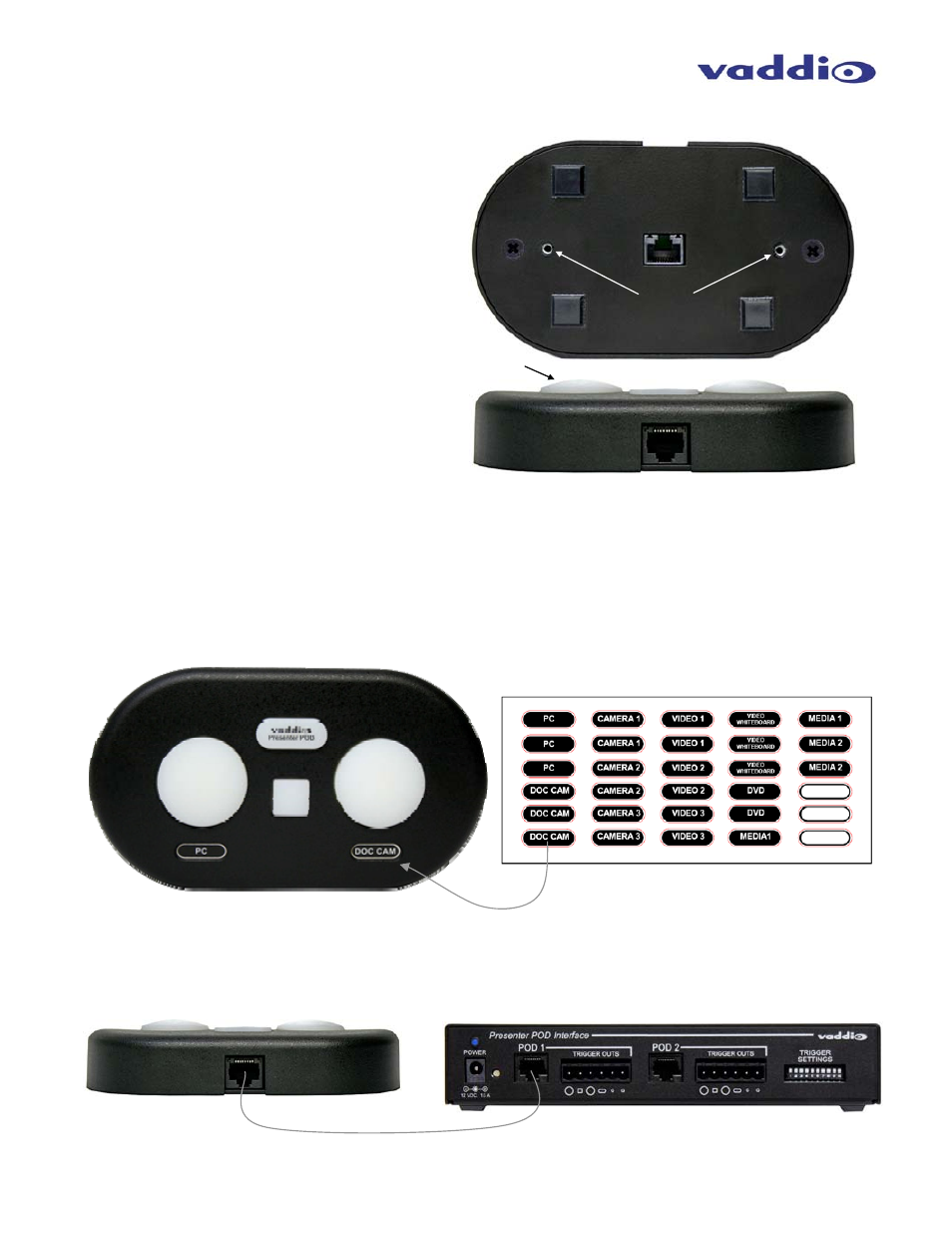

Rear of the PresenterPOD
Threaded
Inserts for Wall
Mount Tabs X 2
Bottom of the PresenterPOD
Rubber
Feet x 4
Buttons
RJ-45 on
Bottom
RJ-45 on
Rear
NOTE: The red line around each label is the cut-line and won’t
be seen once the label is removed from the backing.
Cat-5e Cable up to 100’ (30.48m)
PresenterPOD 1
PresenterPOD Interface
