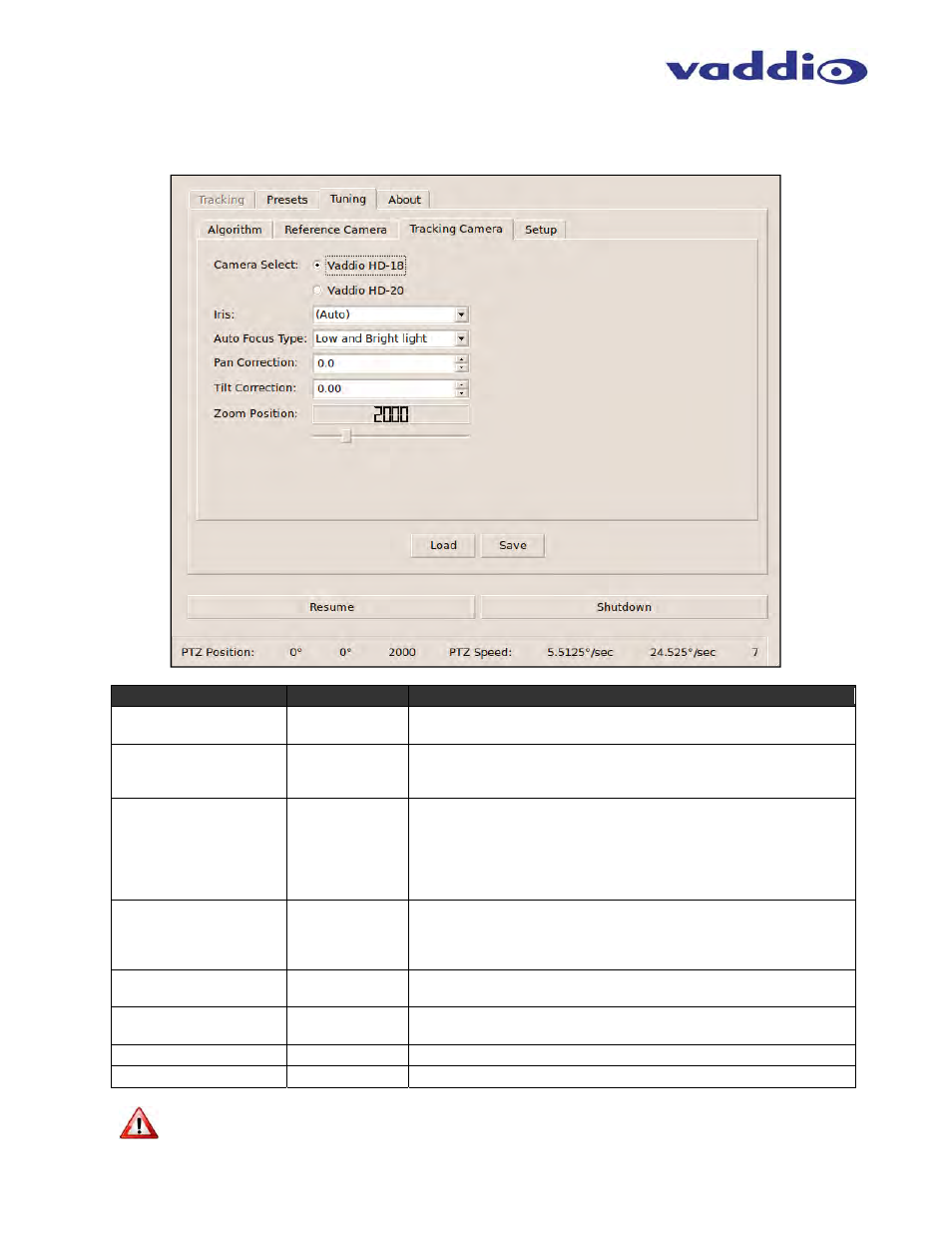

All Menu Screen Shots and Control Descriptions (continued):
Tuning: Tracking Camera
NOTE: Bright, natural sunlight contains too much IR and can hinder AutoTrak 2.0’s ability to discern the
lanyard from the surroundings. Consideration of the room environment is crucial to optimal performance.
Feature Action Description
Camera Select Click On The system will auto-detect if a HD-18 Tracking Camera or HD-20
Tracking Camera is being used.
Iris Click Up/Down Auto Mode
Manual Mode allows Iris adjustment in steps (f-stops)
The system will auto set this value to start.
Auto Focus Type Click Up/Down Select Between “Low and Bright Light” Conditions or
“Low Light” Conditions. The “Low and Bright Light” setting works
best in rooms with bright spots and reflections (uneven lighting). The
“Low Light” Setting works best in low to medium, even lighting
environments and focusing is faster.
The system will auto set this value to start.
Pan Correction Click Up/Down Value, in degrees, to adjust reference location used to move
Tracking Camera. (FOR USE ONLY WITH SIDE BY SIDE CAMERA
INSTALLATIONS - THIS CONFIGURATION IS NOT
RECOMMENDED)
Tilt Correction Click Up/Down Value, in degrees, to adjust reference Tilt location used for the
Tracking Tilt.
Zoom Position Slider Left/Right Zoom position, in steps (0- 9984), auto-stored when Tracking
Camera Preset is saved.
Load Button Click/Press Loads previously saved settings
Save Button Click/Press Saves tuning settings for Tracking Camera
