Napoleon Fireplaces Corner Model – WMFE1 - Manual (Page 8)

W415-0958 / C / 03.01.12
8
18”
MIN.
2”
MIN.
WMFE2, WMFE3, WMFE4
WMFE2 ILLUSTRATED
12”
MIN.
1/2”
2”
0”
18”
MIN.
6”
MIN.
WMFE1
4.0 INSTALLATION

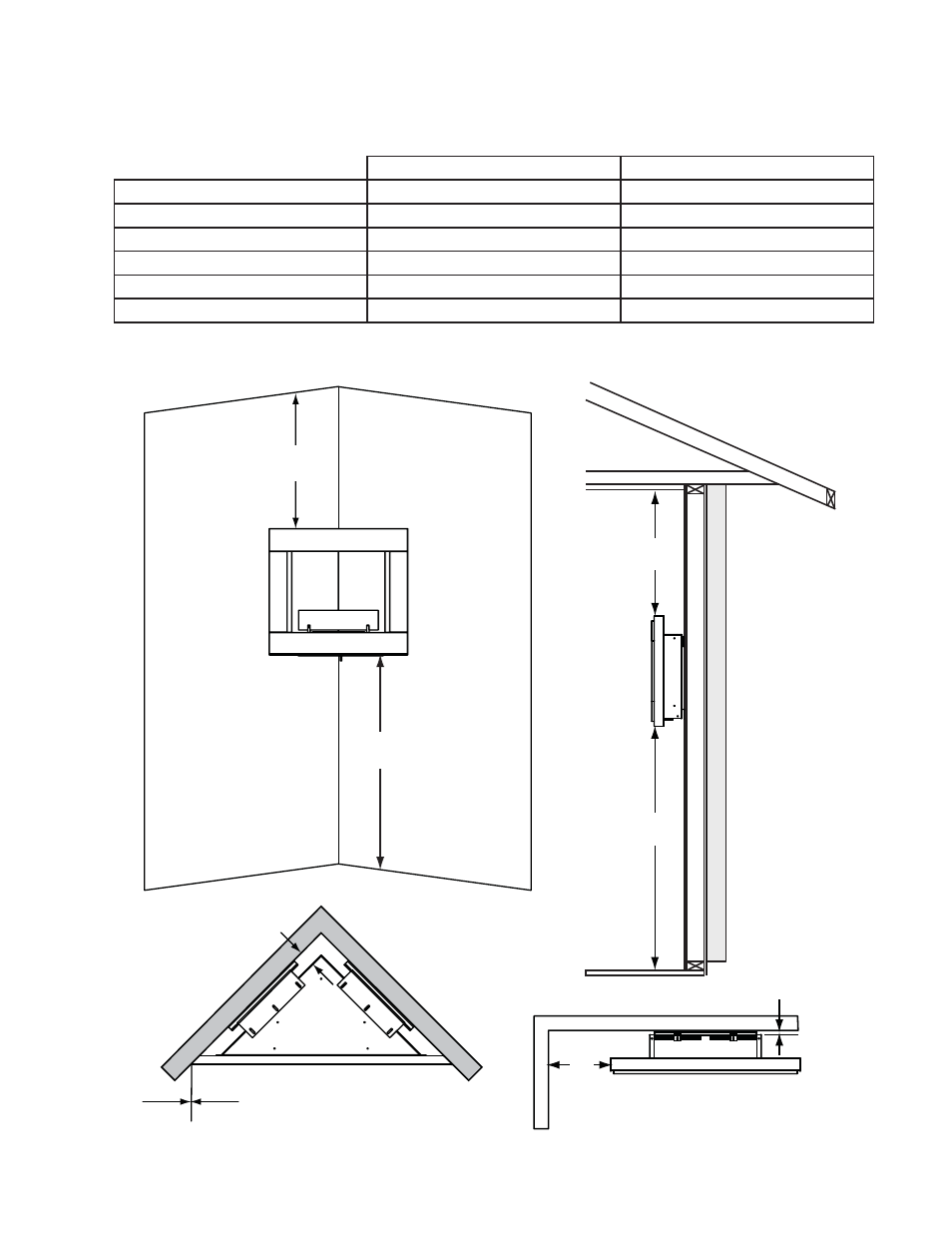

4.1 MINIMUM CLEARANCE TO COMBUSTIBLES
WMFE1 WMFE2, WMFE3, WMFE4
SIDES 0" 12"
BACK 2" 1/2"
TOP 18" to mantel 18" to mantel
TOP 18" to ceiling 18" to ceiling
FRONT 36" 36"
BOTTOM 6" 2"
