Napoleon Fireplaces Corner Model – WMFE1 - Manual (Page 17)

17
W415-0958 / C / 03.01.12
8.0 REPLACEMENT PARTS
Contact your dealer or the factory for questions concerning prices and policies on replacement parts. Normally
all parts can be ordered through your Authorized dealer / distributor.
FOR WARRANTY REPLACEMENT PARTS, A PHOTOCOPY OF THE ORIGINAL INVOICE WILL BE
REQUIRED TO HONOUR THE CLAIM.
When ordering replacement parts always give the following information:
•
Model & Serial Number of appliance
• Installation date of appliance
• Part number
• Description of part
• Finish
* IDENTIFIES ITEMS WHICH ARE NOT ILLUSTRATED. FOR
FURTHER INFORMATION, CONTACT YOUR AUTHORIZED DEALER.
41.1
FAILURE TO POSITION THE PARTS
IN ACCORDANCE WITH THIS
MANUAL OR FAILURE TO USE ONLY
PARTS SPECIFICALLY APPROVED
WITH THIS APPLIANCE MAY
RESULT IN PROPERTY DAMAGE OR
PERSONAL INJURY.
!
WARNING

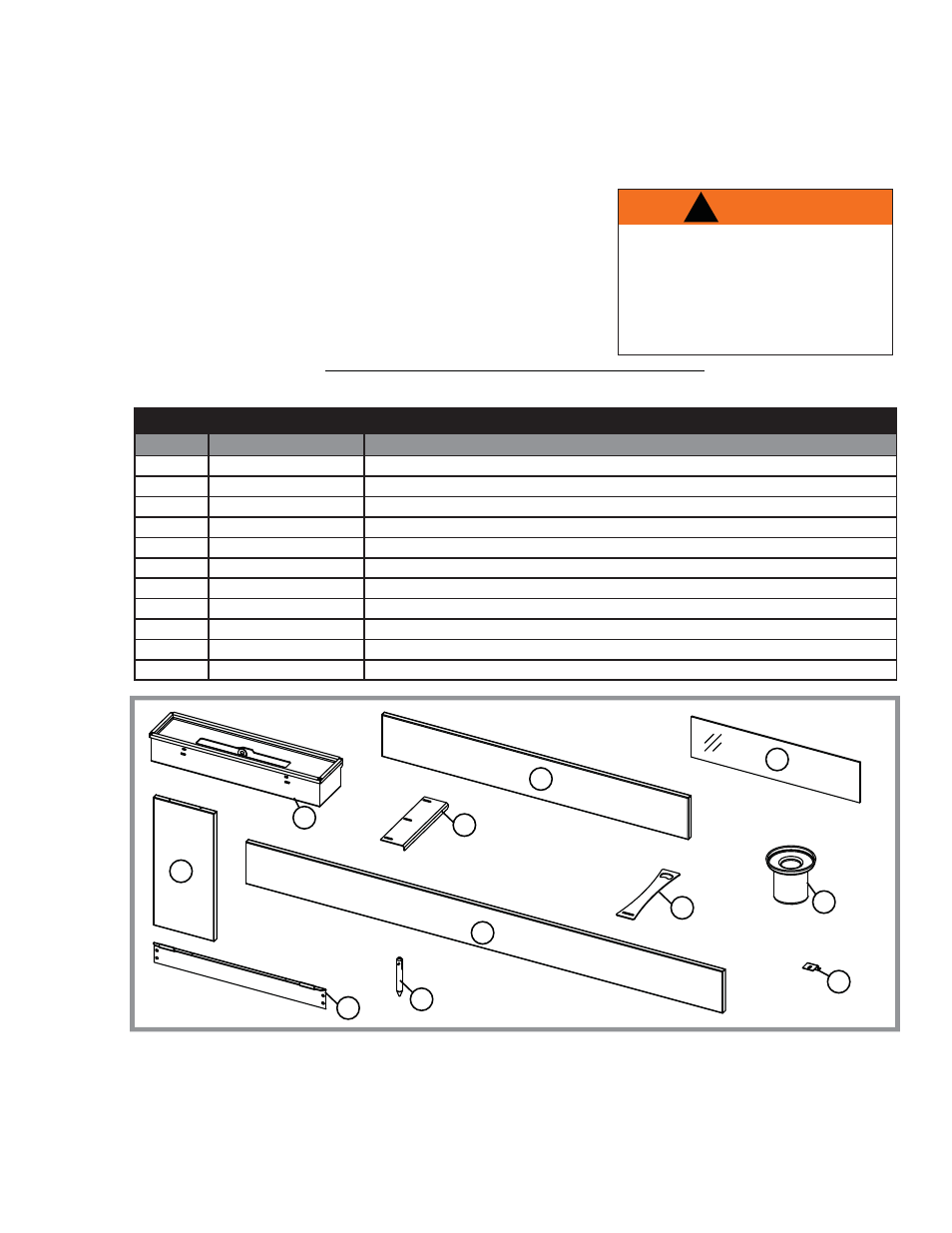

COMPONENTS
REF NO. PART NO. DESCRIPTION
1 W300-0143 GLASS FENDER
2 W515-0006 GLASS RETAINER
3 W365-0003 SHUT OFF KEY
4 W010-2461 BURN POT (WFME1)
5 W010-2432 BURNER (WMFE2, 3, 4)
6 W080-1140 WALL MOUNT BRACKET (WMFE1)
7 W655-0368 WALL MOUNT BRACKET (WMFE2, 3, 4)
8 W715-0861 SIDE TRIM (WMFE2, 3) SPECIFY COLOUR
9 W715-0860 TOP/BOTTOM TRIM (WMFE2) SPECIFY COLOUR
10 W715-0863 TOP/BOTTOM TRIM (WMFE3) SPECIFY COLOUR
11 W080-1143 TOP MOUNTING BRACKET (WMFE2, 3, 4)
2
3
4
5
6
7
8
9
10
11
1
