0 installation – Napoleon Fireplaces Corner Model – WMFE1 User Manual
Page 28
W415-0958 / B / 07.26.11
8
18”
MIN.
2”
MIN.
WMFE2, WMFE3, WMFE4
WMFE2 ILLUSTRÉ
12”
MIN.
1/2”
2”
0”
18”
MIN.
6”
MIN.
WMFE1
4.0 INSTALLATION

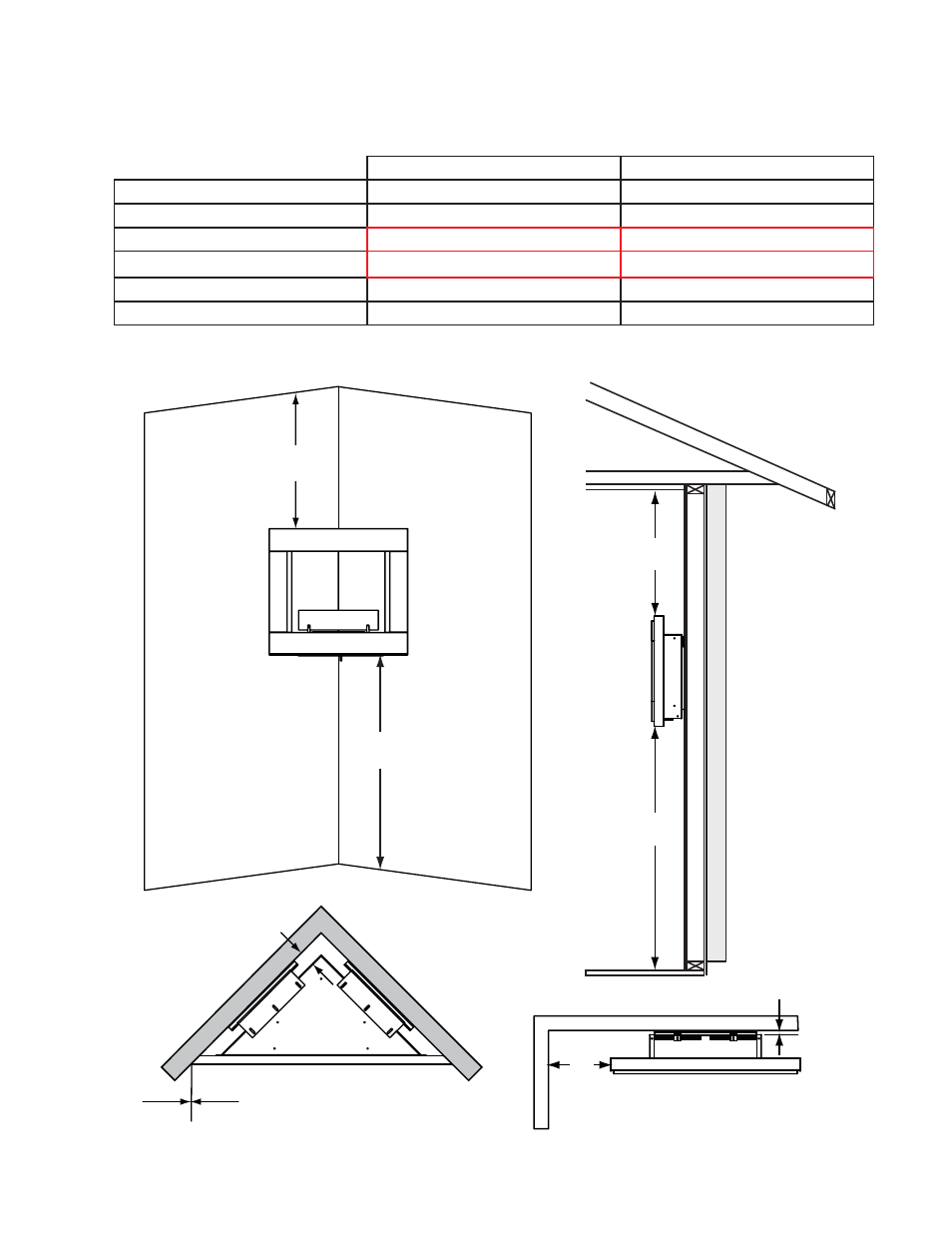

4.1 DÉGAGEMENTS MINIMAUX AUX MATÉRIAUX COMBUSTIBLES
WMFE1
WMFE2, WMFE3, WMFE4
CÔTÉS
0"
12"
ARRIÈRE
2"
1/2"
DESSUS
18" à la tablette
18" à la tablette
DESSUS
18" au plafond
18" au plafond
FAÇADE
36"
36"
BAS
6"
2"
