Appendix C

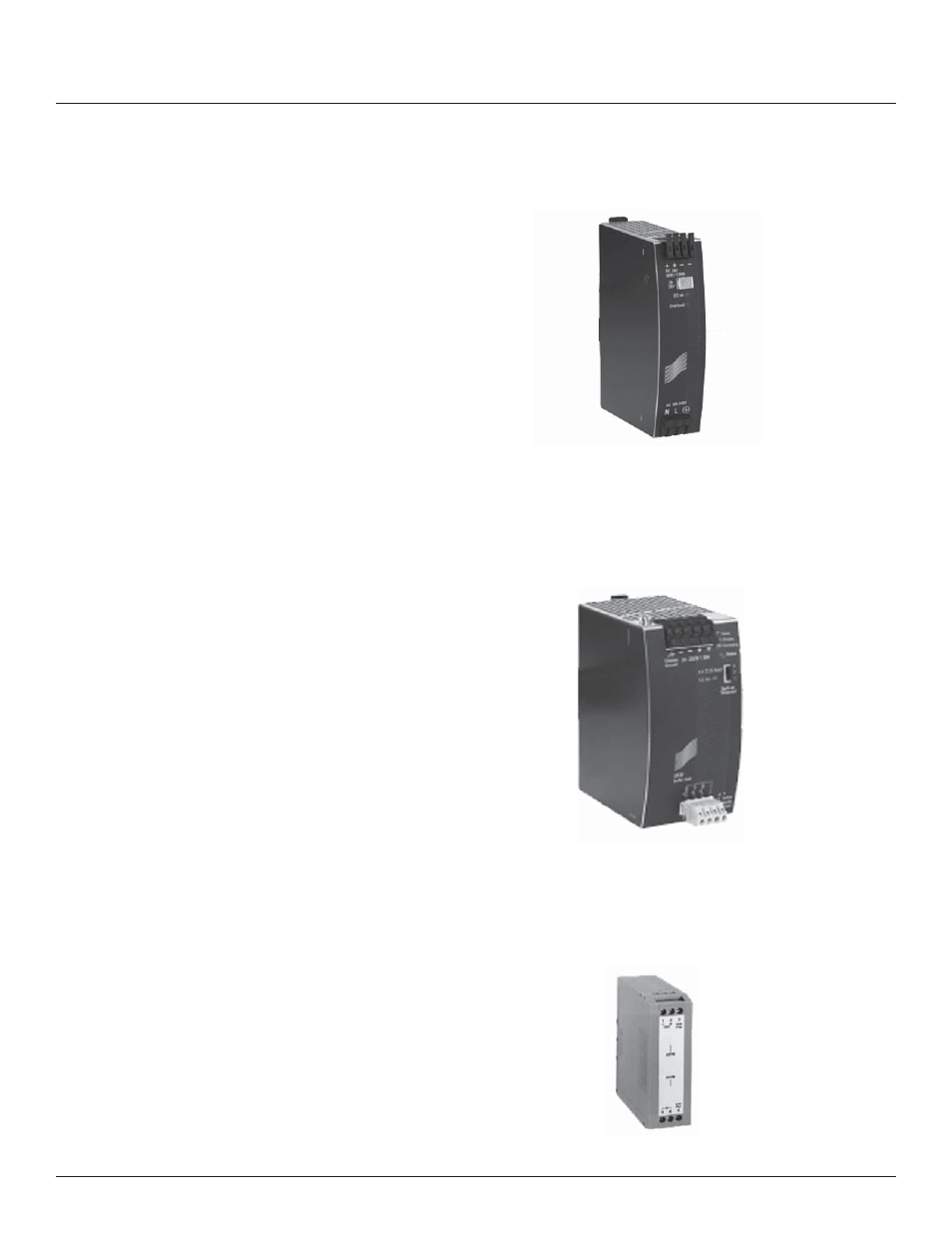

Power Supply The Power Supply connects to a 15A non-motorized breaker
and provides 24VDC, 3A power to the RPC controller.
Figure C-3
Buff er The buff er stores DC power and discharges it during a
brownout or power loss condition to turn off selected breakers
(up to four panels). This is a capacitive buff er and is lead and
acid free.
Figure C-4
Transducer The transducer converts incoming AC line voltage to a varying
DC output, allowing the RPC to monitor line voltage.
Figure C-5
