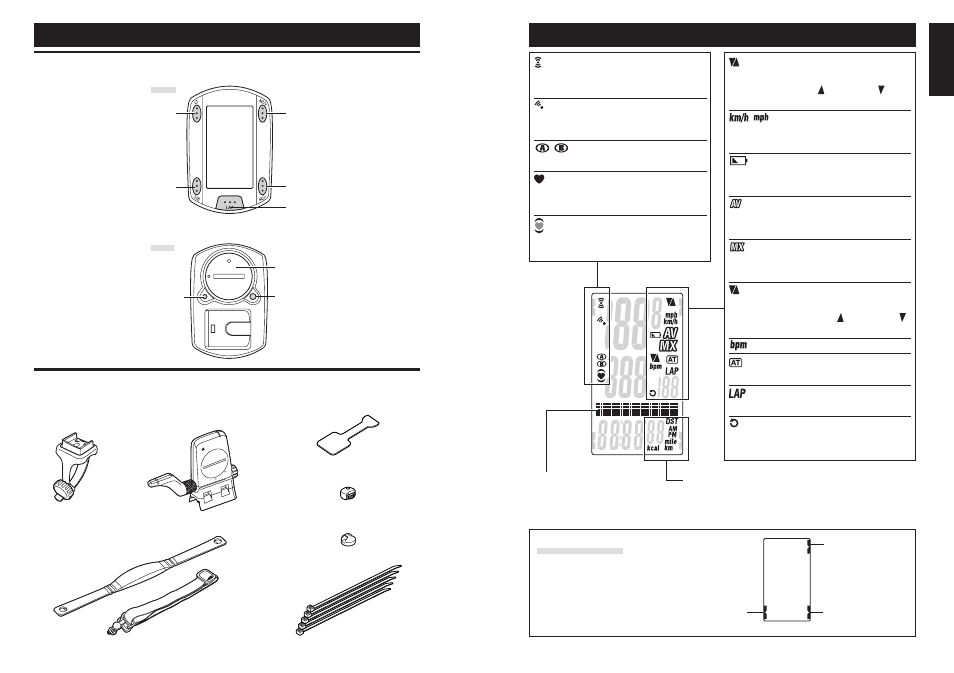

Screen display
: Speed sensor signal
Indicate Speed sensor signal status.
(page 15)
: Alarm
Lights up when the HR alarm sound fea-
ture is turned on.
: Wheel selection
Displays the wheel currently selected.
: Heart rate sensor signal
Indicate Heart Rate sensor signal status.
(page 15)
: Target zone
Lights up when the target zone is on,
and flashes when it is out of the zone.
: Speed pace arrow
The pace arrows show whether the cur-
rent speed is faster ( ) or slower ( ) than
the average speed.
: Speed unit
Flashes while speed measurement is in
progress.
: Low battery indicator
Lights up when the remaining battery ca-
pacity for the computer is low.
: Average display
Lighting up displays that the speed, heart rate,
and cadence displays are average values.
: Maximum value display
Lighting up displays that the speed, heart rate,
and cadence displays are maximum values.
: Heart rate pace arrow
The pace arrows show whether the cur-
rent heart rate is faster ( ) or slower ( )
than the average heart rate.
: Heart rate unit
: Auto-mode
Lights up when the auto-mode function is on.
: Lap icon
Lights up while the lap data is displayed.
: Cadence sensor signal
Indicate Cadence sensor signal status.
(page 15)
Dot display
Mainly displays mode descrip-
tions for the values displayed
just below. Selected data icon/unit
Displays together with the data currently displayed in
the lower display.
Button navigation
Operative buttons at set-up
of the computer, or on the
menu screen, will flash.
Lights up or
flashes when the
SSE is operative.
Lights up when the
M1/+ is operative.
Lights up when the
M2/- is operative.
Description of computer and its parts
Computer
Accessories
Back-light button (LT)
Start / stop / enter button (SSE)
Mode-1 button (M1/+)
Mode-2 button (M2/-)
Menu button (MENU)
Lap button (LAP)
Battery cover
All clear button (AC)
Front
Bracket /
Bracket band Speed sensor
(SPEED/CADENCE)
Heart rate sensor / HR strap
Bracket rubber pad
Wheel magnet
Cadence magnet
Nylon ties (x5)
Back
