Preparation
(ENG) VQT5H68
31
50
46
47
48
49
51
33
34 35 37
38 40 42 43 39 41
36
32
53 55 56 57 54
45
44
52

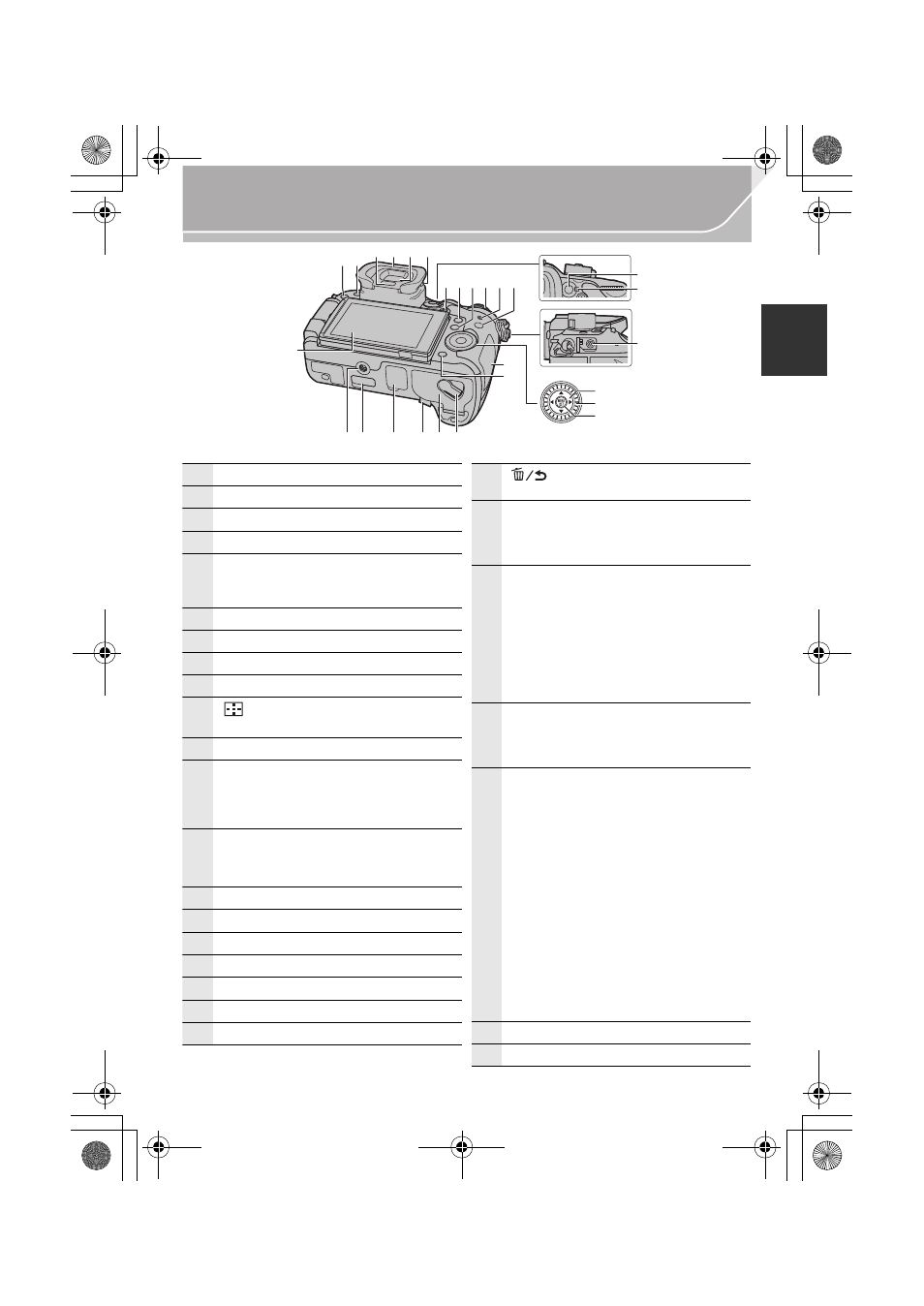

31 Touch screen/monitor (P26)
32 [(] (Playback) button (P68)
33 [LVF] button (P25)/[Fn5] button (P85)
34 Eye sensor (P26)
35
Eye Cup (P114)
• Keep the eye cup out of reach of
children to prevent swallowing.
36 Viewfinder (P25)
37 Diopter adjustment dial (P19)
38 Motion picture button (P58)
39 [Q.MENU] button (P27)/[Fn2] button (P85)
40
[ ] (Auto Focus Mode) button (P36)/
[Fn3] button (P85)
41 Rear dial (P23)
42
Speaker (P104)
• Be careful not to cover the speaker with
your finger. Doing so may make sound
difficult to hear.
43
[DISP.] button (P24)
• Each time this is pressed, the display
on the monitor is switched.
44 [AF/AE LOCK] button (P55)
45 Focus mode lever (P36, 40)
46 [REMOTE] socket
47 Cursor buttons (P23)
48 Control dial (P23)
49 [MENU/SET] button (P23, 28)
50 Card door (P17)
51 [
] (Delete/Cancel) button (P70)/
[Fn4] button (P85)
52
Tripod mount
• A tripod with a screw length of 5.5 mm
(0.22 inch) or more may damage this
unit if attached.
53
Cover for the interface unit connector
• Keep the cover for the interface unit
connector out of reach of children to
prevent swallowing.
• This connector cover is for a professional
motion picture device (U.S.A.: DMW-YAGH
(P123), Canada: AG-YAGH). For details on
AG-YAGH, refer to the site below.
http://pro-av.panasonic.net
54
Cover for the battery grip connector
• Keep the cover for the battery grip
connector out of reach of children to
prevent swallowing.
55
DC coupler cover
• When using an AC adaptor,
ensure that the Panasonic DC
coupler (DMW-DCC12: optional)
and AC adaptor (DMW-AC10PP:
optional) are used.
• Always use a genuine Panasonic AC
adaptor (DMW-AC10PP: optional).
• It is recommended to use a fully
charged battery or AC adaptor when
recording motion pictures.
• If while recording motion pictures
using the AC adaptor and the power
supply is cut off due to a power
outage or if the AC adaptor is
disconnected etc., the motion
picture will not be recorded.
56 Battery door (P17)
57 Release lever (P17)
