18

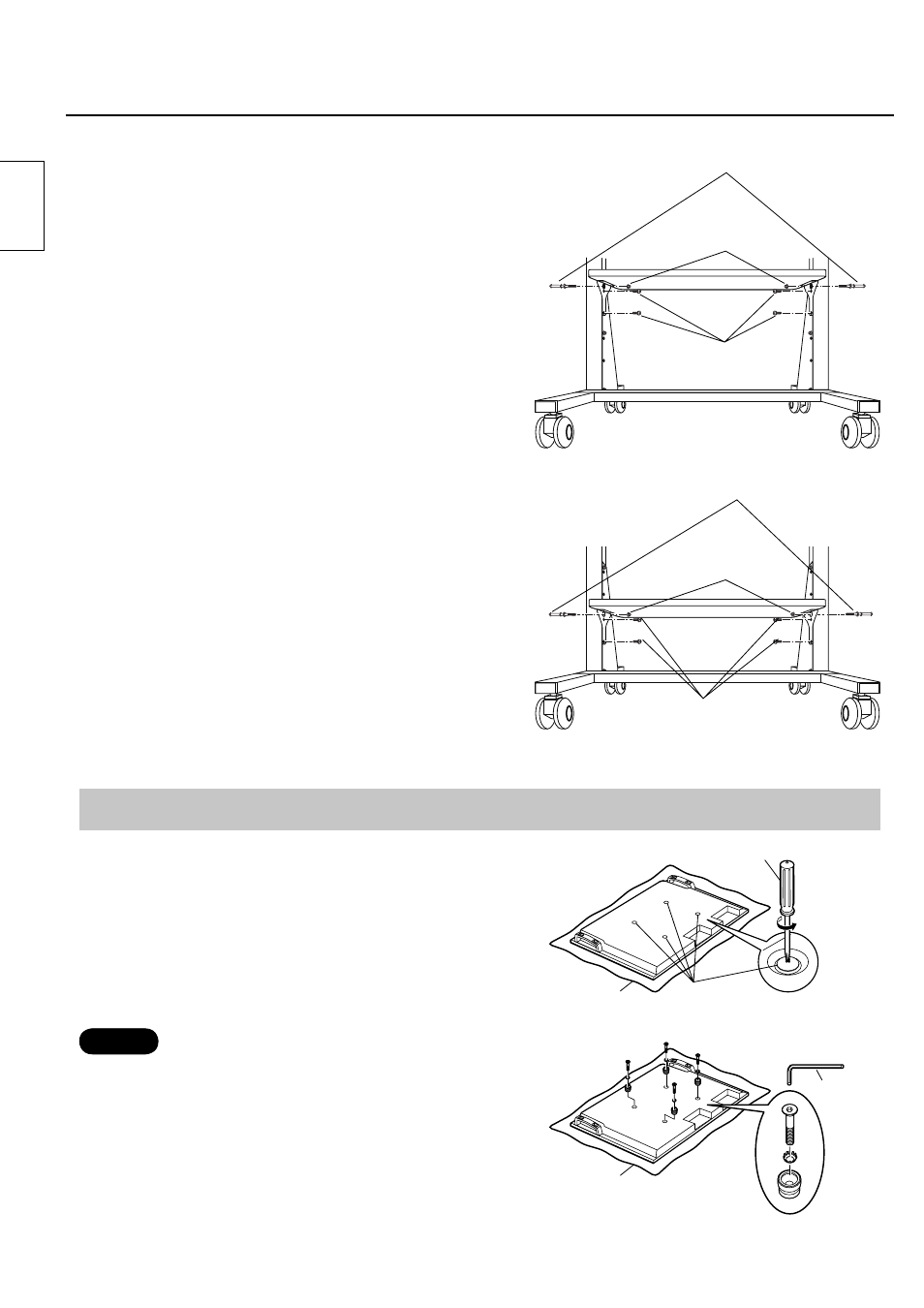

6. Shelf plate fitting
● Shelf plate fitting position can be adjusted for the top of
the shelf plate to be either approx. 35 or 50 cm (13.8 or
19.7 inches) from the floor.
The figure shows an example of fitting to the upper level
(50 cm [19.7 inches] from floor).
 Turn so the caution label of the readied shelf plate is
on the back right, align the bracket for shelf plate 
screw holes and the support column  inside right
and left screw holes, and fasten with four screws for
fitting bracket for shelf plate  .
(Tightening torque: 2 to 3 N•m)
 Fasten from the left and right of the outside of the
support column with the two readied hexagon socket
cap button bolts  and cap nuts with flanges  .
(Tightening torque: 8 to 10 N•m)
If fitting at lower level (35 cm [13.8 inches] from
floor)
 Fasten with two hexagon socket cap button bolts 
and cap nuts with flanges  through the bolt holes
on the right and left sides of the upper level (50 cm
[19.7 inches] from floor).
 Remove the two hexagon socket cap button bolts on
the left and right sides at the lower level position.
 Then fit the same way as in procedures  and  for
fitting the upper level.
2. Preparing the plasma display
Attaching the insulation spacers
 Place the front surface of the plasma display on a
clean cloth that has no dirt or foreign objects on it,
and follow the procedure below.
If the plasma display has any protruding parts, take
care not to scratch or damage them.
 Remove the four caps from the plasma display using
a Phillips head screwdriver.
Keep the caps that were removed in a safe place.
(They will be required if you use the pedestal.)
 Using the supplied Allen wrench  , attach accessory
parts  (four Allen head countersunk screws, dished
toothed washers, and insulation spacers) at the
locations where the caps were removed as shown in
the figure on the right.
(Tightening torque: 3 to 4 N•m)
Note
To change shelf plate height
● Changing the shelf plate height after setting up the
plasma display will make the stand unstable. Remove
the plasma display from the mobile stand.
Assembly
English
Phillips head screwdriver
Blanket
Blanket
Cap
Accessory parts 

 Screw for attaching
bracket for shelf plate 
 Screw for attaching
bracket for shelf plate 
 Hexagon socket cap button bolt 
(M8 × 70)
 Hexagon socket cap button bolt 
(M8 × 70)
Cap nut with flange

(M8)
Cap nut with flange

(M8)
