17
5. Preparation of the shelf plate
Face the unpainted side (back side) of the shelf
plate  upward and place it on a soft cloth or the
like. Align the positioning holes of the shelf plate
with the bracket protrusions to position the two
brackets for shelf plate  , and attach them with
four wood screws  through the outside holes.
(Tightening torque: 1 to 1.2 N•m)
* Do not excessively fasten the wood screws to
prevent stripping screw holes. If a screw hole is
stripped, use spare holes.

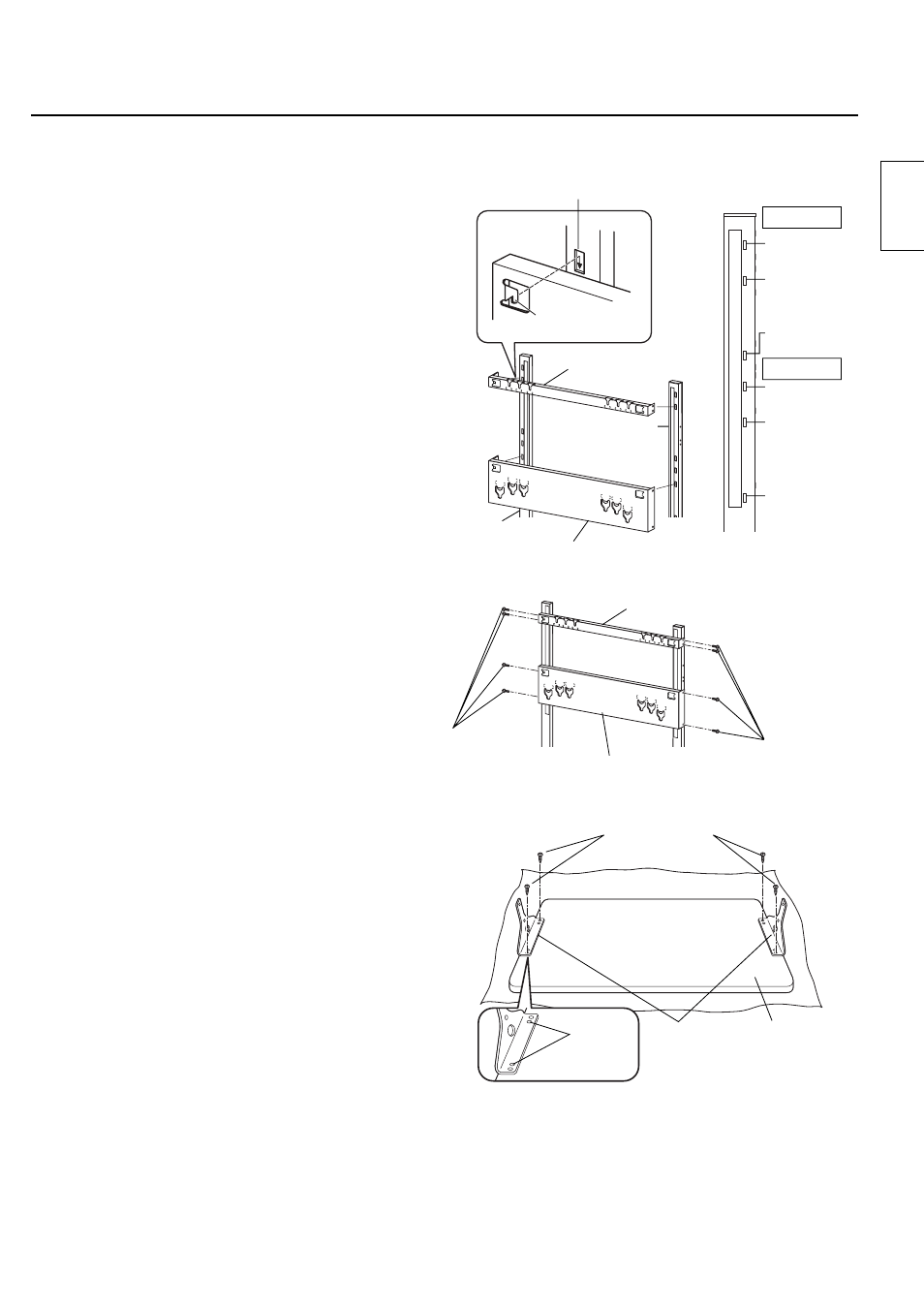

4. Attachment of brackets for plasma
display (top/bottom)
● The attachment position differs according to the size
of the plasma display to be set up.
(The figure on the right covers setting up a 50-inch
TV.)
 Hang the tabs of the top bracket for plasma display
 to the cutouts for temporarily holding the
bracket for plasma display located on the front of
the left and right support columns. Fasten with four
screws for attaching bracket for plasma display 
from the side.
(Tightening torque: 2 to 3 N•m)
* See the figure on the right for attachment positions.
 Hang the tabs of the bottom bracket for plasma
display  to the cutouts for temporarily holding
the bracket for plasma display located on the
front of the left and right support columns. Fasten
with four screws for attaching bracket for plasma
display  from the side.
(Tightening torque: 2 to 3 N•m)
* See the figure on the right for attachment positions.
English
42
50
58
42
50
58
50
For 42-inch
display
For 50-inch
display
For bottom bracket
For top bracket
Wood screw 
Spare
holes
(Inside)
Bracket for
shelf plate  Shelf
plate 
Cutouts for temporarily
holding the bracket for
plasma display
Tab
Support column
(right) 
Support column
(left) 
Top bracket for plasma display 
Cutouts for temporarily
holding the bracket for
plasma display
Bottom bracket for
plasma display 
For 42-inch
display
For 50-inch
display
For 58-inch
display
For 58-inch
display
Screw for attaching
bracket for plasma
display 
Screw for attaching
bracket for plasma
display 
Bottom bracket for
plasma display 
Top bracket for plasma display 
