1. Assembling of the stand
2. Attaching the support columns
Preparing hexagon socket cap button bolts 
3. Perpendicular adjustment and fixing of
the support columns
Adjust the support columns (left/right)  so that
they are perpendicular to the stand base. Tightly
fasten the four hexagon socket cap button bolts 
that temporarily fixed the support columns.
(Tightening torque: 8 to 10 N•m)

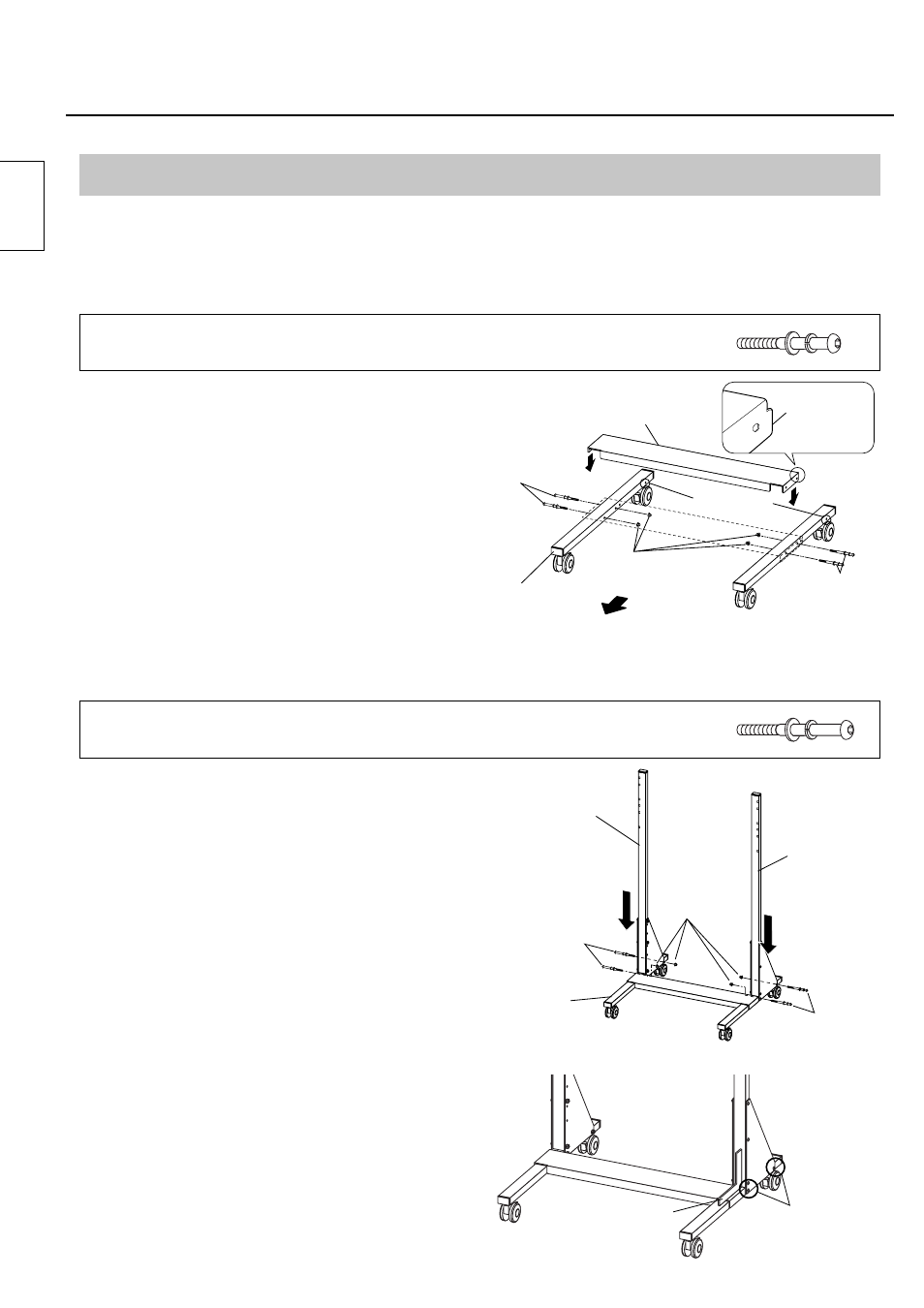

1. Assembling the stand base
Preparing hexagon socket cap button bolts 
Ready four sets by passing spring washers and flat washers over hexagon socket cap button
bolts (M8 × 65).
When assembling, make so the caps nut of the hexagon socket cap button bolts are on the inside of the stand. Length
of hexagon socket cap button bolts is 65 and 70 mm (2.6 and 2.8 inches). Be careful not to use the wrong bolts.
Face screw holes of base unit with casters  to
the rear and align with base joint  as shown in
the figure on the right, and fasten with the four
readied hexagon socket cap button bolts 
(M8 × 65) and cap nuts with flanges  .
(Tightening torque: 8 to 10 N•m)
Face the “L” and “R” marks of support columns (left/
right)  to the inside, and insert the bottom plates
into the back side of the stand base from above.
Temporarily secure support columns (left/right) 
with the readied four hexagon socket cap button
bolts  (M8 × 70) and cap nuts with flanges  .
Ready six sets by passing spring washers and flat washers over hexagon socket cap button
bolts (M8 × 70).
English
Assembly
Hexagon socket
cap button bolt 
(M8 × 65)
Screw holes
Front
Support column
(left) 
Support column
(right) 
Hexagon socket
cap button bolt 
(M8 × 70)
Stand
base
Cap nut with
flange  (M8)
Hexagon
socket cap
button bolt 
(M8 × 70)
Framing square Tightly fasten
Base joint 
Hexagon socket
cap button bolt

(M8 × 65)
Base unit with
casters 
Cap nut with flange

(M8)
Face this
side to the
rear
