ASSEMBLY
ASSEMBLY
MOUNTING QUICK ATTACH BUCKET OR OPTIONAL
ATTACHMENT TO LOADER
WARNING: To avoid injury during installation
of bucket or attachment do not allow
bystanders within 10 feet of loader and bucket
or attachment.
1. Locate tractor and attachment on level ground. Lower
boom to three to five inches off ground.
2. Disengage latch pins by lifting handles and pulling
toward rear so pins are held out of attachment ears.
3. Extend bucket cylinders slightly, making sure loader
quick attach bar is parallel to attachment. Continue
driving very slowly toward attachment. Continue
driving tractor forward, positioning quick attach bar so
it touches attachment or bucket just below attachment
channel.
4. Activate bucket rollback while moving tractor slightly
ahead so quick attach bar catches underneath
channel of attachment. Continue to roll attachment
back completely so latch pins engage in bracket ears.
5. Activate lift cylinders to raise attachment and extend tilt
cylinders to tilt attachment at a slight downward angle,
so quick attachment mechanism is visible. Visually
inspect mechanism to verify pins are engaged in ears
on back of attachment.
NOTE: If bucket or attachment is not securely attached,
follow instructions for detaching, then repeat above
procedure.
DISMOUNTING QUICK ATTACH BUCKET OR
OPTIONAL ATTACHMENT FROM LOADER
WARNING: To avoid injury during removal of
bucket or attachment, do not allow
bystanders within 10 feet of loader and bucket
or attachment.
1. Locate tractor and loader on level ground.
2. Lower boom arms until bucket or attachment is level
and approximately 3 inches off ground. Shut off tractor
engine and engage tractor brakes.
3. Disengage latch pins by lifting handles and pulling
toward rear so pins are held out of attachment ears.
4. Start tractor engine, release tractor brakes and extend
bucket cylinders while slowly backing tractor away
from bucket or attachment, until quick attach bar
disengages from attachment channel.

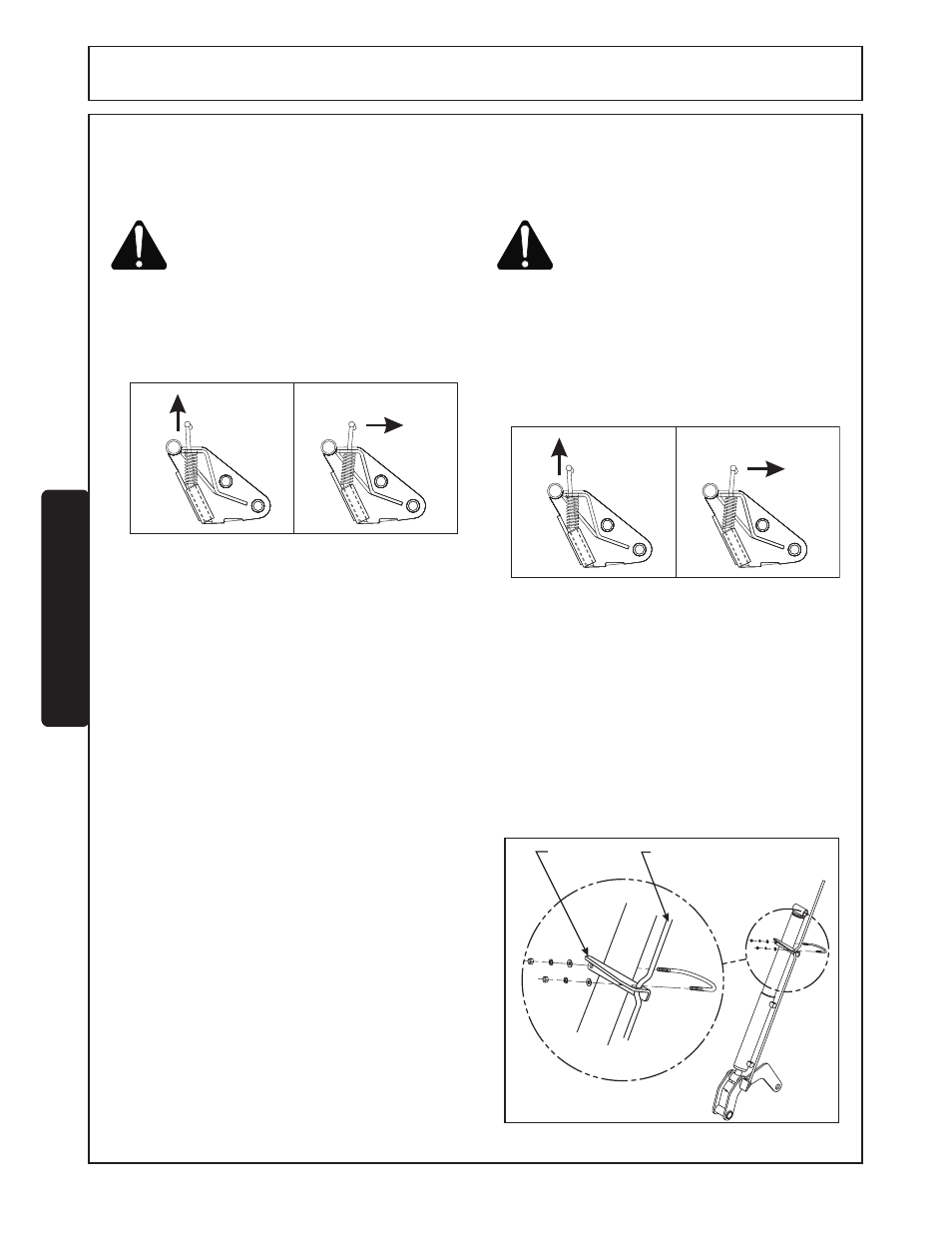

DISMOUNTING AND MOUNTING BUCKET OR ATTACHMENT TO LOADER
F-3778-12-04 Assembly Section 3-4
Lift Handle Pull Back
Lift Handle Pull Back
ADJUSTING ATTACHMENT LEVEL INDICATOR
With various tractor tire options or attachments, it may be
necessary to adjust attachment level indicator bracket up
or down tilt cylinder tube. Tractor must be on level surface
with attachment flat on surface. Loosen u-bolt to adjust.
Offset on bucket level indicator rod should be at slotted
hole when attachment is level.
Level indicator
bracket Level Indicator
Rod
