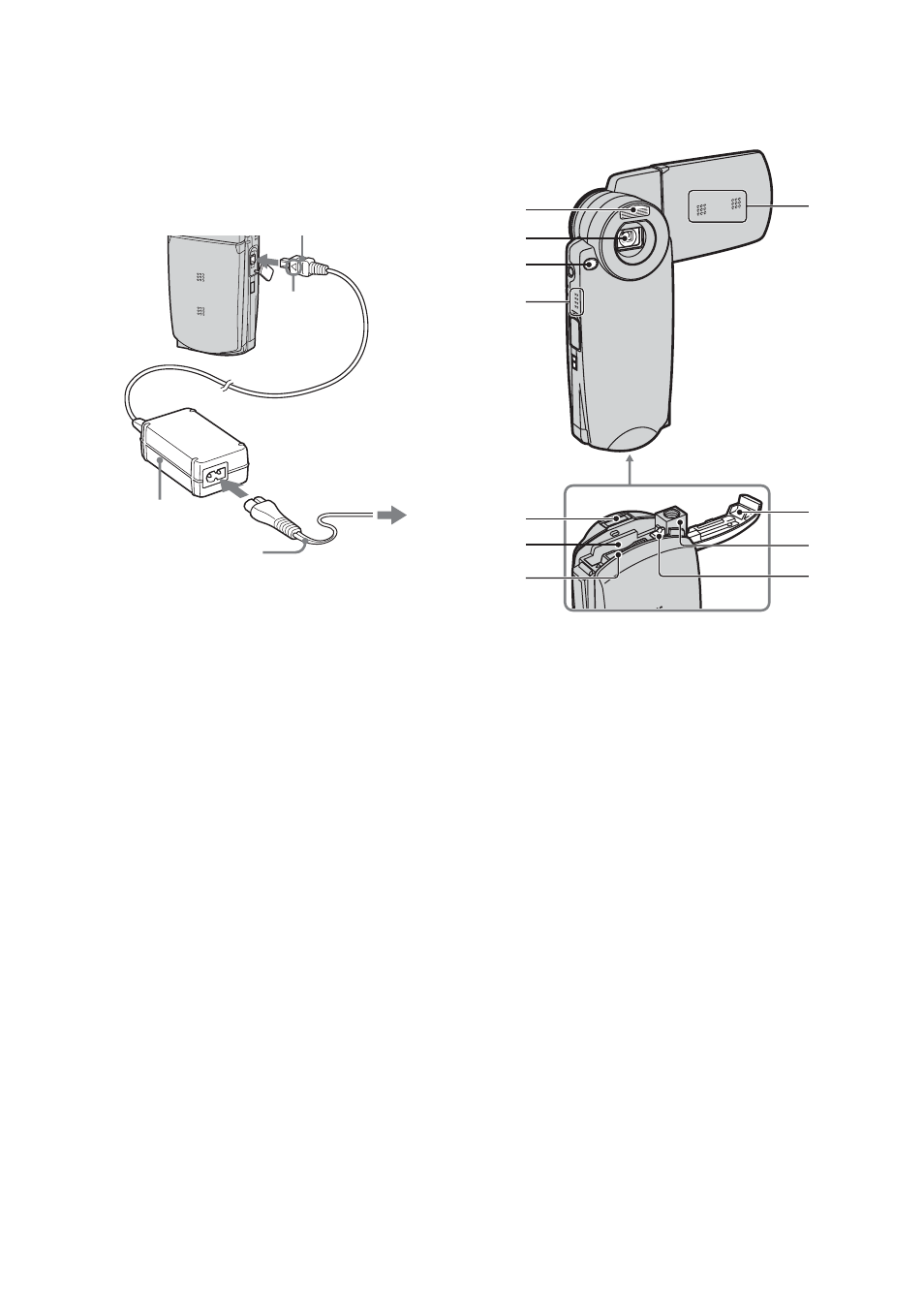

S DC IN connector
When using the AC-LS5 AC Adaptor
(supplied)
T DC IN connector cover
U Hook for wrist strap (t “Read This
First”)
V Access lamp (t step 4 in “Read This
First”)
A Flash (t step 5 in “Read This First”)
B Lens
C Self-timer lamp (t step 5 in “Read
This First”) / AF illuminator (53)
D Speaker
E Microphone
F Multi connector
G Battery insertion slot (t step 1 in
“Read This First”)
H “Memory Stick Duo” slot (t step 3 in
“Read This First”)
I Battery/“Memory Stick Duo” cover (t
step 1 and 3 in “Read This First”)
J Tripod receptacle
Use a tripod with a screw length of less than
5.5 mm (7/32 inch). You will be unable to
firmly secure the camera to a tripod having
the screw longer than 5.5 mm (7/32 inch), and
may damage the camera.
K Battery eject lever (t step 1 in “Read
This First”)
DC plug
v mark
Power cord
(mains lead)
To wall outlet
(wall socket)
AC Adaptor
