31
Step 18
Y31
● Parts Needed For ●
Door Installation & Adjustment
● ● ● ● ● Right Door Assembly (1)
● ● ● ● ● Left Door Assembly (1)
1

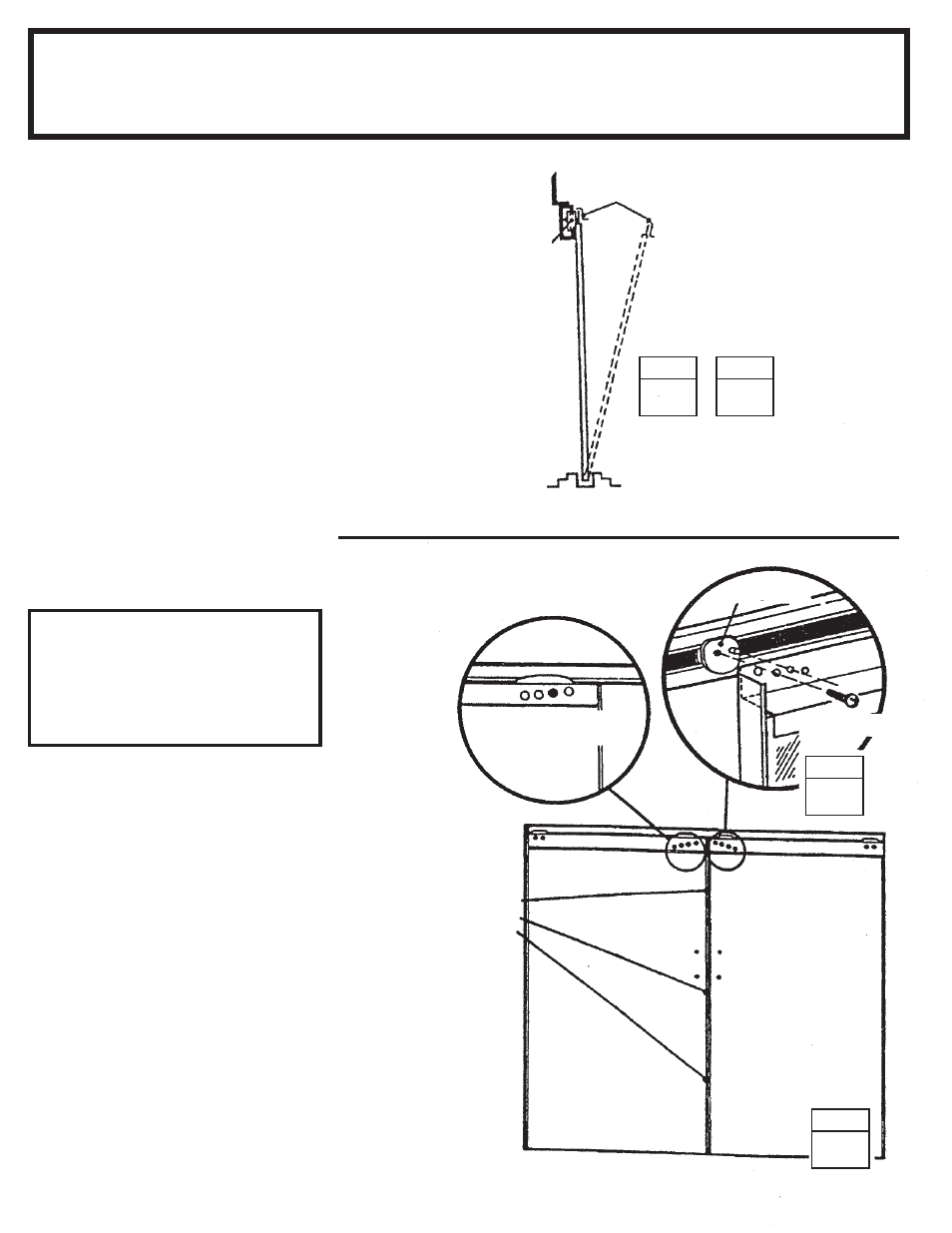

From inside the building, put the
bottom of the right door assembly (on
your left when you are inside the
building) behind door jamb into the
front frame track.
2
Position the top of the door so that
the holes in the door line up with the
holes in the door slides.
3
Fasten the door to the door slides
using a #10Bx1/2" screw.
NOTE
The four holes in the top of each
door allow you to adjust the
doors. Place the door slide in
the middle 2 holes.
4
Repeat steps 1 through 3 for the
left door.
Keep this Owner's Manual and Assembly Instructions for future reference.
STEP
2
Horizontal Door Brace
STEP
1
Gable
3
#10Bx1/2" Screw
Door Slide
Adjustment Holes
Adjustment Holes Allow
Doors to Meet Evenly
Along Their Length
Right Door Left Door
4
Front Floor Frame Assembly
Door Track
Door Slide
Door
STEP
STEP
