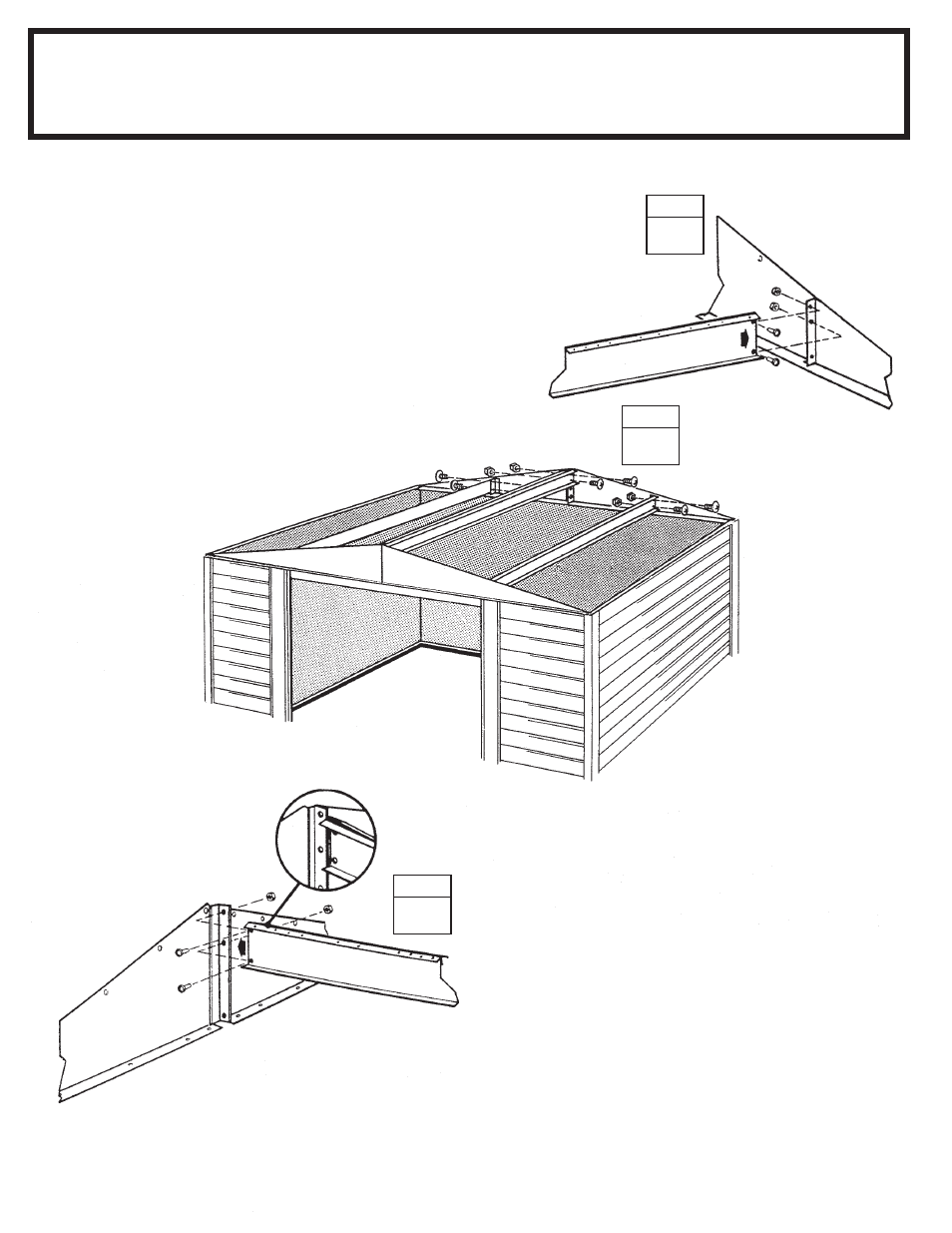

Spread the two halves of the main
roof beam and fasten the roof beam
to the gable brace of the front gable.
2
Fasten the other end of the main
roof beam to the gable brace of the
rear gable.
3
Fasten the single roof beams,
small holes on top, as shown using
bolts.
● ● ● ● ● Main Roof Beam (1)
● ● ● ● ● Single Roof Beam (2)
● Parts Needed For ●
Roof Beams
Step 13
Y26
26
STEP
2
STEP
1
STEP
3
Main Roof Beam
Assembly
Single Roof Beam
Assembly
Spread Two Halves of
Roof Beams
