● ● ● ● ● Front Floor Assembly (1)
● ● ● ● ● Side Floor Assembly (2)
● ● ● ● ● Rear Floor Assembly (1)
● Parts Needed For ●
Floor Frame
Step 5
G18
The floor frame must be square
and level or holes will not align.
18
1

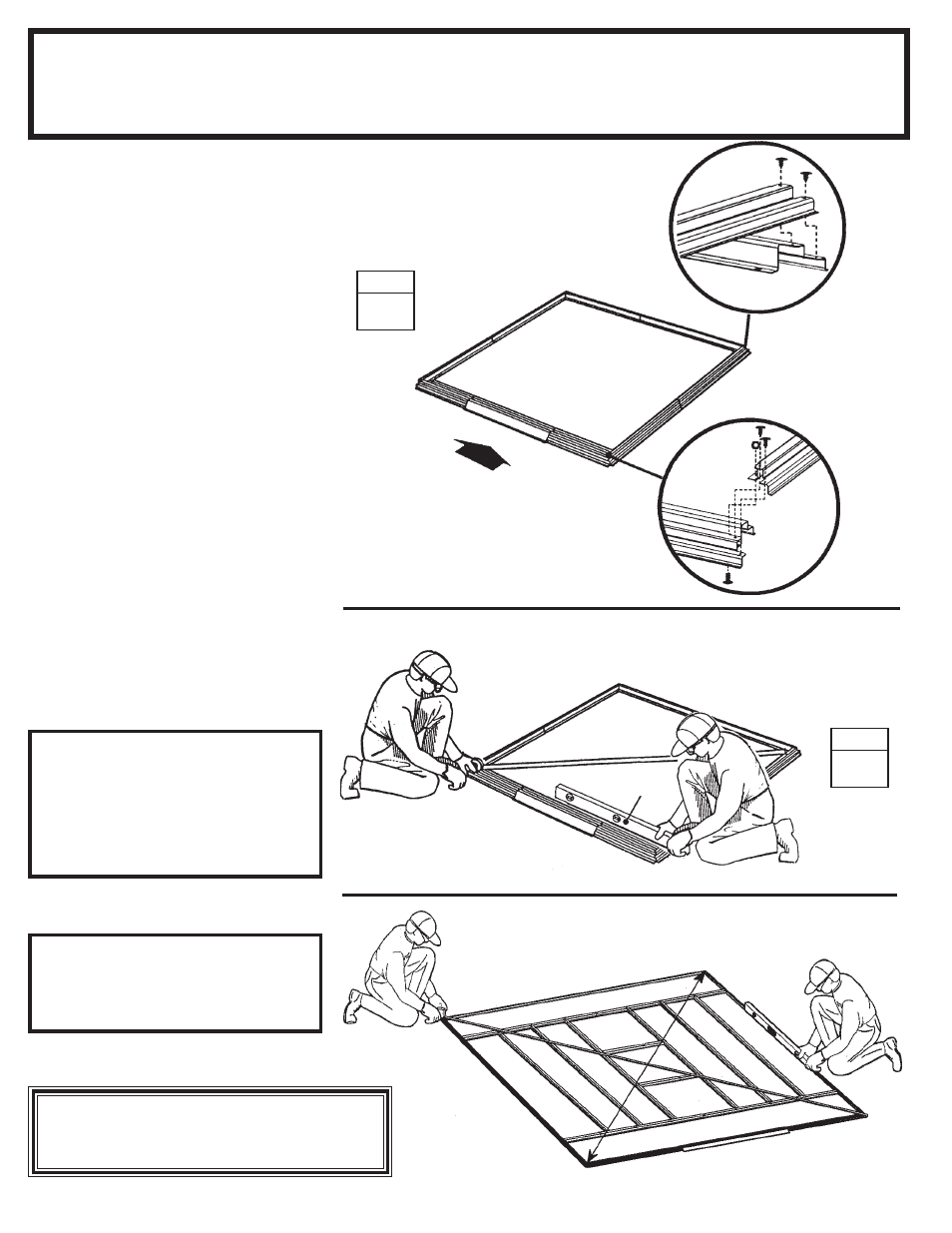

Assemble the four corners of the
floor frame using two screws at each
corner as shown. At the front corners
fasten bolts through from
the bottom with nuts on top.
2
Measure the floor frame diago-
nally. When the diagonal measure-
ments are equal, the floor frame is
square.
NOTE
If using a wood platform or
concrete slab do not fasten the
floor frames to your base at this
time. You will anchor the
building after it is erected.
NOTE
If you have purchased a Floor
Frame Kit you need to
install it at this time.
STEP
1
9203
RIGHT
REAR
8936
Level
9203
RIGHT
FRONT
9367
STEP
2
When Diagonal Measurements
are Equal the Floor Frame
is Square.
FRONT
