30
● ● ● ● ● 67731 Foam Board (2)
● ● ● ● ● 9934 Right Door (1)
● ● ● ● ● 9935 Left Door (1)
● ● ● ● ● 7667 Horizontal Door Brace (4)
● ● ● ● ● 8641 Vertical Door Brace (2)

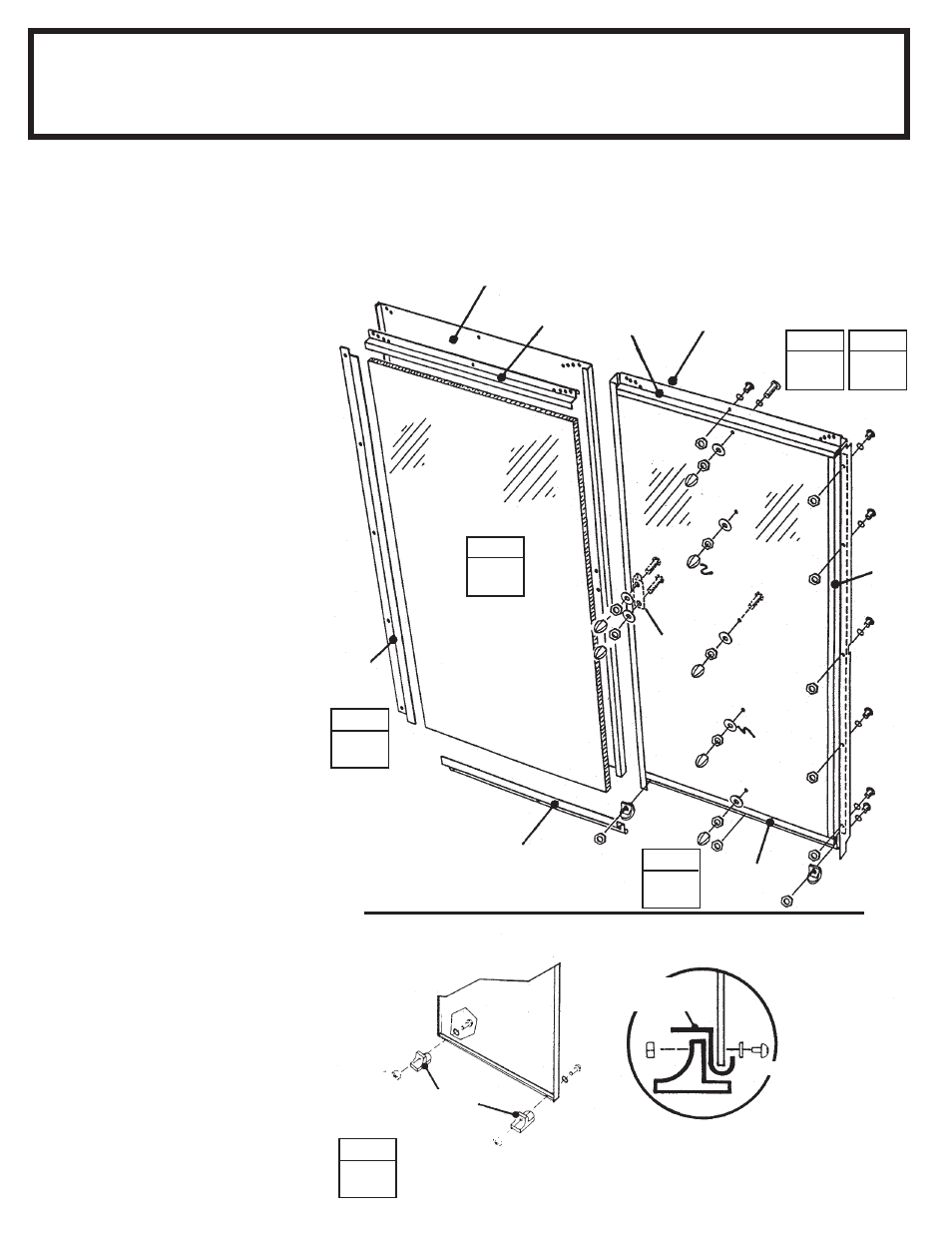

● Parts Needed For ●
Door Assembly
Step 17
Y30
The steps on this page tell how to
assemble the left door. You will per-
form exactly the same procedures for
the right door. Each bolt requires a
small washer on the outside of the
door. Proceed as follows:
1
Place foam board under the lip of
door.
2
Hold the vertical door brace
against the long edge of the foam
board inside the door and fasten to
door using 5 bolts and nuts.
3
Put a horizontal door brace onto
the top edge and bottom edge, cover-
ing edge of foam board, and fasten
with 1 bolt in the center.
4
Attach the lower door guides as
shown.
5
Push 7 holes through foam board
where shown, using an awl or nail.
6
Fasten center of door and install
handle using 7/8" bolts, door wash-
ers, hex nuts and acorn nuts.
7
Repeat steps 1 through 6 for the
right door.
9935 Left Door
9934 Right Door
STEP
1
STEP
STEP
3
67731
7667
66045
8641
66382
2
66382
END VIEW
SHOWING:
Horizontal
Door Brace
Door
Washer
Guide
STEP
4
8641
66382
7667
7667
Door Washer
7/8" Bolt
67731
7667
Acorn Nut
3/8" Bolt
Washer
STEP
5
STEP
6
