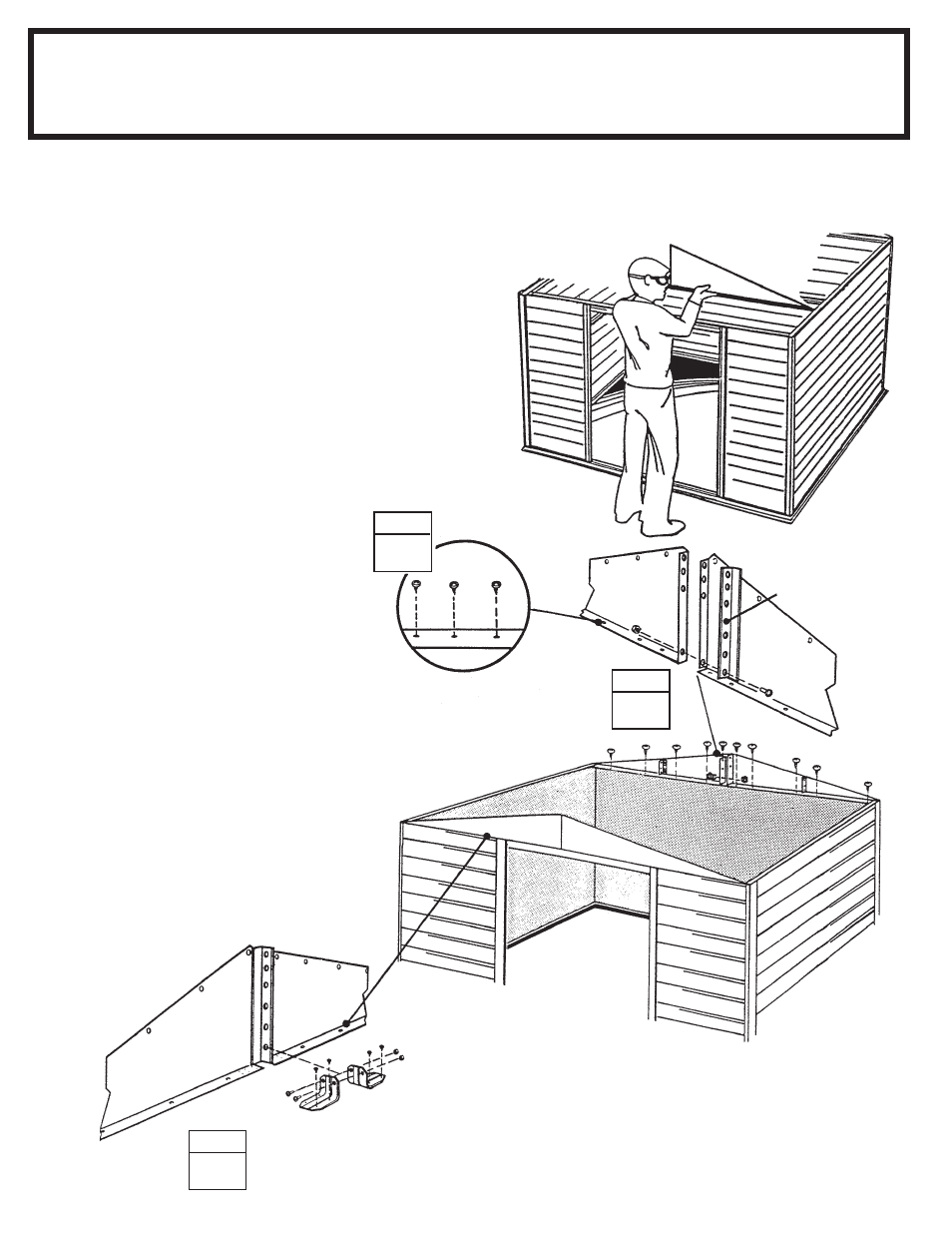

Lift and fasten a right and left
gable, under angle at corner, to the
rear wall angle with screws.
Hint: On the rear gable, use a bolt
and nut at the overlapping rear wall
angle. On the front gable, leave out 2
screws closest to center gable leg.
2
Join the left and right gables
together with a gable brace using a
bolt in the bottom hole
only .
3
Repeat Steps 1 & 2 for the door
track on the front of building, except
for the track supports, fasten as
shown.
● ● ● ● ● Left Gable Assemblies (2)
● ● ● ● ● Right Gable Assemblies (2)
● ● ● ● ● 6635 Gable Brace (2)
● Parts Needed For ●
Gables/Braces
Step 12
X25
25
STEP
2
STEP
3
STEP
1
6635 Gable Brace
6000
6001
Track Supports 6228
Gable
