16

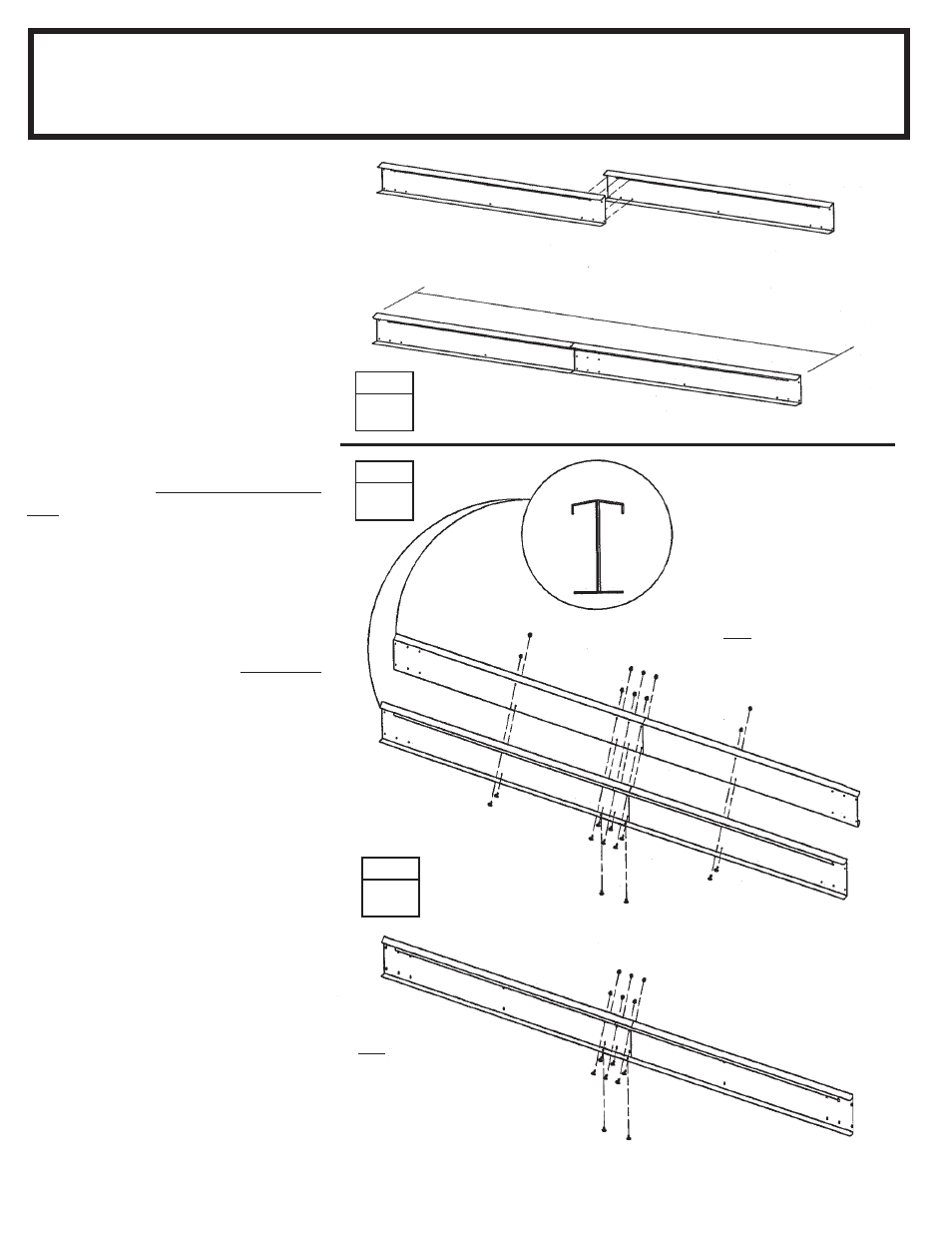

The roof beams join the two gables
and support the roof panels. The main
roof beam is made up of four pieces
overlapped back to back at the cen-
ter. The left and right roof beam as-
semblies are made up of two pieces.
Hint: These pieces are force-fitted,
so you may have to press hard to join
them together.
1
Place the end of one roof beam
inside a second roof beam so that the
six holes in each piece align. Make
four sets of roof beams by repeating
this procedure.
Do not insert bolts
yet.
2
Take two of the pressed-together
roof beams and join them as shown
to form the main roof beam assembly.
Hold the assembly together and fas-
ten with 14 bolts. Build
only one
Doubled Beam Assembly.
3
Fasten the other two pressed-
together roof beams with eight bolts
to make the left and right roof beam
assemblies.
4
Set these pieces aside for later
assembly.
Step 3
D16
● Parts Needed For ●
Roof Beam Assemblies
● ● ● ● ● 10470 Roof Beam (8)
10470
STEP
1
Roof Beam 91 7/8" 2,3m
Build one Doubled Main Roof
Beam Assembly for Peak in Roof
END
VIEW
10470
Build two Single Beam Assemblies
STEP
2
STEP
3
10470
10470
10470
10470
ASSEMBLED
91 7/8"
2,3m
91 7/8"
2,3m
