27
Step 14
Y27
● Parts Needed For ●
Right Roof Panel
● ● ● ● ● 8468 Right Roof Panel (1)
Installing the roof panels is best done
with a step ladder. Begin installing
roof panels at the back right corner of
the building. Each screw and bolt in
the roof requires a washer.
NOTE
Measure the building diagonally
again and make adjustments to
make sure the building is square
and level. This will make the roof
panels fit better, and holes will
align.
NOTE
If a Roof Beef-Up Kit was
purchased, assemble prior to
attaching the roof panels.
1
Locate the roof panels by their
numbers. Note the sequence and
position they are to be installed.
2

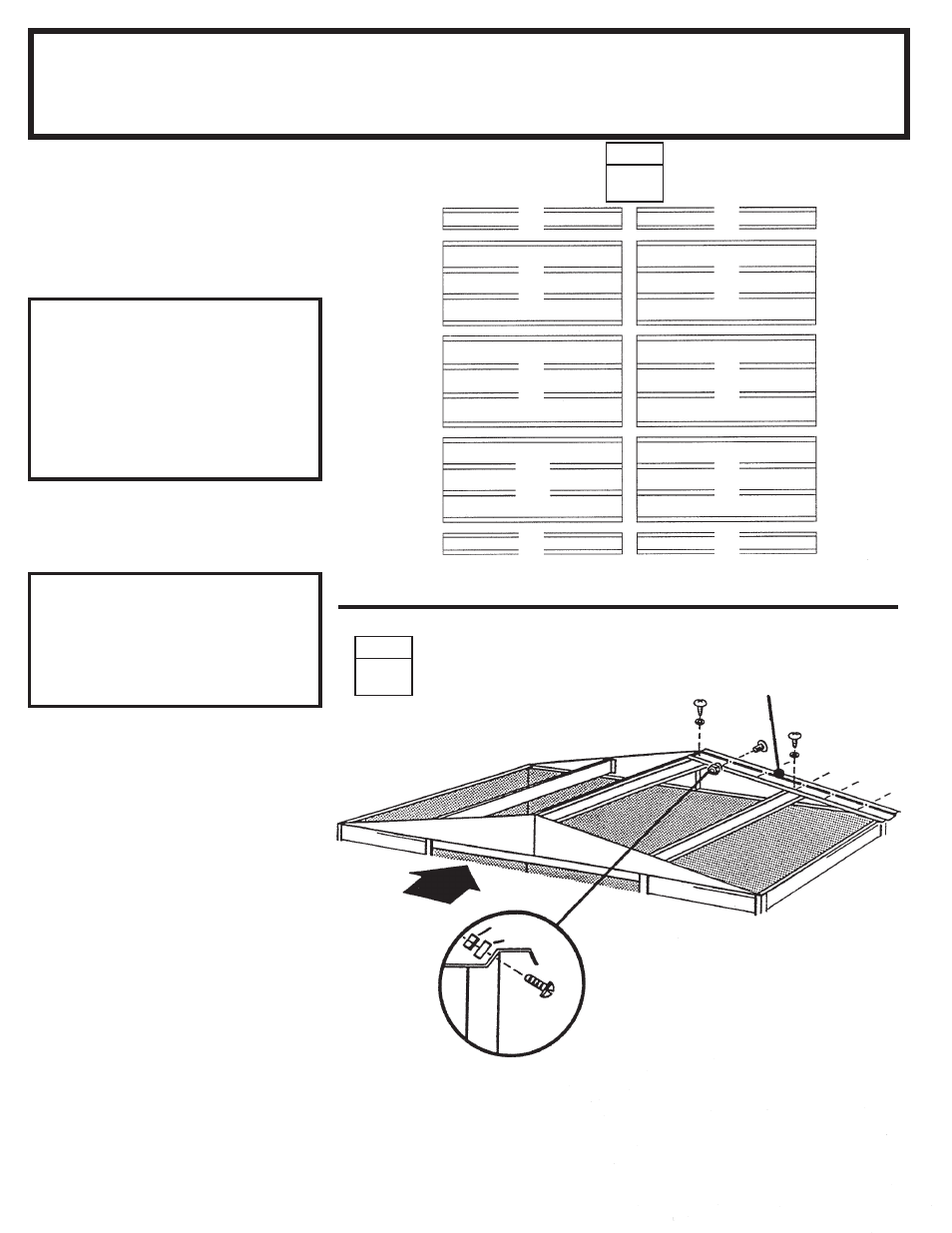

Position the right roof panel at the
back right corner and fasten to the
gable with 5 bolts and nuts and roof
beams using 2 screws.
Do not fasten
the lower end of the panel to the side
wall angle at this time.
Hint: Attach fasteners in order shown
in diagram.
8468 Right Roof Panel
FRONT
Washer
Bolt
Gable
STEP
2
STEP
1
Nut
1
2
3
4
5
6
7
8469
8
6
2
4
1
5
7
3
FRONT
10 9
8469
7483
7483 7483
7483
6529 6529
8468
8468
