Each screw in the wall requires a
washer.
1

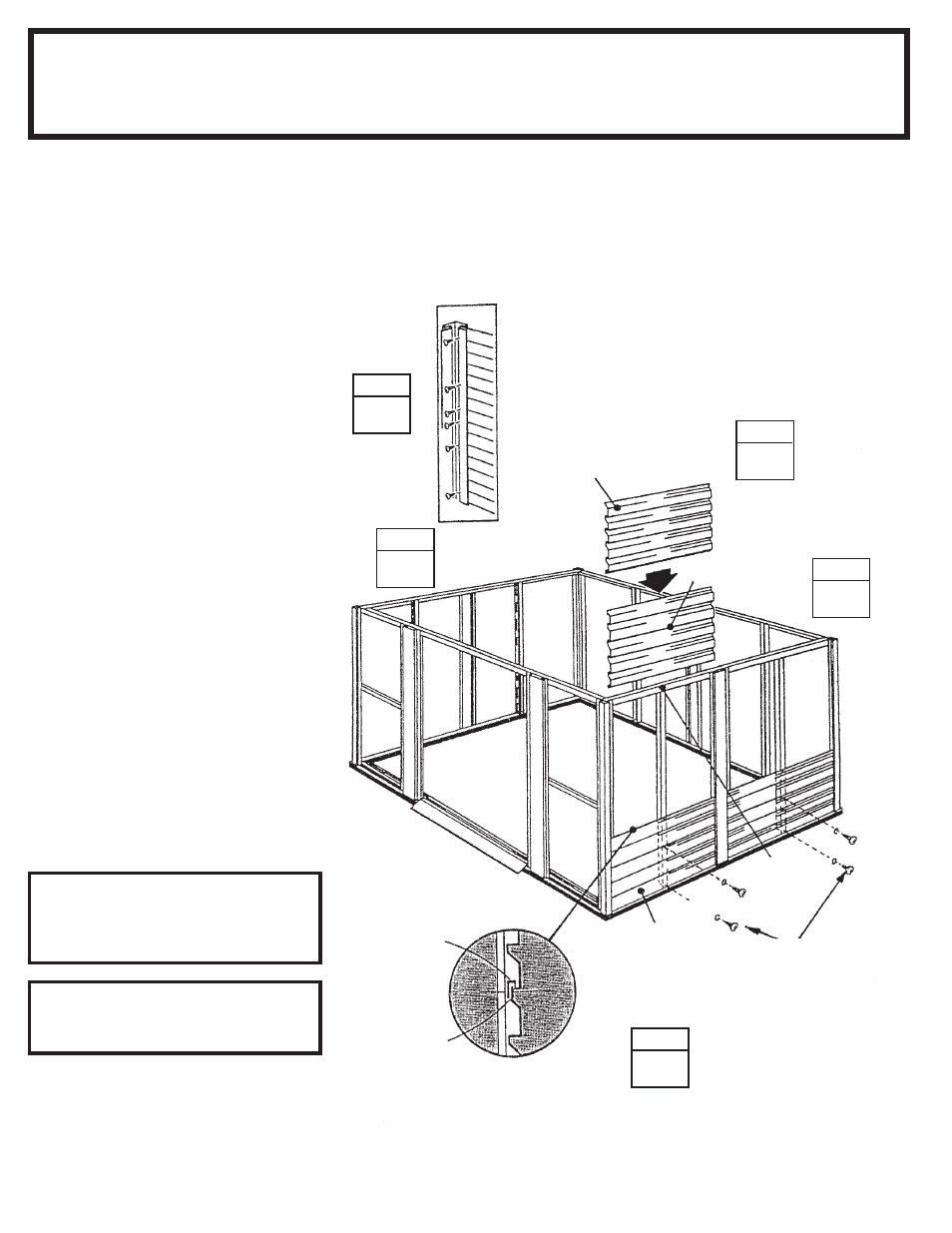

Slide side siding into channels
of corner and splice posts, flat edge
upward, bottom edge down resting
on floor frame. Always follow this
pattern. Fasten bottom edge and tab
of stud to floor frame using screws.
Fasten center to stud with screws.
Do not fasten flat edge yet.
2
Install side siding as before. Note
how the slot in bottom edge must
overlap flat edge of last siding.
Fasten both siding panels to stud at
this overlap.
3
Install side siding to the top as
before.
4
From inside building, fasten siding
to corner posts and splice post using
screws.
5
Repeat steps 1 through 4 for oppo-
site side of building.
NOTE
Be careful to install the correct
panel in each position as shown.
The floor frame must be square
and level or holes will not align.
● ● ● ● ● 8584 Side Siding (12)
● Parts Needed For ●
Side Siding
Step 9
Y22
22
THIS SCREW MUST
FASTEN TAB OF STUD
STEP
2
STEP
3
Be certain all Siding
overlaps are fastened
with a single screw
Washer
8584
8584
End
View
Flat
Edge
Bottom
Edge
FRONT
STEP
1
STEP
4
8584
Fasten
At Upper
Hole
STEP
5
