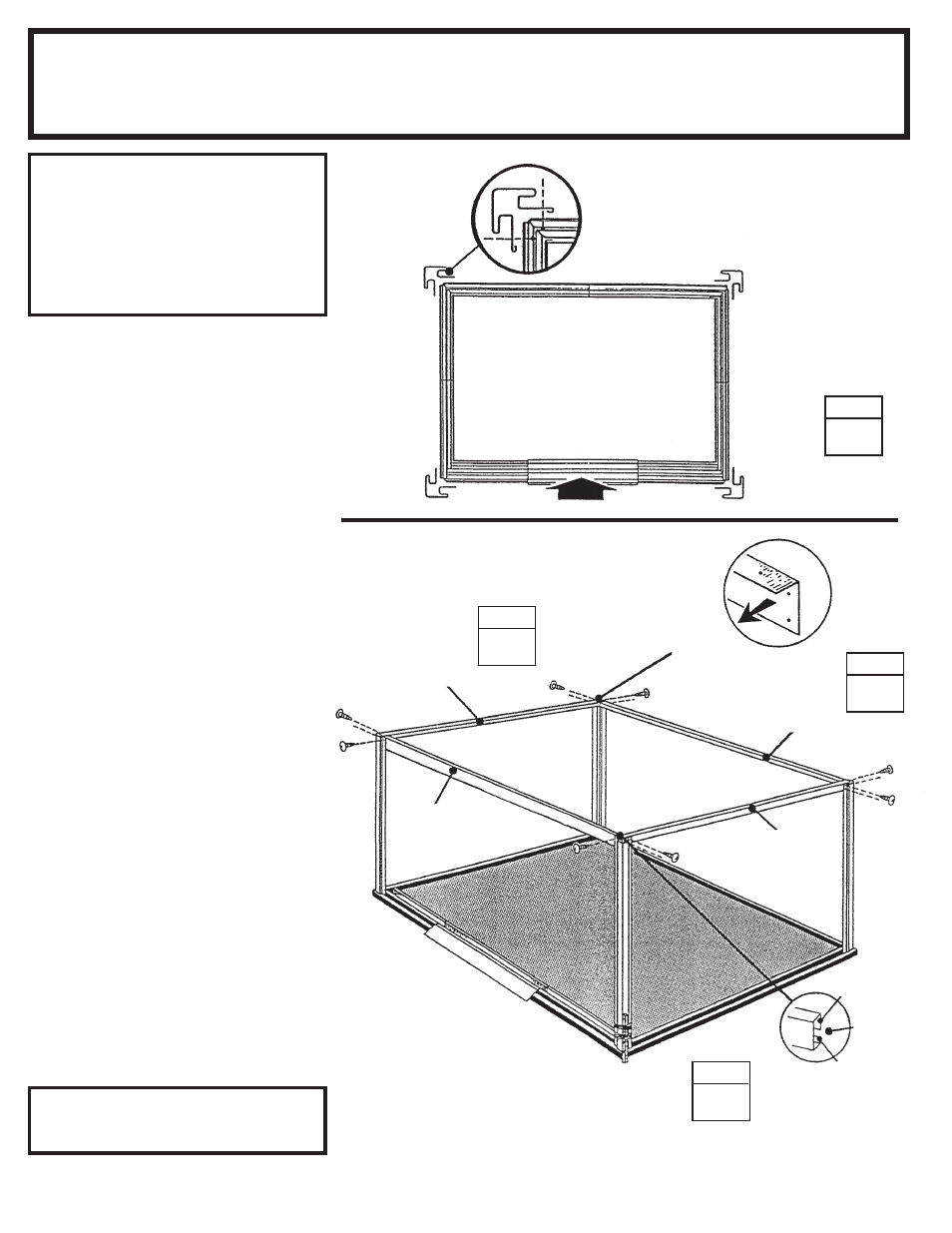

Position corner posts at the cor-
ner of the floor frame as shown. Fas-
ten the corner post to the floor frame
with two screws.
Support the corner posts with stakes
or other devices until door jambs are
attached.
2
Fasten the door track assembly
(holes on top) behind the top of the
front corner posts using 1 screw in
each corner. See the figure.
3
Fasten the rear wall angle as-
sembly behind the top of the rear
posts using 2 screws in each post.
● ● ● ● ● 5288 Corner Post (4)
● ● ● ● ● Door Track Assembly (1)
● ● ● ● ● Rear Wall Angle Assembly (1)
● ● ● ● ● Side Wall Angle Assembly (2)
Step 6
Y19
● Parts Needed For ●
Posts/Top Frames
NOTE
The remainder of the building assembly
requires many hours and more than one
person. Do not continue beyond this point
if you do not have enough time to com-
plete the assembly today. A partially
assembled building can be severely
damaged by light winds.
The top frame pieces give rigidity to
the side walls and provide a surface
for attaching the gables which sup-
port the roof.
4
Fasten the side wall angles be-
hind the top of the side posts using 2
screws in each corner. Side wall
angles overlap rear wall angle in cor-
ners.
The floor frame must be square
and level or holes will not align.
19
STEP
1
5288
STEP
3
STEP
2
STEP
4
5288
5288
5288
Short Leg
on Top
REAR
FRONT
SIDE SIDE
Side Wall
Angle Assembly
9366
Wall Angles
Must Face
Inside
Building
Rear Wall
Angle Assembly
Long Leg
On Top
Short Leg
on Bottom
Left
Opening
Facing In
FRONT
Right
Door Track Assem
bly
Side Wall
Angle Assembly
TOP VIEW
Right
Left
Right
Left
