Magnum VS –48 Vdc User Manual Page 18

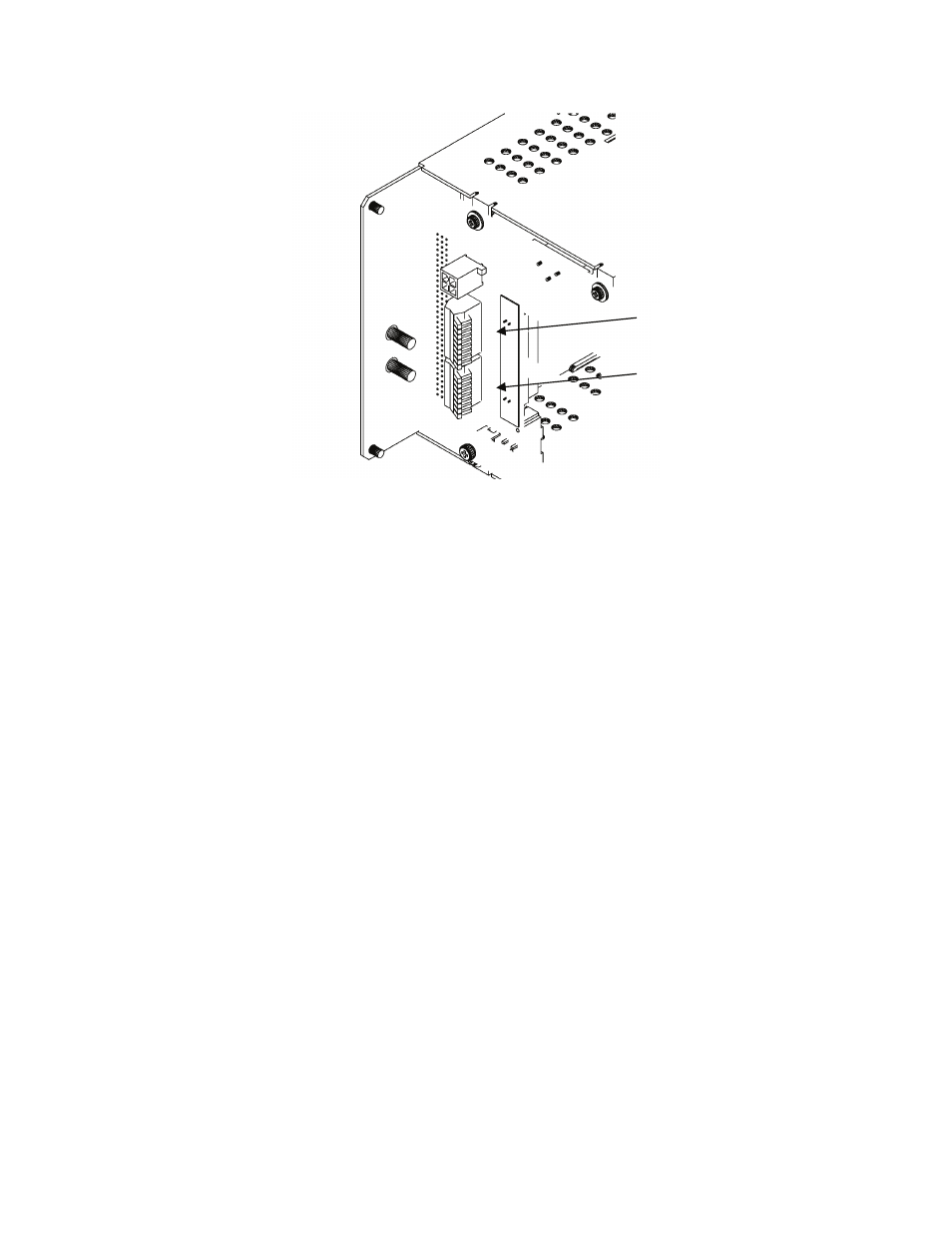

Figure 2.9-1 Interface Connections
Output Relay 2-6 Connections
Output Relays 2 through 6 are virtual relays and are not available for physical connection by the user. The small
size of this unit limits the number of relays that can be placed in the system. These output relays are supported by
the controller and reported by the network management card. Any alarm condition can be programmed to map to
one of these relays. The alarm will activate the relay, illuminate the front panel Out Relay LED, and send the relay
output message to the network management card.
Output Relays
(J411)
User Inputs
(J412)
