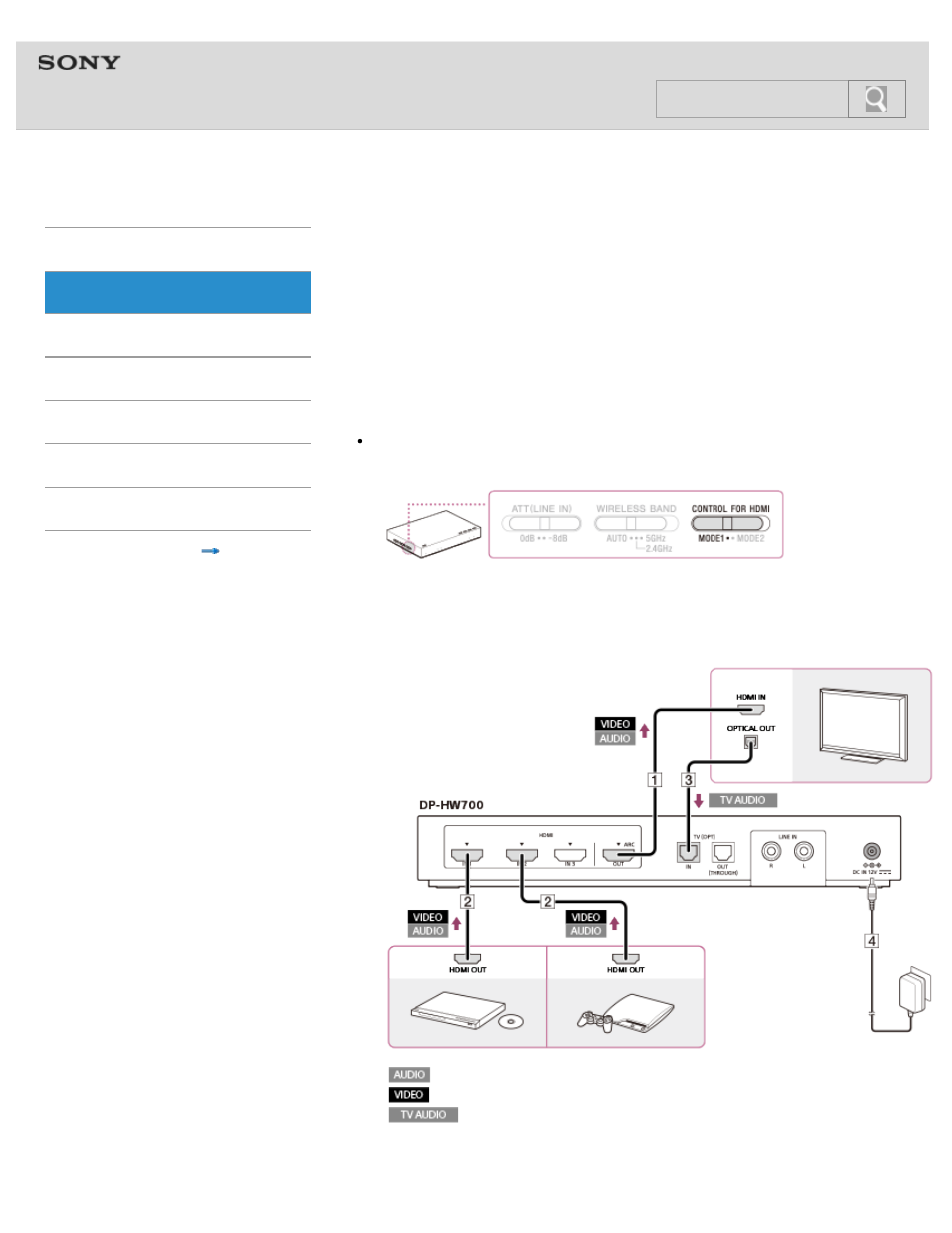

Connection example 2: Connecting the processor with
devices without using an AV amplifier (TV not equipped
with ARC)
The Control for HDMI function of the processor works most effectively with this connection.
When you connect an AV amplifier, a theater rack, a sound bar with HDMI jacks, etc., see
Connection example 3: Connecting the processor with devices via an AV amplifier (ARC
equipped TV)
or Connection example 4: Connecting the processor with devices via an AV
amplifier (TV not equipped with ARC) .
Tip
What is ARC? [Details]
1.
Set the CONTROL FOR HDMI switch to “MODE1” (default setting).
2.
Connect a TV, a BD/DVD device and/or a game device to the jacks on the rear of the
DP-HW700 processor.
If the devices are connected to the TV, disconnect them from the TV, and connect
them to the processor.
: audio signal
: video signal
: audio signal of TV
HDMI IN: HDMI input
HDMI OUT: HDMI output
