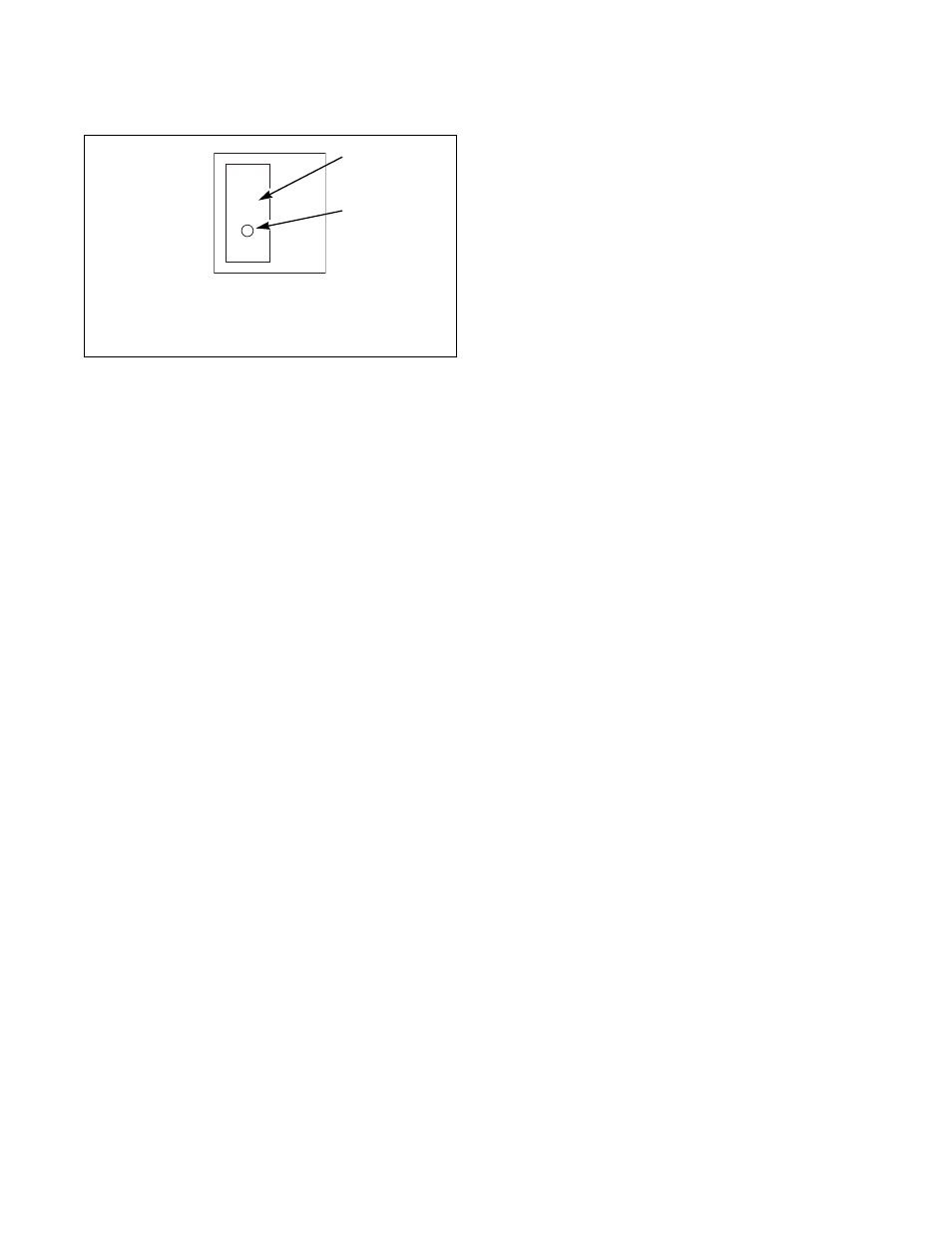

Out-of-Balance Switch
Figure 17
The out-of-balance switch is mounted on the upper
right side on the back of the control panel. There is a
window around the probe of the switch that is mounted
on the movable part of the machine.
When the machine goes out of balance by overloading
or uneven distribution of the linen, the out-of-balance
switch will interrupt this action to prevent damage to
the machine.
IMPORTANT: To guarantee good functioning, the
probe should be centered horizontally and
vertically at 1/3 from the bottom of the tilt window
(when machine drum is empty).
CFS501N
1 Window
2 Probe
1
2
