Removing the Transport Block
To prevent damage during transportation, machine has
been equipped with a transport block. To remove,
proceed as follows:
1. Place machine on level ground.
2. Remove service panels and back panel.
3. For 18 and 30 models, at rear of machine, lift at
bottom of motor and remove transport block if
present. Refer to Figure 12.

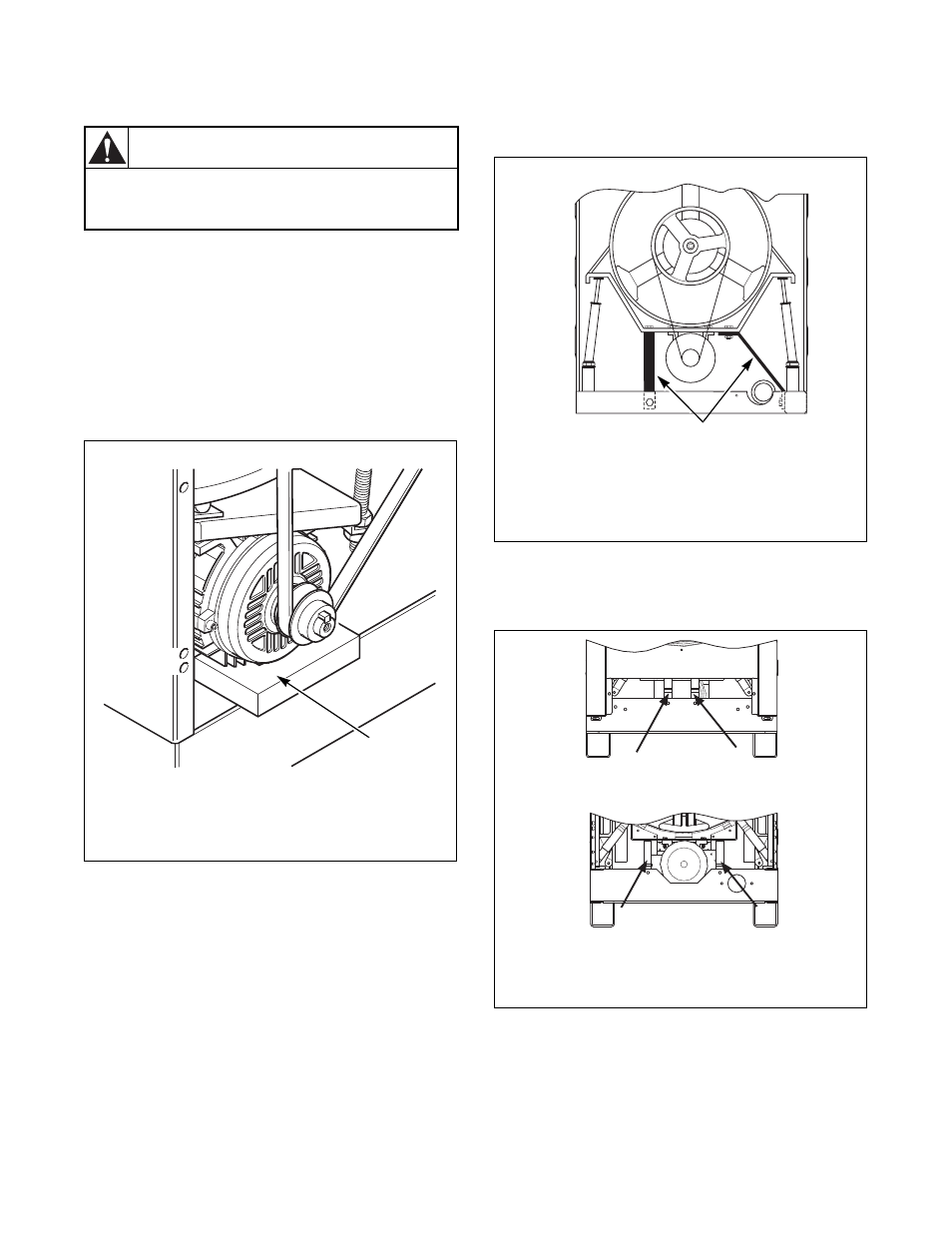

Figure 12
IMPORTANT: Do NOT lift motor by the pulley.
4. For 18 and 30 models, remove the panel braces.
Figure 13
5. For 33 and 40 models, remove the transport
Figure 14
6. Replace all panels removed.
CFD26N
1
Transport Block (Remove)
The machine must never be activated
before removing the transport block.
W618
WARNING
CFD26N
1
18 AND 30 MODELS
CFD34N
1
Panel Braces
CFD543N
1
Transport Brackets
CFD34N
1
18 AND 30 MODELS
1
FRONT
REAR
33 AND 40 MODELS
1
1
1
