Installation

9001909

20

Mounting Bolt Installation
(If Required)

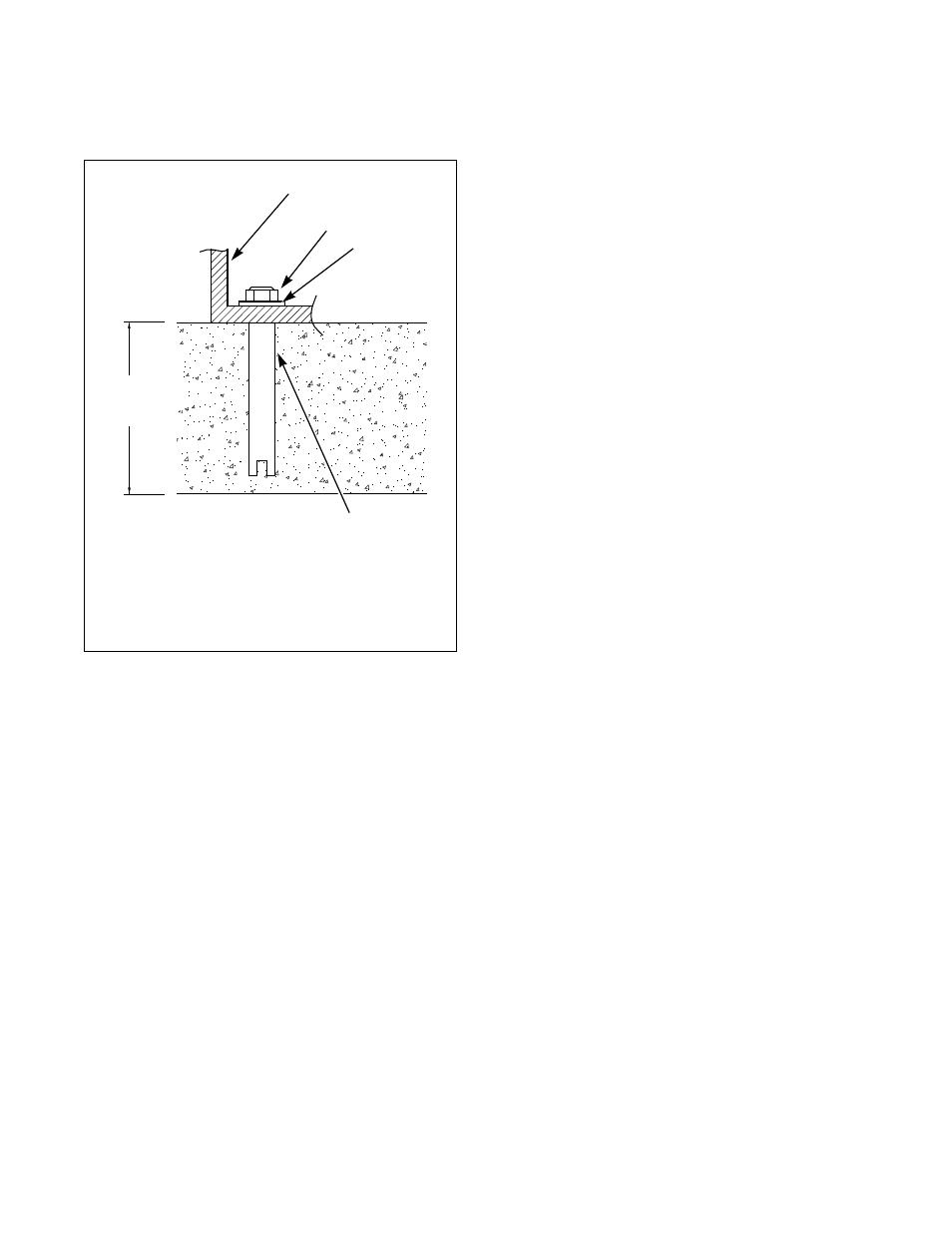

Figure 11

After the concrete has cured and the anchors are
installed, proceed as follows:

1. Place the washer-extractor adjacent to the

foundation. Do not attempt to move it by pushing
on the sides. Always insert a pry bar or other
device under the bottom of the frame of the
washer-extractor to move it.

2. Place the washer-extractor carefully over the

anchors.

3. Put bolts through the machine in the anchors and

fasten them. For 18 and 30 models, the diameter
of the bolt must be minimum 1/2-13 or 12 mm.
For 33 and 40 models, the diameter of the bolt
must be minimum 5/8-11 or 16 mm.

4. To level machine, fill the spaces between the

machine base and floor with machinery grout.
Grout completely under all frame members.
Remove front and rear panels to gain access to all
frame members. Force grout under the machine
base until all voids are filled.

5. Remove the spacers carefully, allowing the

machine to settle into the wet grout.

6. Position washers and locknuts on machinery

anchor bolts and fingertighten to machine base.

7. After the grout is completely dry, tighten the

locknuts by even increments – one after the
other – until all are tightened evenly and the
machine is fastened securely to the floor.

CFS485N

1

Base Frame

2

Bolt

3

Washer

4

Anchor Bolt/Plug

CFS485N

6 in.

(152 mm)

1

2

4

3
