PCM-9587 User Manual
62

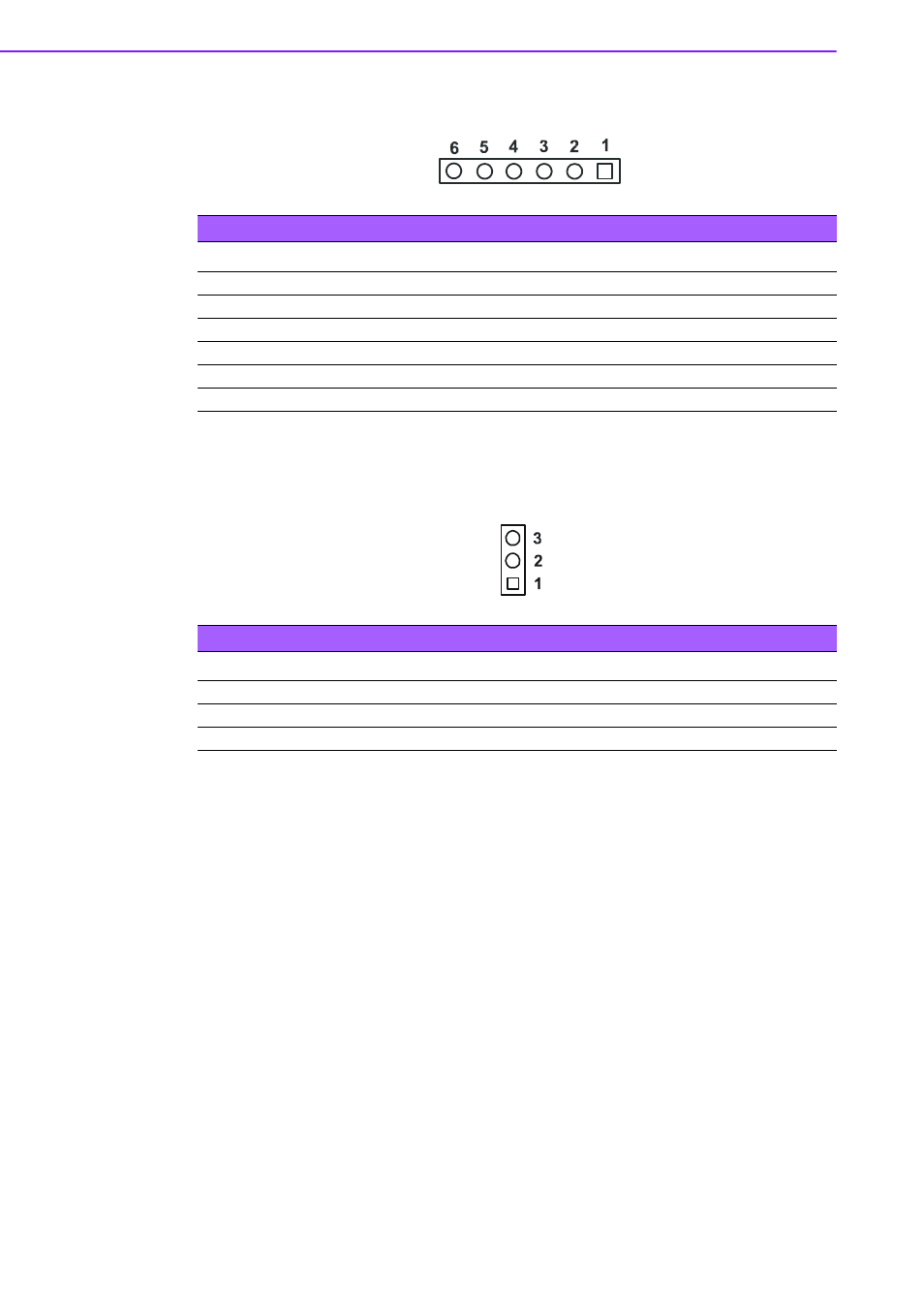

B.25
Keyboard and PS/2 Mouse Connector (CN27)
B.26
CPU FAN Connector (wafer
box)(Optional)(CN28)
Table B.25: Keyboard and Mouse Connector (CN27)
Pin
Signal
1
KB CLOCK
2
KB DATA
3
MS CLOCK
4
GND
5
+5V
6
MS DATA
Table B.26: CPU FAN Connector (wafer box)(Optional)(CN28)
Pin
Signal
1
Detection
2
VCC 5V
3
GND
