PCM-9587 User Manual
Appendix B
P
in Assignments
B.4
Audio Output Connector (CN4)
B.5
Power input Connector (CN5)
B.6
-12V and -5V Connector (CN6)

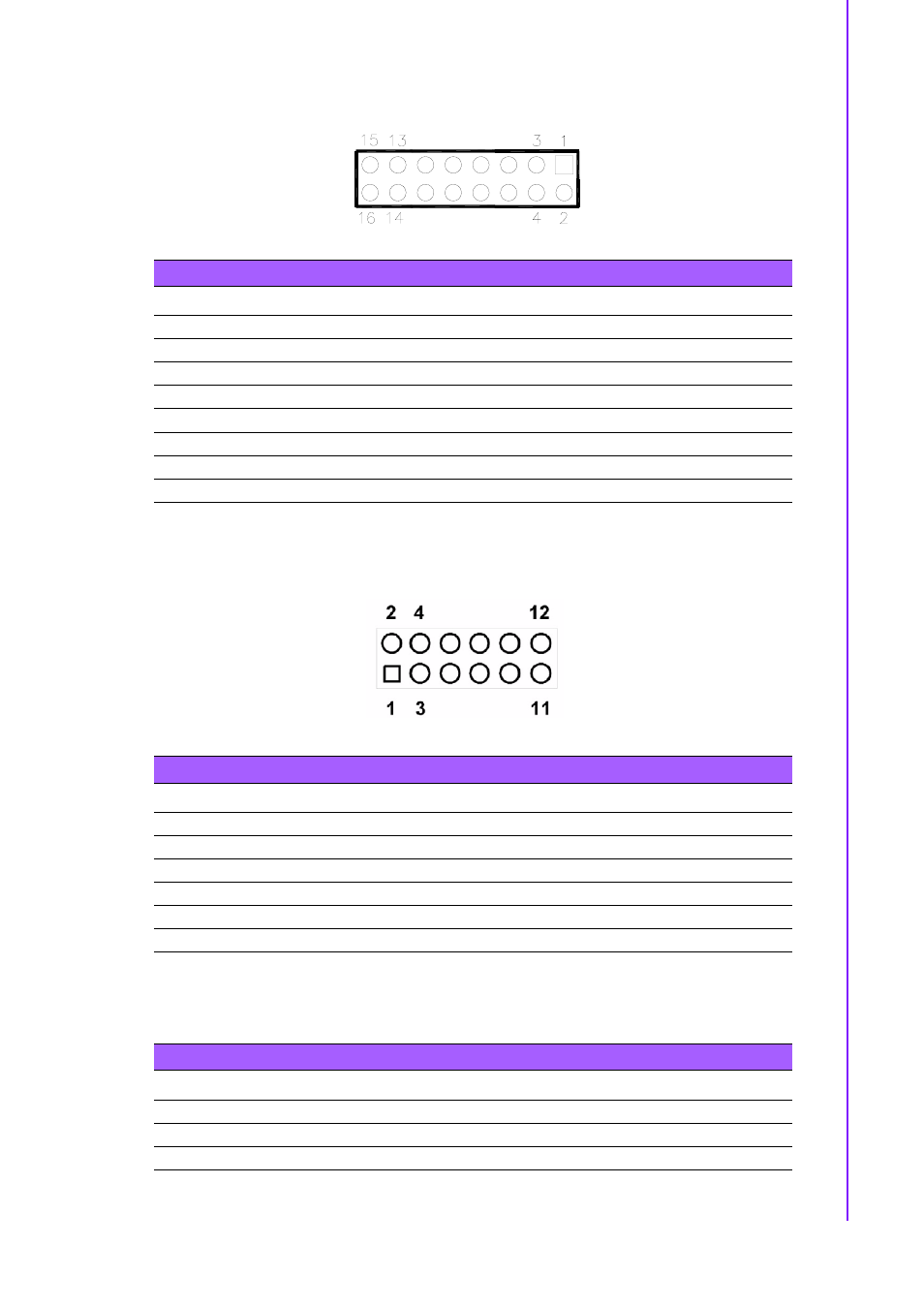

Table B.4: Audio Output Connector (CN4)
Pin
Signal
Pin
Signal
1
SPK_R+
2
SPK_R-
3
SPK_L+
4
SPK_L-
5
LOUT_R
6
LOUT_L
7
A_GND 8
A_GND
9
LIN_R
10
LIN_L
11
A_GND
12
A_GND
13
NC
14
MIC_L
15
MIC_R
16
A_GND
Table B.5: Power input Connector (CN5)
Pin
Signal
Pin
Signal
1
GND
2
GND
3
VCC
4
GND
5
VCC
6
5VSB
7
GND 8
PSON#
9
VCC
10
GND
11
VCC
12
+12V
Table B.6: -12V and -5V Connector (CN6)
Pin
Signal
1
-5V
2
GND
3
-12V
