55
PCM-9587 User Manual
Appendix B
P
in Assignments
B.9
DVI Connector (CN9)
B.10
Gigabit LAN Connector (CN10 Optional)
B.11
10/100M LAN Connector (CN11)

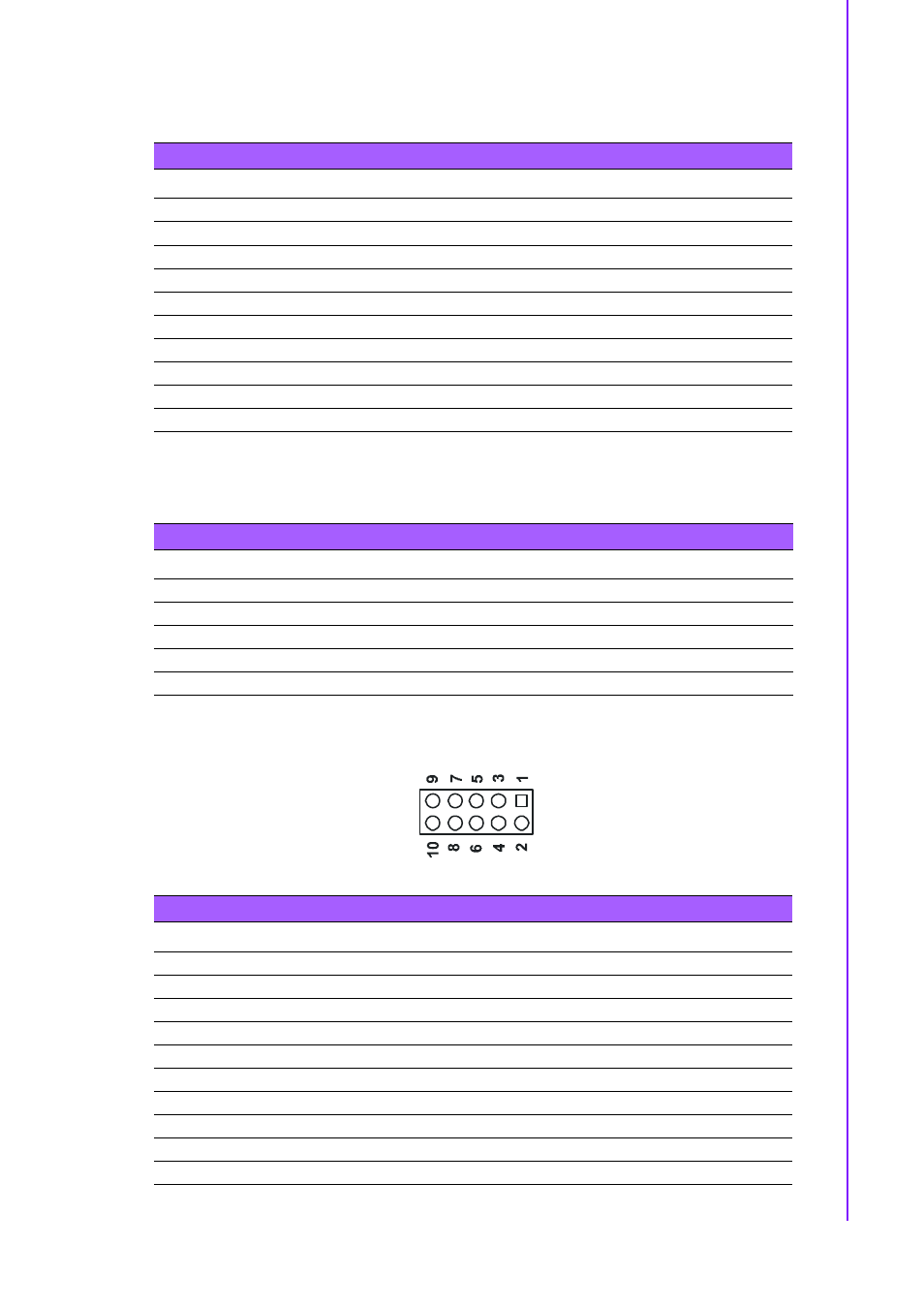

Table B.9: DVI Connector (CN9)
Pin
Signal
Pin
Signal
1
C0#
2
VCC_DVI
3
C0
4
CK#
5
GND
6
CK
7
C1#
8
GND
9
C1
10
DVI_CLK
11
GND
12
DVI_DATA
13
C2#
14
HP_DET
15
C2
16
MI2C_DATA
17
VCC_DVI
18
MI2C_CLK
19
NC
20
NC
Table B.10: Gigabit LAN Connector (CN10)
Pin
Signal
Pin
Signal
1
NC
2
NC
3
RJ45_7
4
RJ45_8
5
RJ45_4
6
RJ45_5
7
RJ45_3
8
RJ45_6
9
RJ45_1
10
RJ45_2
Table B.11: 10/100M LAN Connector (CN11)
Pin
Signal
1
VCC_LAN
2
ACTLED
3
RX+
4
RX-
5
LILED
6
GND
7
NC
8
GND
9
TX+
10
TX-
